DvLED panel, Unite 5000, 600x337.5mm, P1.2

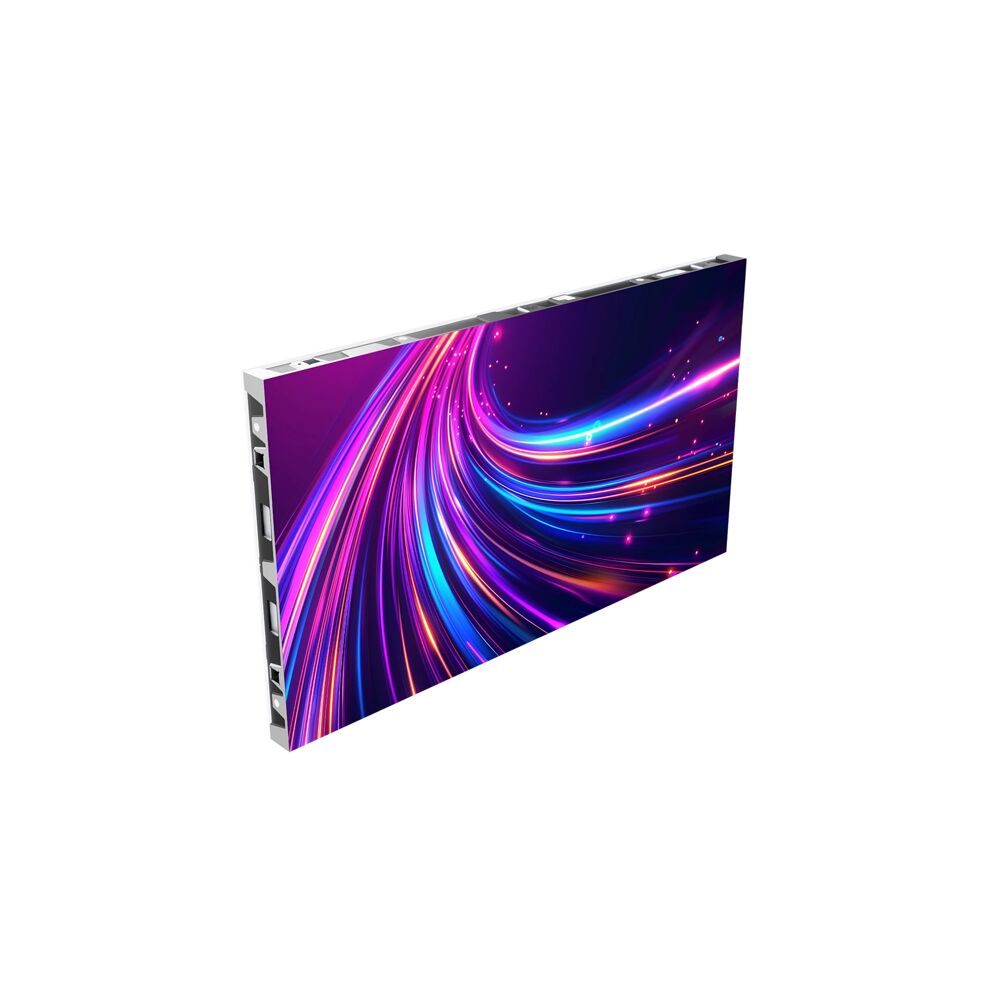

The Philips LED Unite 5000 Series 27HDL5112IP/00 is an indoor DvLED cabinet designed for modular videowall installations. Its 600 x 337.5 mm display area combines a 1.25 mm pixel pitch with COB 1R1G1B Flip Chip LEDs, delivering 480 x 270 resolution and 129,600 pixels per cabinet. A die-cast construction, 33.6 mm cabinet depth and 4.7 ± 0.2 kg weight support practical integration while maintaining the series focus on quality, reliability and efficiency.

Ideal Use Cases

This model is intended for indoor LED videowalls that require a fine pixel pitch, consistent brightness and broad visibility. Its 600-nit brightness, typical 5000:1 contrast ratio and 160-degree horizontal and vertical viewing angles support content visibility across a wide viewing area. The 16:9 cabinet proportions make the panel suitable for scalable display configurations assembled from multiple cabinets. Colour and brightness calibration also helps installers coordinate cabinets within a unified display surface.

Why Choose This Model

The 27HDL5112IP/00 combines COB LED technology with a 1R1G1B Flip Chip pixel constitution and common-cathode pole type. Each cabinet provides 480 x 270 pixels at a 1.25 mm pitch, while brightness uniformity is specified at 97% or greater. The panel also offers a 3840 Hz refresh rate, 13-bit depth and an adjustable colour-temperature range of 3000 to 10000 K. Its default colour temperature is 6500 K ± 500 K, giving integrators a defined starting point with software-based adjustment available for different display requirements.

Installation and Integration

The cabinet measures 600 x 337.5 x 33.6 mm and occupies 0.2052 m². Its 27.1-inch diagonal and die-cast construction are paired with a cabinet weight of 4.7 ± 0.2 kg. Data connectivity uses RJ45, while power is delivered through a 3-pin connector. One Novastar A8S-N receiving card is specified per cabinet, and up to 16 cabinets can be connected in a power daisy chain.

The panel accepts AC 100-240 V input. Supplied installation items include 22 mm Hex M6 screws, 75 cm and 15 cm RJ45 LAN cables, and a Quick Start Guide printed on the carton. Each LED module measures 150 x 168.75 mm and has a 120 x 135-pixel resolution. Operating conditions are specified at 10-45 °C and 10%-90% relative humidity.

Performance Highlights

The display produces 600-nit brightness with a typical 5000:1 contrast ratio. Brightness uniformity is rated at 97% or greater, and both horizontal and vertical viewing angles reach 160 degrees. The 3840 Hz refresh rate is complemented by a 50-60 Hz frame frequency. Colour temperature can be adjusted from 3000 to 10000 K, and the panel supports both colour and brightness calibration.

Typical cabinet power consumption is less than 30 W under the listed AC measurement, with maximum cabinet consumption below 59 W AC. Maximum cabinet consumption under the listed BC measurement is below 75 W, while black-screen consumption is below 16.7 W. Black-screen power saving is supported. Per-square-meter consumption is specified at 303.75 W AC and 371.5 W BC.

What Makes It Different

The Unite 5000 Series is positioned as an investment-friendly range built around Flip Chip COB panels. In this model, that platform is paired with a fine 1.25 mm pitch, 13-bit depth, software-adjustable colour temperature and cabinet-level colour and brightness calibration. The COB LED system is rated for 100,000 hours to half brightness. A 36-month warranty accompanies the panel, and listed regulatory approvals include CCC, CE, ETL, FCC, SASO, UKCA and RoHS.

Final Assessment

The 27HDL5112IP/00 brings together a compact 600 x 337.5 mm cabinet, 480 x 270 resolution, 600-nit output and a 3840 Hz refresh rate for indoor modular DvLED installations. Its RJ45 data connection, Novastar receiving card, power daisy-chain capability and calibration support provide clearly defined integration features, while the Flip Chip COB design, black-screen power saving and 100,000-hour half-brightness rating address long-term operation.
