DvLED panel, Unite 5000, 600x337.5mm, P1.8

Ideal Use Cases

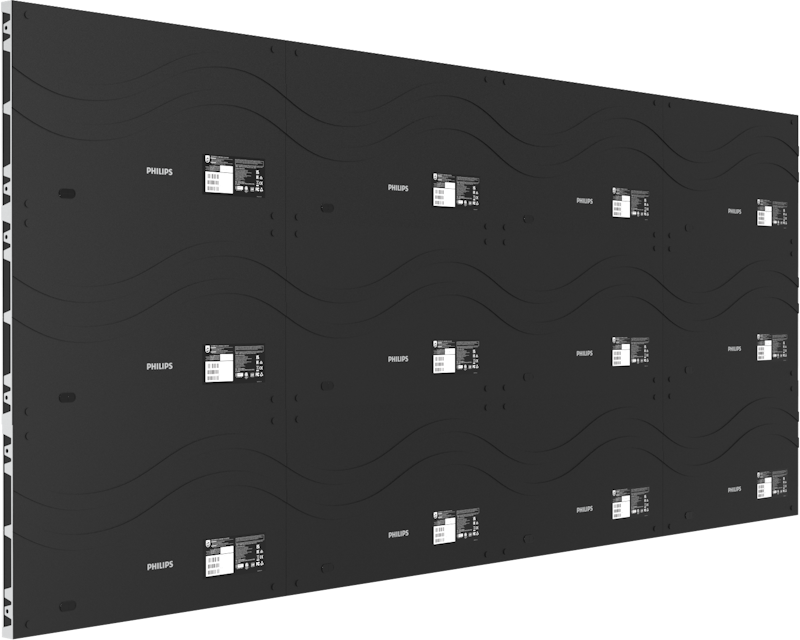

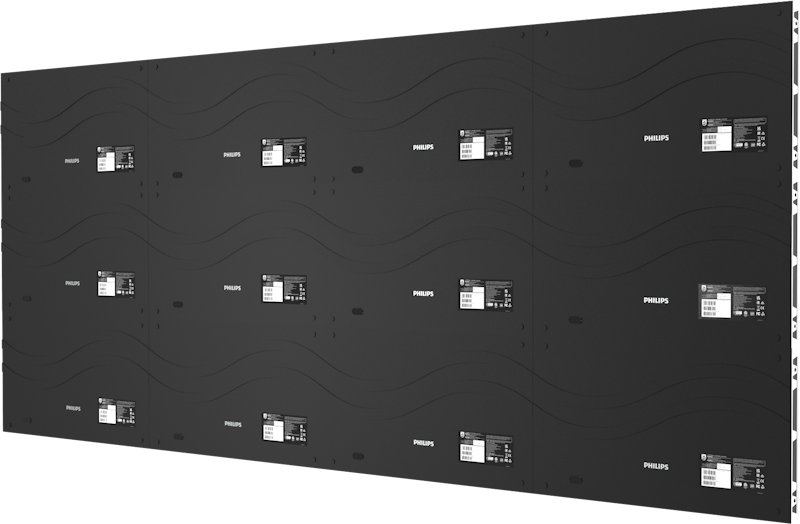

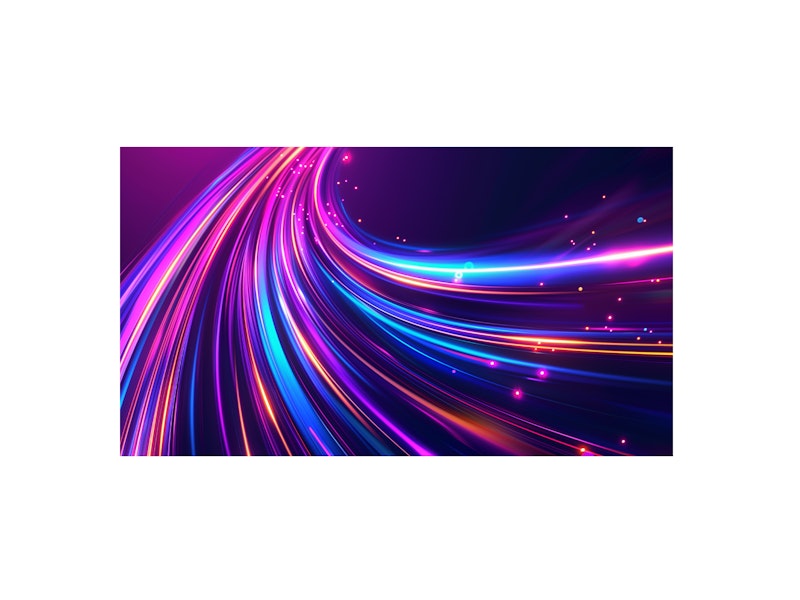

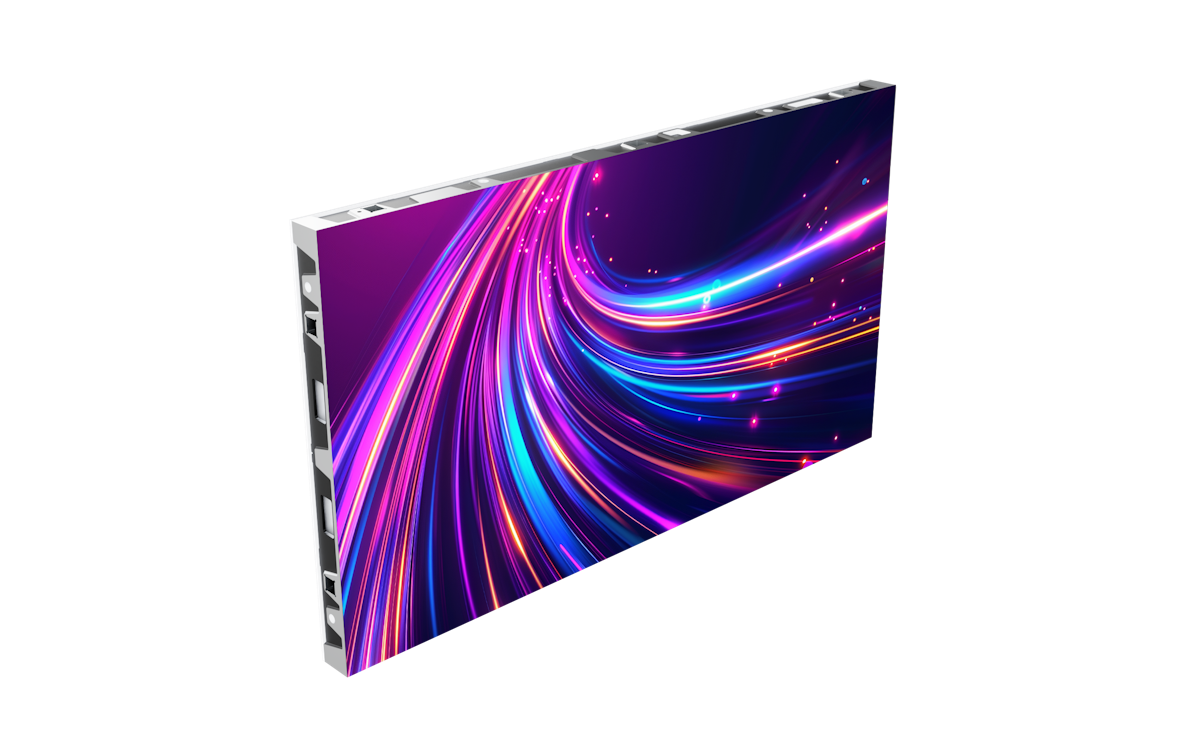

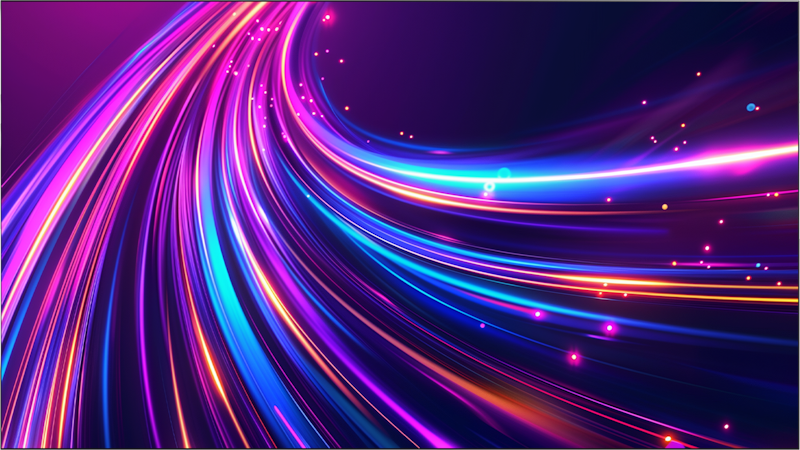

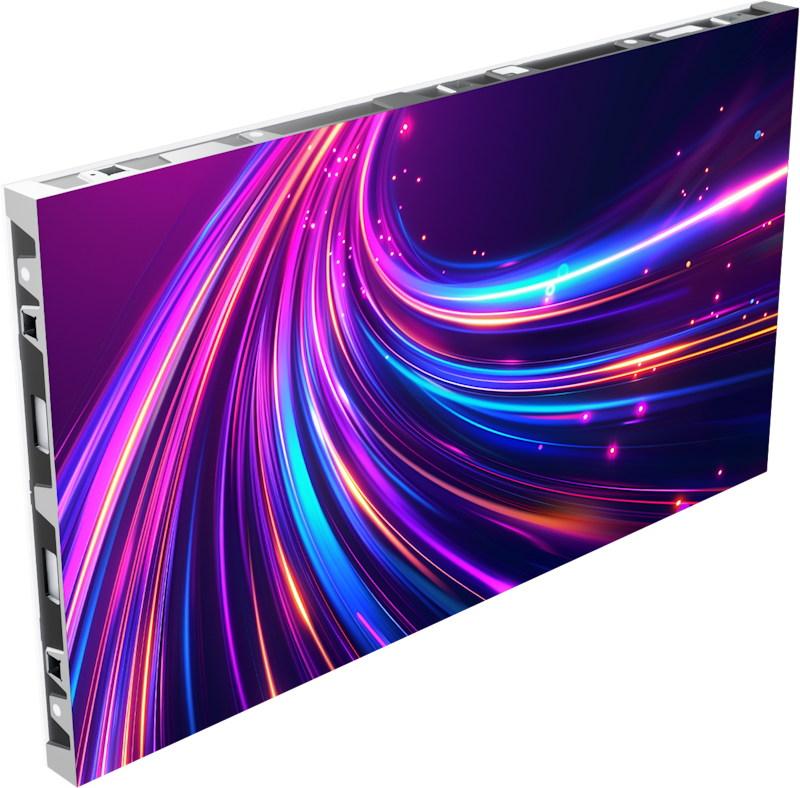

The PPDS Unite 5000 27HDL5118IP/00 is an indoor direct-view LED panel for videowall installations requiring compact cabinet dimensions and fine pixel spacing. Its 600 x 337.5 mm display area follows a 16:9 geometry, while the 1.875 mm pixel pitch provides a cabinet resolution of 320 x 180 pixels, or 57,600 pixels per panel. A 600-nit brightness rating, 5000:1 typical contrast ratio and 160-degree horizontal and vertical viewing angle make it suited to indoor environments where images need to remain visible across a broad viewing area. The specified operating range is 10–45 degrees Celsius and 10%–90% relative humidity.

Why Choose This Model

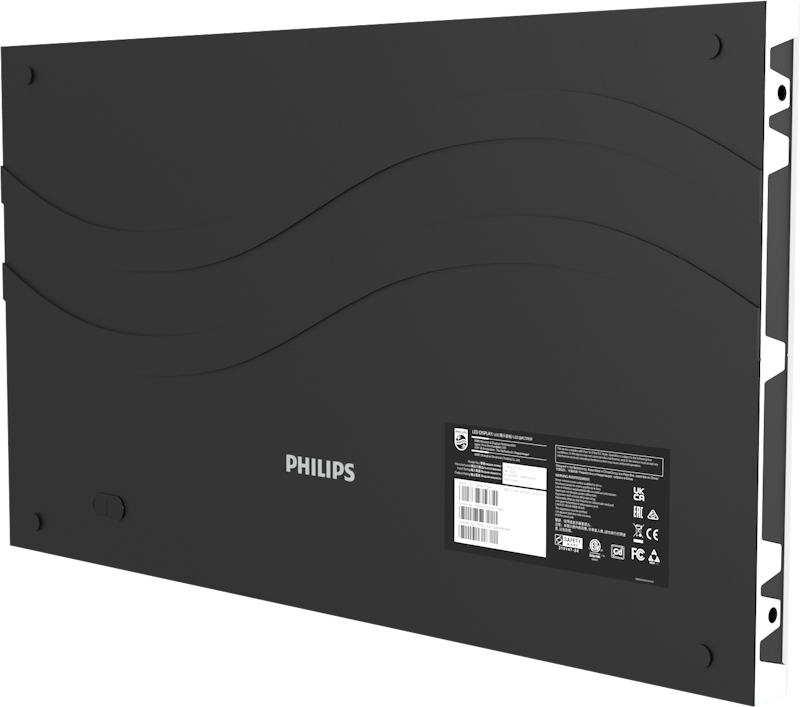

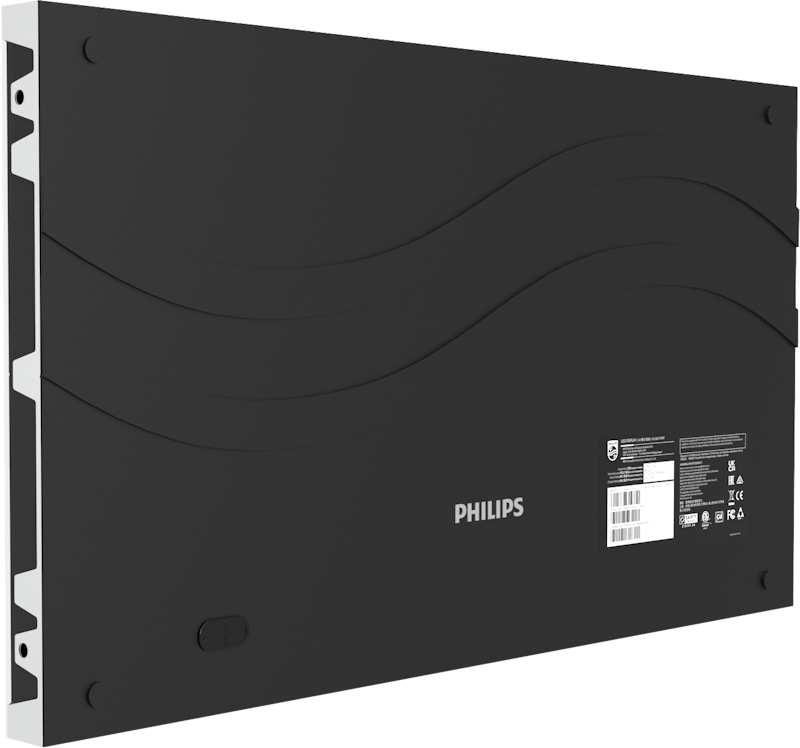

This P1.8-class panel combines flip-chip COB LED construction with practical power-management features. The cabinet has typical AC power consumption below 30 W and maximum AC consumption below 50 W, while black-screen power saving is supported. Maximum BC cabinet consumption is below 65 W. These characteristics support the Unite 5000 range’s focus on efficiency and reduced ownership costs. The LEDs have a stated lifetime of 100,000 hours, and the product includes a 36-month warranty. Its die-cast cabinet weighs 4.7 kg, with a tolerance of plus or minus 0.2 kg, providing a defined balance of panel size, depth and weight for modular integration.

Installation and Integration

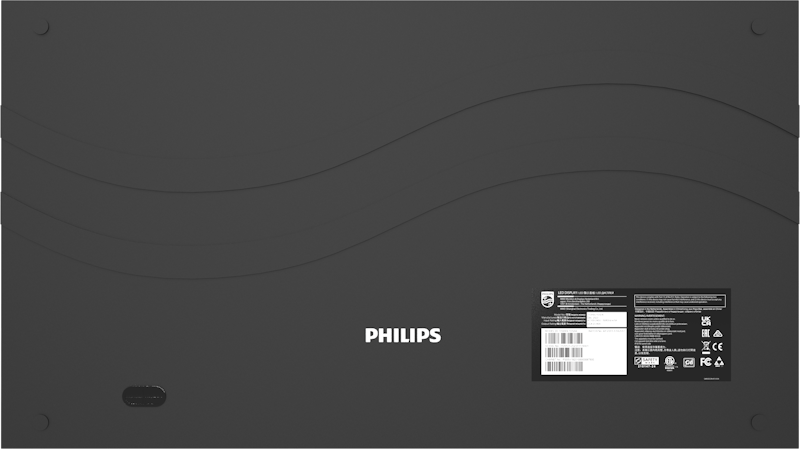

The cabinet measures 600 x 337.5 x 33.6 mm and occupies 0.2052 square meters. Data connectivity is provided through RJ45, managed by a Novastar A8S-N receiving card. Two RJ45 LAN cables, measuring 75 cm and 15 cm, are specified with the product. Power is connected through a 3-pin connector, and the AC input range is 100–240 V. Up to 16 cabinets can be connected in a power daisy chain. The listed installation hardware includes 22 mm Hex M6 screws, while the Quick Start Guide is printed on the carton. The complete packaged product measures 822 x 461 x 99 mm and weighs 6.3 kg, with a tolerance of plus or minus 0.2 kg.

Performance Highlights

The 3840 Hz refresh rate is paired with a 50–60 Hz frame frequency for stable LED image presentation. Thirteen-bit processing supports image gradation, while both colour and brightness calibration are provided. Brightness uniformity is rated at 97% or greater. Software-adjustable colour temperature spans 3000–10000 K, with a default setting of 6500 K plus or minus 500 K. The panel’s typical contrast ratio is 5000:1, and its 160-degree horizontal and vertical viewing specification supports consistent viewing from multiple positions. Power consumption is rated at 285 W per square meter in AC mode and 338 W per square meter in BC mode.

What Makes It Different

The display uses 1R1G1B flip-chip pixels with chip-on-board LED technology and a common-anode pole design. Each 150 x 168.75 mm module has an 80 x 90-pixel resolution, contributing to the cabinet’s total 320 x 180 resolution. COB construction, the fine 1.875 mm pitch and the shallow 33.6 mm cabinet depth define this model within the Unite 5000 range. Thermal output is specified at 972 BTU per square meter in AC mode and 1153 BTU per square meter in BC mode. Storage humidity is rated from 10%–70% RH, and the listed storage temperature range is 40–60 degrees Celsius.

Final Assessment

The 27HDL5118IP/00 is a precisely specified indoor DvLED building block for installations based on 600 x 337.5 mm cabinets. Its strongest attributes are the 1.875 mm pixel pitch, flip-chip COB construction, 3840 Hz refresh rate, 600-nit brightness, 5000:1 contrast ratio and black-screen power saving. Integration is supported by RJ45 data connections, a Novastar A8S-N receiving card and power daisy chaining for as many as 16 cabinets. Regulatory approvals listed for the model include CE, UKCA, FCC, ETL, RoHS, CCC and SASO, complementing the included 36-month warranty.
