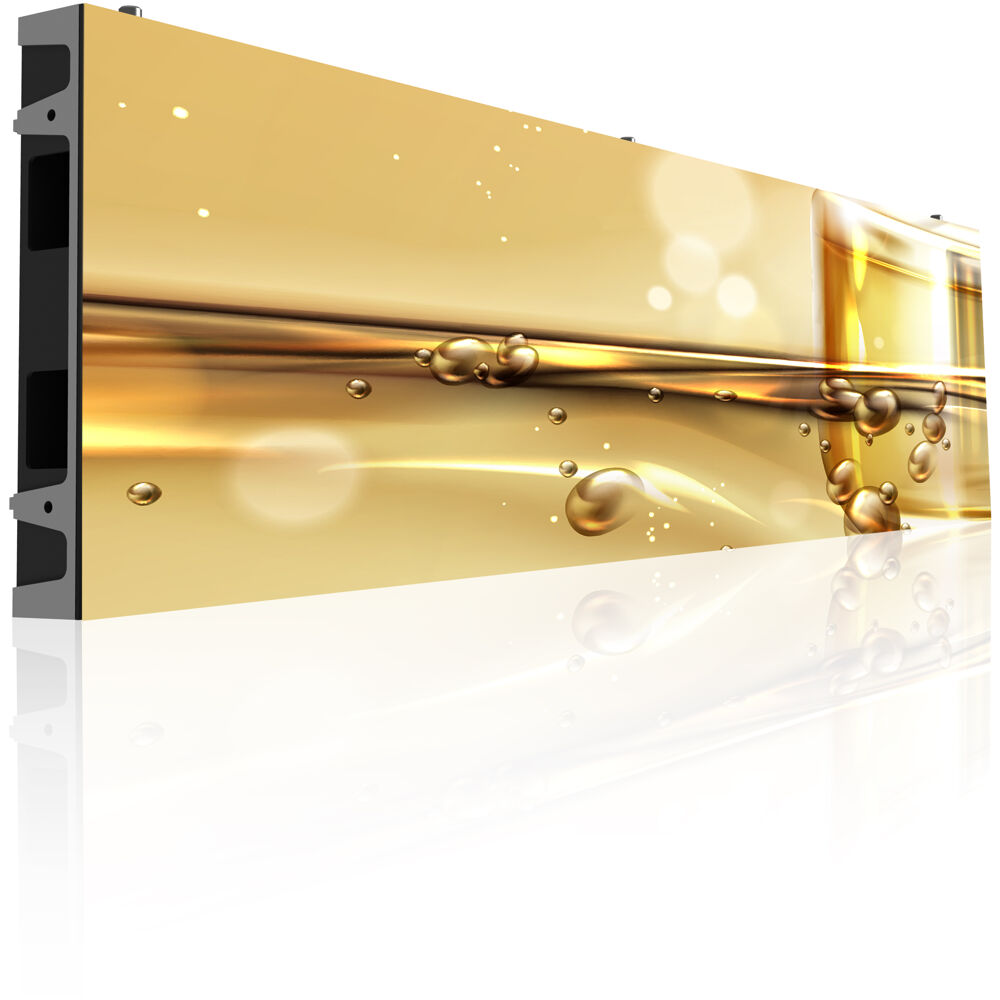

L-Line dvLED Panel -7000 Series, 41" fine-pitch creative 3.1mm, 900 nits

Ideal Use Cases

The Philips L-Line 7000 Series 41BDL7231L/00 is designed for indoor LED signage projects that require a fine-pitch, creatively proportioned display. Its 4:1 aspect ratio, landscape placement, and slim 1000 x 250 x 40 mm cabinet make it suitable for long-format visual layouts. Seamless linking and the multiple size options available within the series support displays tailored to different shapes and dimensions. A 3.1 mm pixel pitch, 900-nit calibrated brightness, and wide viewing angles provide a strong foundation for installations where image consistency and visibility across the display area are priorities.

Why Choose This Model

This 40.6-inch cabinet combines a lightweight 6.10 kg design with die-cast aluminium construction. Each cabinet contains 25,600 pixels and delivers a 320 x 80 resolution through SMD 2121 copper-wire LEDs in a 1R1G1B pixel configuration. The specified LED lifetime is 100,000 hours at half brightness. Guide pins and the cabinet’s light weight are identified as installation advantages, while a listed 90-degree side angle supports the creative format of the panel. The result is a clearly defined cabinet platform for building distinctive Philips L-Line displays without sacrificing practical handling.

Installation and Integration

RJ45 connections are used for both cabinet data and signal-control loop-through. One NovaStar A5S Plus receiving card is installed per cabinet. The supplied accessories include two power cables, two RJ45 CAT-5 LAN cables, and one quick-start guide. Power loop-through supports up to eight cabinets in 230 V environments or up to four cabinets in 110 V environments, with a stated maximum of 10 A. The panel accepts AC 100-240 V through a three-core power socket. Installers should follow these cabinet-count and current limits when designing the power layout. The panel is specified for indoor, landscape use, with conformal coating applied to the hub board and the back side of the LED module.

Performance Highlights

Brightness is rated at 1200 nits before calibration and 900 nits after calibration, with brightness and colour calibration supported. Brightness uniformity is at least 97%, while the typical contrast ratio is 3900:1. Picture enhancement is specified as a wide colour gamut display. Colour temperature can be adjusted from 4000 to 9500 K, with a default setting of 6500 ±500 K. The horizontal viewing angle is 155 degrees and the vertical viewing angle is 150 degrees, helping preserve visibility across a broad viewing area. The refresh-rate range is 2100-3900 Hz, and supported frame frequencies are 50 and 60 Hz.

What Makes It Different

The defining feature of this model is its combination of a fine 3.1 mm pixel pitch and an elongated 4:1 cabinet format. Instead of limiting an installation to a conventional display outline, the L-Line 7000 Series is built around seamless linking and flexibility in shape and size. The 40 mm cabinet depth and 0.25 m² cabinet area provide known dimensions for planning a multi-cabinet structure. Typical power consumption is specified below 39.3 W, maximum AC consumption below 117.7 W, and black-screen consumption below 11 W. Fire-retardancy certifications include BS 476 Part 7:1997 and UL94, and the product carries a two-year warranty.

Final Assessment

The 41BDL7231L/00 is a purpose-built indoor direct-view LED cabinet for creative, landscape-oriented display configurations. Its central strengths are the 3.1 mm pixel pitch, calibrated 900-nit output, 3900:1 typical contrast, wide viewing angles, slim die-cast aluminium cabinet, and specified seamless-linking capability. Installation planning should account for its power-loop limits, AC 100-240 V input, 20-45 °C operating-temperature range, and 10-80% operating-humidity range. For projects aligned with those conditions, it offers a thoroughly specified platform for constructing distinctive L-Line LED signage.
