LED Display Cabinet 7324 100x25, 45 deg

Ideal Use Cases

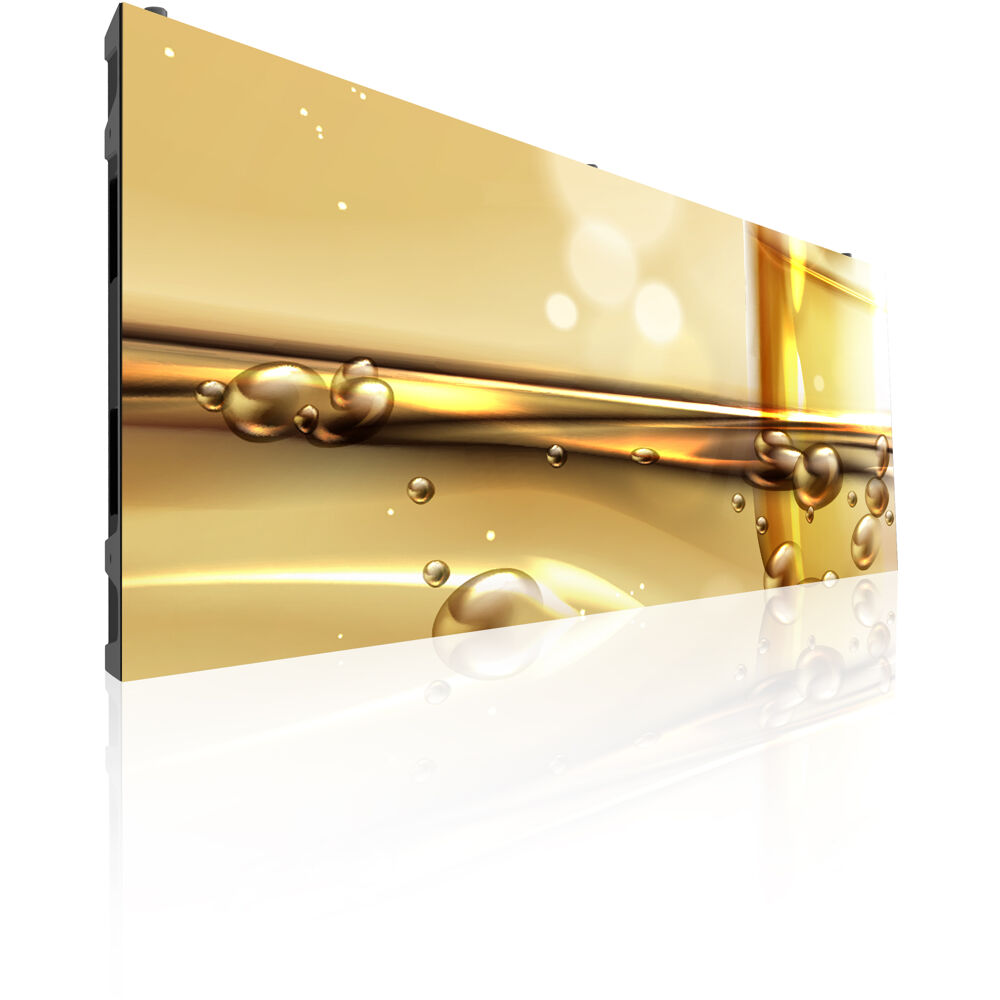

The Philips 41BDL7324L/00 is an indoor LED signage cabinet for projects requiring a wide-format display surface, modular linking, and angled transitions. Its 1000 x 250 x 40 mm cabinet has a 4:1 aspect ratio, 40.6-inch diagonal, and 45-degree side angle. These proportions support distinctive display shapes while preserving a shallow 40 mm cabinet depth. Landscape placement, seamless linking, and multiple size options make the cabinet suitable for building custom LED displays that extend beyond conventional rectangular configurations.

Why Choose This Model

A 2.4 mm pixel pitch and 416 x 104 cabinet resolution provide 43.264 cabinet dots across a 0.25 m² surface. The SMD 1515 copper-wire LEDs use a 1R1G1B pixel constitution and have a stated lifetime of 100,000 hours at half brightness. Calibrated brightness reaches 900 nits, while brightness before calibration is rated at 1200 nits. A typical 3500:1 contrast ratio, at least 97% brightness uniformity, and horizontal and vertical viewing angles of 160 degrees support consistent indoor presentation across a broad viewing area.

Installation and Integration

The cabinet is constructed from die-cast aluminium and weighs 5.91 kg. Guide pins and the lightweight construction are identified as installation features. Data connections, signal control loop-through, and the supplied CAT-5 LAN cables use RJ45. Power connects through a 3-core socket, with an input range of AC 100-240 V. Power loop-through supports up to eight cabinets in 230 V environments or up to four cabinets in 110 V environments, subject to a 10 A maximum. Control is handled by one NovaStar A5S Plus receiving card. The package includes two RJ45 CAT-5 LAN cables, two power cables, and one quick-start guide. The packaged dimensions are 1354 x 392 x 221 mm, with a gross weight of 9.01 kg.

Performance Highlights

The display supports refresh rates from 2100 to 3900 Hz and frame frequencies of 50 Hz and 60 Hz. Its wide colour gamut display is complemented by supported brightness and colour calibration. Colour temperature is adjustable from 4000 to 9500 K, with a default setting of 6500 ±500 K. Each 249.9 x 249.9 mm module provides a 104 x 104-pixel resolution. Typical power consumption is less than 41.67 W, maximum AC power consumption is less than 125 W, black-screen consumption is less than 11 W, and maximum BC power consumption is less than 150 W.

What Makes It Different

The 45-degree side angle distinguishes this cabinet within modular indoor LED installations, allowing it to participate in display designs that change direction instead of remaining on a single flat plane. Its elongated 4:1 cabinet format also provides a different building block from conventional display proportions. Conformal coating is applied to the hub board and the back side of the LED module. Listed fire-retardancy certifications include BS 476 Part 7:1997, UL94, and DIN 4102-1. Regulatory approvals include EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, and FCC SDOC Part 15 Class A.

Final Assessment

The 41BDL7324L/00 combines a 2.4 mm pixel pitch, 900-nit calibrated brightness, 3500:1 typical contrast, wide colour gamut, and 160-degree viewing angles in a slim, lightweight indoor cabinet. Its 45-degree side angle, 4:1 format, guide-pin installation, RJ45 loop-through connectivity, and NovaStar receiving card make it a focused choice for linked LED signage configurations where cabinet geometry and integration flexibility are central requirements. The model is covered by a two-year warranty.
