DvLED panel, Unite 5000, 600x337.5mm, P1.5

Ideal Use Cases

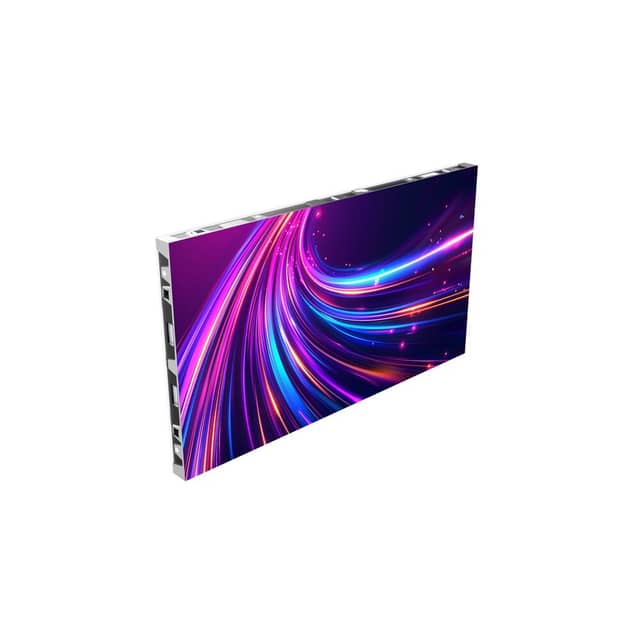

The PPDS Unite 5000 27HDL5115IP/00 is an indoor direct-view LED panel designed for modular display installations that require fine pixel density, compact cabinet dimensions, and consistent image performance. Each cabinet measures 600 x 337.5 x 33.6 mm and provides a 384 x 216 resolution with 82,944 pixels. Its P1.5-class, 1.5625 mm pixel pitch supports detailed content, while the cabinet’s 16:9 proportions simplify the creation of conventionally shaped display canvases. The 600-nit output and wide viewing angle make it suitable for indoor environments where content must remain visible from varied positions.

Why Choose This Model

This Unite 5000 panel combines COB LED technology with a 1R1G1B flip chip pixel constitution. It delivers 600-nit brightness, a typical 5000:1 contrast ratio, and brightness uniformity of at least 97%. Horizontal and vertical viewing angles reach 160 degrees, helping the image remain visible across a broad audience area. Thirteen-bit processing supports tonal reproduction, while brightness and color calibration provide tools for maintaining consistency across connected cabinets. The default color temperature is 6500K, with a tolerance of plus or minus 500K, and software adjustment is available from 3000K to 10000K.

Installation and Integration

The die-cast cabinet weighs 4.7 kg with a tolerance of plus or minus 0.2 kg, providing a comparatively shallow 33.6 mm profile. It uses an RJ45 data connection, a three-pin power connector, and a Novastar A8S-N receiving card. Input voltage support spans AC 100 to 240 V, and as many as 16 cabinets can be connected in a power daisy chain. Individual modules measure 150 x 168.75 mm and provide a 96 x 108 pixel resolution. Supplied installation materials include 22 mm Hex M6 screws and RJ45 LAN cables in 75 cm and 15 cm lengths. The Quick Start Guide is printed on the carton.

Performance Highlights

A 3840 Hz refresh rate is paired with a 50 to 60 Hz frame frequency, supporting stable presentation of moving and camera-captured content. The COB LEDs have a stated lifetime of 100,000 hours. This model uses a common-anode LED pole design and includes black-screen power saving. Source data lists black-screen consumption below 22 W, cabinet maximum AC consumption below 60 W, and typical cabinet AC consumption below 40 W. The operating range is 10 to 45 degrees Celsius with 10% to 90% relative humidity, supporting use across a variety of controlled indoor environments.

What Makes It Different

The 27HDL5115IP/00 brings together a fine 1.5625 mm pitch, flip chip COB construction, high refresh performance, and an unusually slim cabinet depth. Each 0.2052-square-meter cabinet contains 82,944 pixels without requiring a bulky enclosure. Color and brightness calibration, software-adjustable color temperature, and a wide 160-degree viewing angle provide practical controls for assembling a visually consistent multi-cabinet display. Its black-screen power-saving capability and listed low cabinet consumption also align with the Unite 5000 range’s focus on efficiency and reduced ownership costs.

Final Assessment

The Unite 5000 27HDL5115IP/00 is a focused indoor DvLED cabinet for installations that prioritize close pixel spacing, dependable COB construction, and integration-ready power and data connections. Its combination of 384 x 216 cabinet resolution, 600-nit brightness, 5000:1 typical contrast, and 3840 Hz refresh rate provides a clearly defined performance foundation. The model carries a 36-month warranty and lists CE, UKCA, FCC, ETL, RoHS, CCC, and SASO regulatory approvals. For modular indoor LED projects, it offers a detailed specification set in a thin, die-cast format.
