DvLED panel, Unite 5000, 600x337.5mm, P0.78

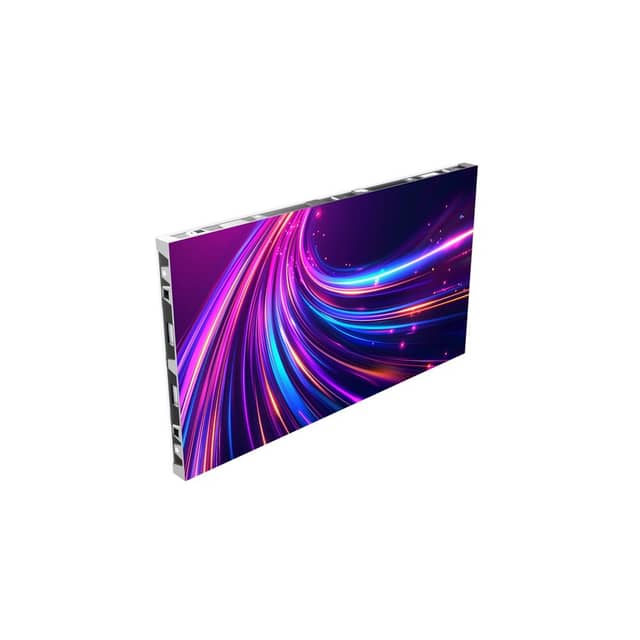

The PPDS Unite 5000 27HDL5178IP/00 is a fine-pitch indoor direct-view LED panel designed around 1R1G1B Flip Chip COB technology. Its 0.78125 mm pixel pitch is paired with a 768 x 432 cabinet resolution in a 600 x 337.5 x 33.6 mm enclosure. Each cabinet has a 27.1-inch diagonal, weighs 4.7 ± 0.2 kg and uses die-cast aluminium construction. The platform combines 600-nit brightness, a typical 5000:1 contrast ratio and 3840 Hz refresh performance with an efficiency-focused common-cathode design.

Ideal Use Cases

This model fits indoor LED video wall projects that specifically require a sub-1 mm pixel pitch, 16:9 cabinet geometry and a wide 160-degree viewing angle. The cabinet format supports installations assembled from repeated 600 x 337.5 mm units, while the specified power daisy chain extends to a maximum of 16 cabinets. It is intended for controlled indoor environments operating from 10 to 45 °C and 10% to 90% RH. Its combination of 600-nit brightness, a 50-60 Hz frame frequency and a 3840 Hz refresh rate addresses projects where consistent presentation and high refresh performance are important requirements.

Why Choose This Model

The model’s core strengths are fine-pitch resolution, image uniformity and adjustable colour performance. Brightness uniformity is rated at 97% or greater, while both colour and brightness calibration are supported. The default colour temperature is 6500 ± 500 K, with software adjustment from 3000 to 10000 K. Horizontal and vertical viewing angles are both specified at 160 degrees. A 13-bit specification, typical 5000:1 contrast ratio and 1R1G1B pixel constitution define the panel’s image platform. LED lifetime is listed at 100,000 hours, and the panel is covered by a 36-month warranty.

Installation and Integration

The die-cast aluminium cabinet measures only 33.6 mm deep and has a specified weight of 4.7 ± 0.2 kg. A 3-pin connector handles power, while RJ45 provides the data connection. Input voltage spans AC 100-240 V. Each cabinet includes two NovaStar A10s Pro receiving cards, and the maximum power daisy chain is 16 cabinets. Individual modules measure 150 x 168.75 mm and provide a 192 x 216-pixel resolution. Listed installation materials include 75 cm and 15 cm RJ45 cables, 22 mm Hex M6 screws and a Quick Start Guide printed on the carton. The packaged unit measures 822 x 461 x 99 mm and weighs 6.3 ± 0.2 kg.

Performance Highlights

The cabinet’s typical AC power consumption is specified at less than 30 W. Maximum cabinet consumption is less than 59 W under AC figures and less than 75 W under BC figures, while black-screen consumption is less than 20 W. Black-screen power saving is supported. Per-square-metre consumption is listed at 303.75 W for AC and 371.5 W for BC, with corresponding thermal figures of 1036 and 1267 BTU per square metre. The 3840 Hz refresh rate works alongside the specified 50-60 Hz frame frequency, while 600-nit brightness and at least 97% brightness uniformity establish the stated output characteristics.

What Makes It Different

The defining combination is a 0.78125 mm pitch, Flip Chip COB construction and common-cathode LED design within a 600 x 337.5 mm cabinet. The Unite 5000 range is positioned as an investment-friendly option focused on quality, resolution, reliability and efficiency, including low power consumption intended to reduce ownership costs. The panel also carries CCC, CE, ETL, FCC, SASO, UKCA and RoHS regulatory approvals. Its adjustable 3000-10000 K colour temperature range and colour-and-brightness calibration provide additional control over a multi-cabinet display system.

Final Assessment

The 27HDL5178IP/00 brings together fine 0.78125 mm pixel spacing, a 768 x 432 cabinet resolution, 600-nit brightness, typical 5000:1 contrast and 3840 Hz refresh performance in a slim indoor cabinet. For projects specified around Flip Chip COB technology, RJ45 data distribution, wide 160-degree viewing and controlled power consumption, it offers a clearly documented foundation backed by a 36-month warranty and a listed 100,000-hour LED lifetime.
