12.1" 1024x768 PCAP Open Frame Touch Monitor VGA/HDMI/DP 500 Nits

Ideal Use Cases

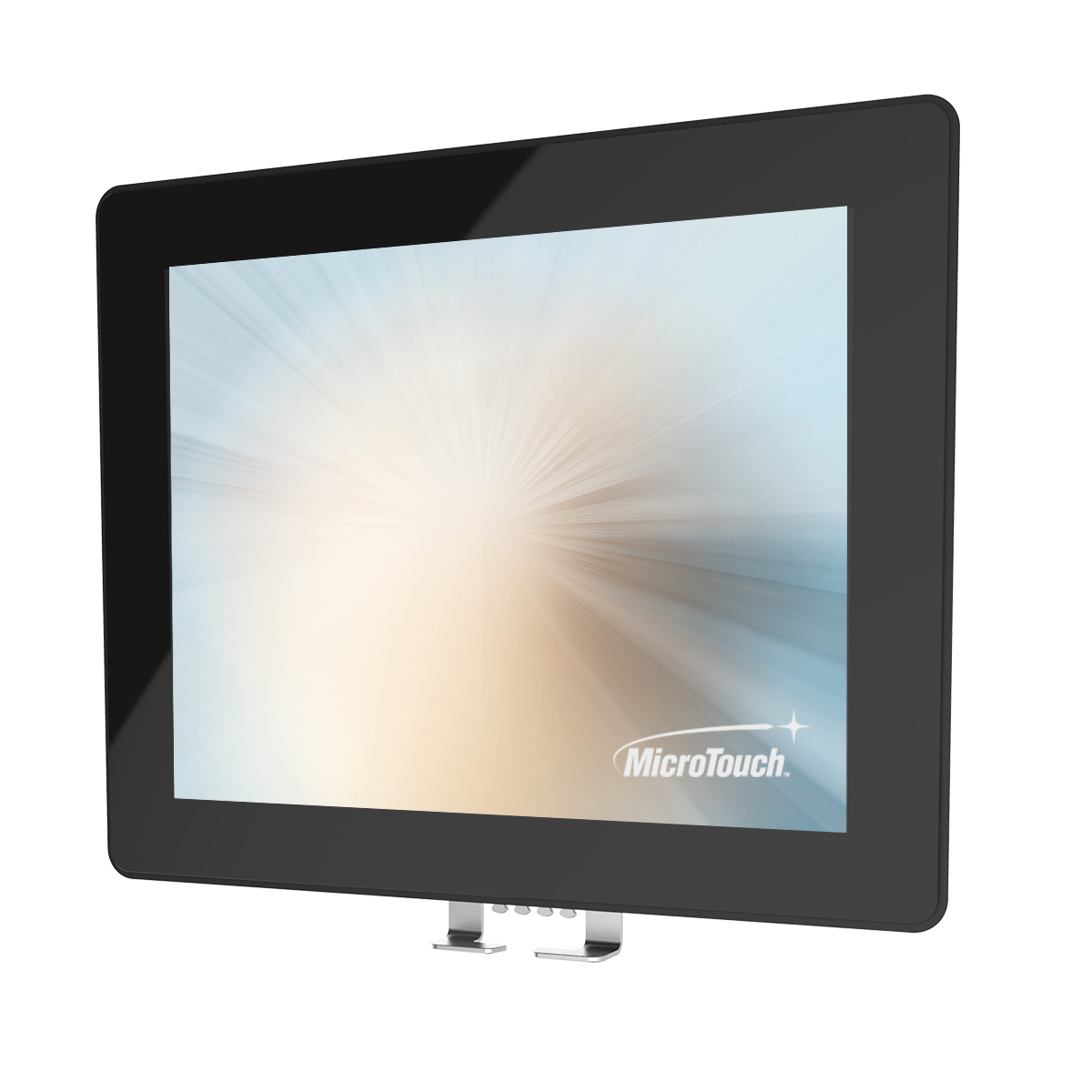

The MicroTouch OF-120P-A1 is a 12.1-inch open-frame touch monitor designed for business applications such as point-of-sale systems and interactive signage. Its 4:3 display format and 1024 x 768 resolution suit interfaces built around menus, controls, forms, and other structured content. Projected capacitive touch technology supports up to 10 simultaneous touch points through a USB-HID Type B interface. The open-frame construction allows the display to be integrated into custom enclosures, kiosks, counters, equipment panels, and other purpose-built installations.

Why Choose This Model

This model combines a compact 12.1-inch TFT LCD with multiple video inputs and a durable front surface. VGA, DisplayPort, and HDMI connections provide flexibility when pairing the monitor with different source equipment. The display delivers 500-nit brightness without the touch layer and 425-nit brightness in its projected capacitive configuration. A 1000:1 contrast ratio, 4:3 aspect ratio, and 178-degree horizontal and vertical viewing angles help maintain a consistent image when the screen is viewed from different positions.

The front panel is IP65 compliant, while the monitor carries CE, FCC, CB, and UL certifications. It is also rated for UL60950 ball-drop testing at 500 grams from 1.3 meters and IK07 impact protection.

Installation and Integration

The OF-120P-A1 measures 308.3 x 247.8 x 47.3 mm and weighs 2.2 kg without a VESA bracket. A 100 x 100 mm VESA pattern supports mounting within compatible installation designs. An OF-BRKT-12A bracket kit is identified for the 12-inch model.

Video sources can connect through one VGA port, one DisplayPort, or one HDMI port. Touch data uses the dedicated USB 2.0 Type B connection and USB-HID interface. Additional connections include an audio output and an RJ45 port for an OSD remote. Power is supplied through a locking 12V DC jack using a 36W, 12V, 3A external power adapter. The locking connector helps secure the power connection after installation.

Performance Highlights

• 12.1-inch TFT LCD with 1024 x 768 maximum resolution
• Projected capacitive touch screen with 10 touch points
• 425-nit brightness with the P-CAP touch layer
• 500-nit panel brightness without touch
• 1000:1 contrast ratio and native 4:3 presentation
• 178-degree horizontal and 178-degree vertical viewing angles
• USB-HID touch interface through a USB Type B connection

The stated operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. The listed storage range is 20°C to 60°C at 10% to 95% relative humidity, also non-condensing.

What Makes It Different

The monitor brings together open-frame integration, 10-point projected capacitive touch, and three distinct video interfaces in a compact format. Its construction combines glass, ABS plastic, and SECC metal, with a black housing that can be incorporated into a range of equipment designs. Unlike a basic desktop display, this model includes an RJ45 connection specifically for OSD remote control, a locking DC power input, and a front panel rated for IP65 compliance.

MicroTouch also identifies matching part numbers for a 36W power supply, regional power cables, HDMI, DisplayPort, VGA, and USB A-to-B cables. These references can help integrators identify the related components specified for the product without relying on unverified substitutions.

Final Assessment

The OF-120P-A1 is a focused choice for installations requiring a 12.1-inch, 4:3 touch display with open-frame construction. Its 10-point P-CAP interface, 1024 x 768 resolution, wide viewing angles, and VGA, DisplayPort, and HDMI inputs cover the core requirements of many POS and interactive-signage systems. Front-panel IP65 compliance, IK07 protection, a locking power connection, VESA mounting, and a three-year warranty add practical value for long-term commercial integration.
