15.6" 1920x1080 All-In-One Win10 3965U Touch Device 450 Nits

Ideal Use Cases

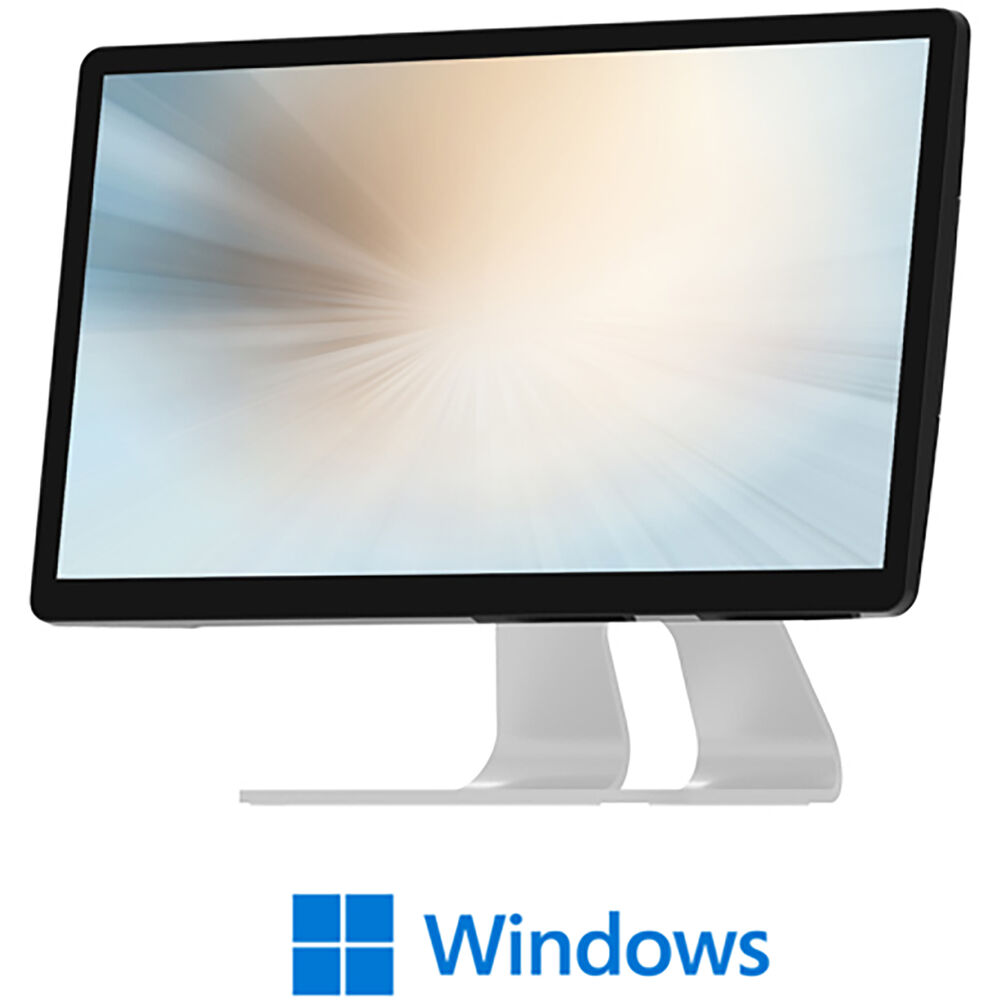

The MicroTouch IC-156P-AW4-W10 combines a 15.6-inch TFT LCD, integrated computing hardware, and projected capacitive touch in one device. Its 10-point touch interface supports installations that benefit from direct, multi-touch interaction, while the 1920 x 1080 maximum resolution and 16:9 aspect ratio provide a familiar Full HD workspace. A 7H-hardness durable glass surface adds protection for frequently handled deployments. With USB, serial, Ethernet, wireless, and video connectivity, this model fits interactive counters, information stations, control interfaces, and other peripheral-rich environments.

Why Choose This Model

Core hardware includes a Celeron® 3965U processor operating at 2.2 GHz with 2MB cache, Intel® HD Graphics 620, 8GB of DDR4 2133 MHz So-DIMM memory, and a 128GB SSD. Windows 10 IoT 2019 LTSC is installed, giving the system a clearly defined operating platform. The display delivers a 1000:1 contrast ratio and wide 178-degree horizontal and vertical viewing angles. Touch operation is supported through projected capacitive technology, and the touch-equipped configuration is rated at 405 nits of brightness.

Installation and Integration

The connection panel supports a broad range of peripherals and network configurations. Four USB Type-A ports are provided: two USB 2.0 and two USB 3.0. A USB 3.1 Type-C port supports Display Alternate Mode and PD 2.0, with 5V/3A or 12V/2.5A output up to 30W. Additional connections include one Mini DisplayPort, one RJ45 Gigabit LAN port, and one RS232 DB9 serial port with BIOS-selectable 5V/12V. Wireless connectivity covers 802.11 a/b/g/n/ac Wi-Fi and Bluetooth 4.2 with BLE support. Power is supplied through a 24V DC input using a 120W external power adapter. An MSR-156-A1 magnetic stripe reader, CAM-000-A1 camera, and SS-156-A1 stand are listed as separately sold accessories.

Performance Highlights

The processor, 8GB system memory, and solid-state storage form a complete integrated computing platform behind the Full HD touch display. Intel HD Graphics 620 handles the system’s graphics processing, while the 128GB SSD provides onboard storage without requiring a separate computer. Network access can be established through Gigabit Ethernet or dual-band-compatible 802.11 a/b/g/n/ac Wi-Fi. Bluetooth 4.2 expands wireless peripheral options and includes BLE support. The supplied interface selection also allows simultaneous use of legacy RS232 equipment, USB accessories, network infrastructure, and an additional display connection.

What Makes It Different

This configuration brings display, touch input, processing, memory, storage, networking, and Windows 10 IoT into one 15.6-inch system. Its projected capacitive panel recognizes up to 10 touch points, while the 7H-hardness glass surface addresses repeated physical interaction. Brightness is specified separately for the display configurations: 450 nits without touch and 405 nits with P-CAP touch. The system carries CE, FCC, LVD, UL, and RoHS certifications. Its specified operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing.

Final Assessment

The IC-156P-AW4-W10 is a focused all-in-one choice for installations that need Full HD visuals, multi-touch control, onboard Windows computing, and varied peripheral support. Its Celeron 3965U processor, 8GB DDR4 memory, 128GB SSD, and Windows 10 IoT 2019 LTSC establish the computing foundation, while Gigabit LAN, Wi-Fi, Bluetooth, USB-C, USB-A, Mini DisplayPort, and RS232 provide integration flexibility. The 405-nit P-CAP display, wide viewing angles, durable glass surface, and three-year warranty complete a clearly specified touch-computing package.
