17″ 1280×1024 PCAP Medical Desktop Touch Monitor VGA/HDMI/DP 350 Nits

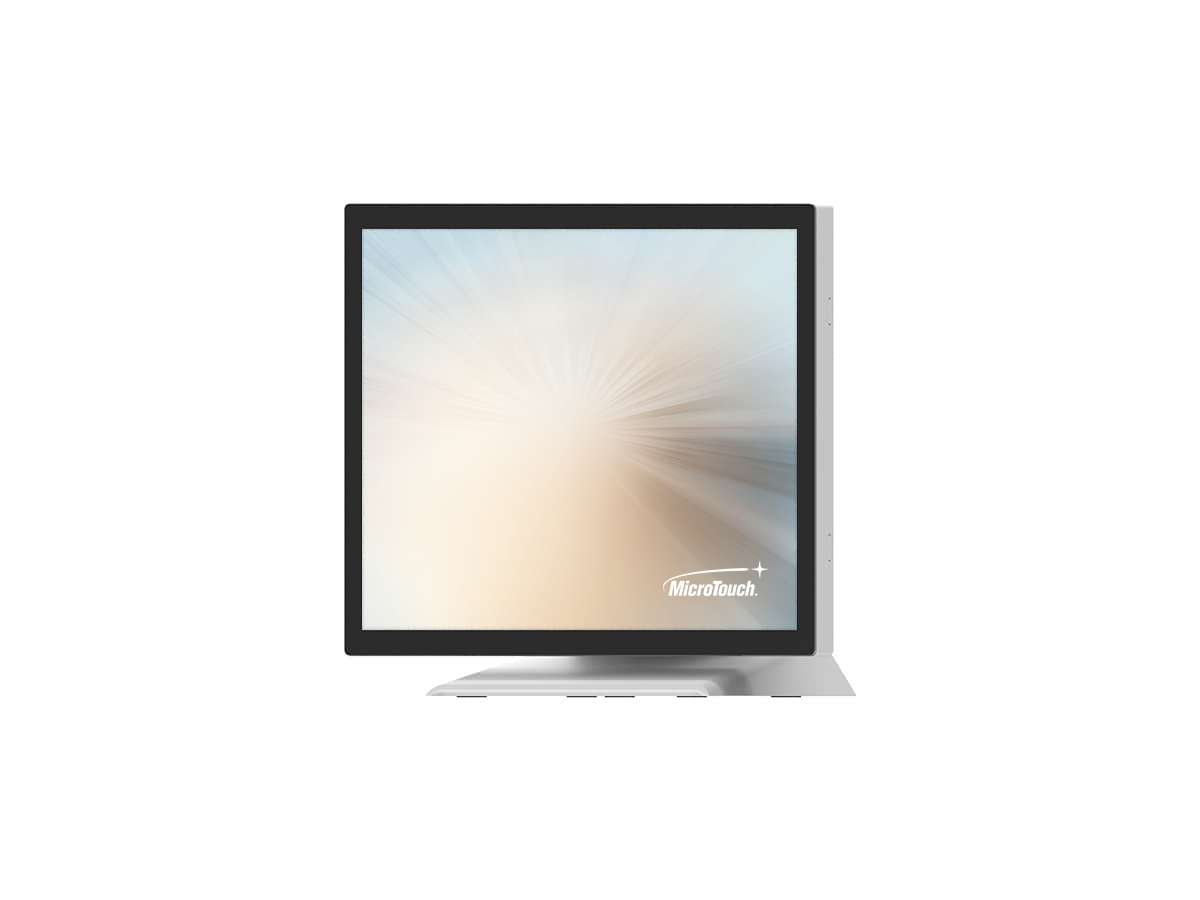

The MicroTouch DT-170P-M1 is a 17-inch medical desktop touch monitor built around a 5:4 TFT LCD panel and projected-capacitive input. Its 1280 x 1024 resolution, 10 simultaneous touch points, anti-glare screen treatment, and three video interfaces provide a clearly defined platform for desktop integration. The white housing combines glass, SECC metal, and ABS plastic, while the front panel carries an IP65 rating and the construction has an IK07 ball-drop rating.

Ideal Use Cases

This model fits medical desktop installations that require a compact 17-inch 5:4 display, direct multi-touch control, and compatibility with VGA, HDMI, or DisplayPort sources. It is well suited to systems designed around 1280 x 1024 output, as well as installations where video connections vary between devices. The USB-HID Type B interface provides the separate connection needed for touch operation. Its medical external power adapter and IEC60601-1-2 4th edition EMC compliance are also relevant when those documented attributes form part of the equipment-selection criteria.

Why Choose This Model

The ten-point projected-capacitive touch system distinguishes the DT-170P-M1 from displays limited to basic cursor control. The screen delivers 297-nit brightness through the P-CAP layer, with the underlying panel specified at 350 nits without touch. An anti-glare treatment supports viewing under varied ambient lighting, while the listed 170-degree horizontal and 160-degree vertical viewing angles provide flexibility in monitor placement. A 1000:1 contrast ratio complements the native 1280 x 1024 image, and the 5:4 aspect ratio matches the panel without requiring widescreen formatting.

Installation and Integration

Video connectivity consists of one VGA input, one HDMI input, and one DisplayPort input. Touch data connects through one USB 2.0 Type B USB-HID port. Power is accepted through a 2.1 mm 12V DC jack, and the specified power source is a 60W medical external adapter. An RJ11 port is available for a remote key connection. For mounting, the monitor supports the 100 x 100 mm VESA pattern in addition to its desktop format. Overall dimensions are 369.0 x 334.9 x 202.0 mm, and net weight is 5.3 kg. The stated operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing.

Performance Highlights

Display controls extend beyond the core resolution and brightness specifications. Selectable color temperatures include 5500K, 6500K, 7500K, 9300K, and a user-defined setting. Gamma selections include Native, Gamma 1.8, Gamma 2.2, and a calibrated DICOM Part 14 option, supported by a 10-bit gamma lookup table. Available scaling modes are Full, 5:4, 4:3, 16:9, and 1:1. These choices allow the monitor to accommodate multiple source formats while retaining a direct 1:1 mode when required. The DICOM Part 14 setting is presented as a selectable calibrated gamma mode within the supplied specifications.

What Makes It Different

The DT-170P-M1 combines touch capability, medical-oriented power and EMC specifications, and multiple video standards in one 17-inch desktop unit. Its IP65 compliance applies specifically to the front panel, while the IK07 ball-drop classification documents an additional level of front-facing impact resistance. The glass, SECC metal, and ABS construction is finished in white. Listed certifications and compliance markings include CE, CB, FCC, UL, CCC, RoHS, and IEC60601-1-2 4th edition EMC compliance. The monitor is also supported by a three-year warranty. Carton dimensions are 450.0 x 418.0 x 277.0 mm, with a stated gross weight of 7.3 kg.

Final Assessment

The MicroTouch DT-170P-M1 is a focused choice for installations requiring a 17-inch 1280 x 1024 medical desktop monitor with ten-point PCAP touch. Its combination of VGA, HDMI, DisplayPort, USB-HID touch, VESA mounting, selectable gamma and scaling modes, and documented front-panel protection provides a detailed integration profile. Buyers can evaluate it against precise requirements for resolution, connection type, physical size, environmental range, compliance, and warranty without relying on unspecified features.
