19.5" 1920x1080 PCAP Open Frame Touch Monitor VGA/HDMI/DP 250 Nits

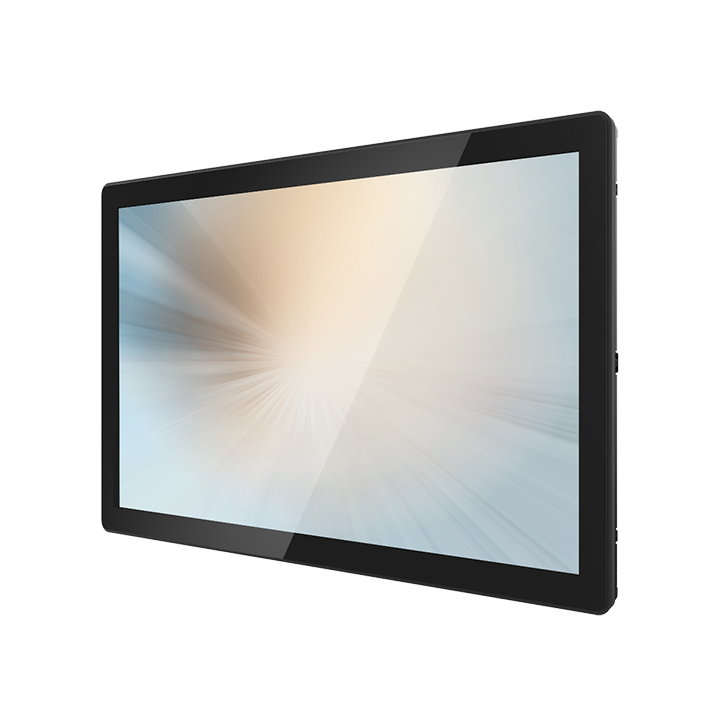

The MicroTouch OF-195P-A1 combines a 19.5-inch TFT LCD with projected-capacitive touch in an open-frame format. Its 10-point USB-HID touch interface, 1920 x 1080 maximum resolution, broad video connectivity, and front-panel IP65 compliance support integration into purpose-built interactive systems. The black housing uses glass, ABS plastic, and SECC metal construction.

Ideal Use Cases

This model is suited to installations requiring a Full HD touch display integrated into an enclosure, console, or equipment panel. Its open-frame construction and 100 x 100 mm VESA pattern provide practical options for embedded interactive stations, control interfaces, information displays, and other systems designed around a 19.5-inch screen. The front panel is IP65 compliant, while the specified operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing.

Why Choose This Model

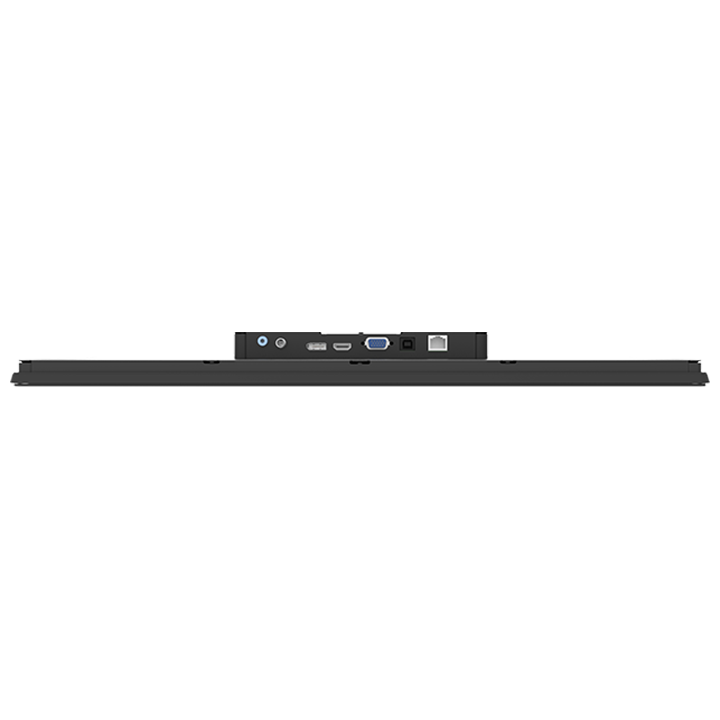

The OF-195P-A1 provides 10 simultaneous touch points through projected-capacitive technology. Touch communication uses a USB 2.0 Type B connection with USB-HID support, simplifying the connection between the display and a compatible host system. Video inputs include one HDMI port, one DisplayPort, and one VGA port, allowing the monitor to work with digital and analog video sources. A line-out connection is also provided for routing audio to an external audio solution.

Its 3000:1 contrast ratio and 178-degree horizontal and vertical viewing angles help maintain a consistent view across a wide viewing area. Brightness is rated at 250 nits without touch and 212 nits through the projected-capacitive touch layer.

Installation and Integration

The monitor measures 479.2 x 285 x 42.05 mm and has a net weight of 4.61 kg. A 100 x 100 mm VESA mounting pattern supports compatible mounting hardware, while the open-frame design allows the display to be planned into a larger assembly. Power connects through a locking 12V DC jack, helping secure the power connection after installation. The specified external power adaptor is rated at 36 W, 12V, and 3A.

A dedicated RJ-45 connection is included for a remote key. This connection is identified specifically for remote-key operation and is separate from the USB touch interface and video inputs. System designers can therefore account for touch, display input, audio output, power, and remote-key access as distinct connections.

Performance Highlights

The 19.5-inch TFT LCD supports a maximum resolution of 1920 x 1080, delivering Full HD image detail from compatible sources. Its 3000:1 contrast ratio is paired with wide 178-degree horizontal and 178-degree vertical viewing angles. The 10-point P-CAP touch system supports multi-touch interaction through its USB-HID Type B interface.

The listed construction combines glass, ABS plastic, and SECC metal. Impact-related specifications include IK08 and a UL60950 ball-drop rating of 500 g from 1.3 m. Certifications and compliance listings include FCC, UL/cUL, CE, and RoHS/REACH.

What Makes It Different

This model brings together an open-frame chassis, Full HD resolution, and 10-point projected-capacitive touch without limiting video input to a single connection standard. HDMI and DisplayPort accommodate digital sources, while VGA supports compatible analog equipment. The locking DC input, remote-key port, front-panel IP65 compliance, and VESA mounting pattern address several practical integration requirements within one monitor.

Storage conditions are specified at 20°C to 60°C and 10% to 95% relative humidity, non-condensing. The shipping carton measures 585 x 387 x 158 mm, with a listed gross weight of 6.31 kg.

Final Assessment

The MicroTouch OF-195P-A1 is a focused choice for projects requiring a 19.5-inch open-frame touch monitor with Full HD resolution and flexible source connectivity. Its 10-point USB-HID touch interface, HDMI, DisplayPort, and VGA inputs, 100 x 100 mm VESA pattern, locking 12V power connection, and IP65-compliant front panel create a clearly defined platform for system integration. The monitor is backed by a three-year warranty.
