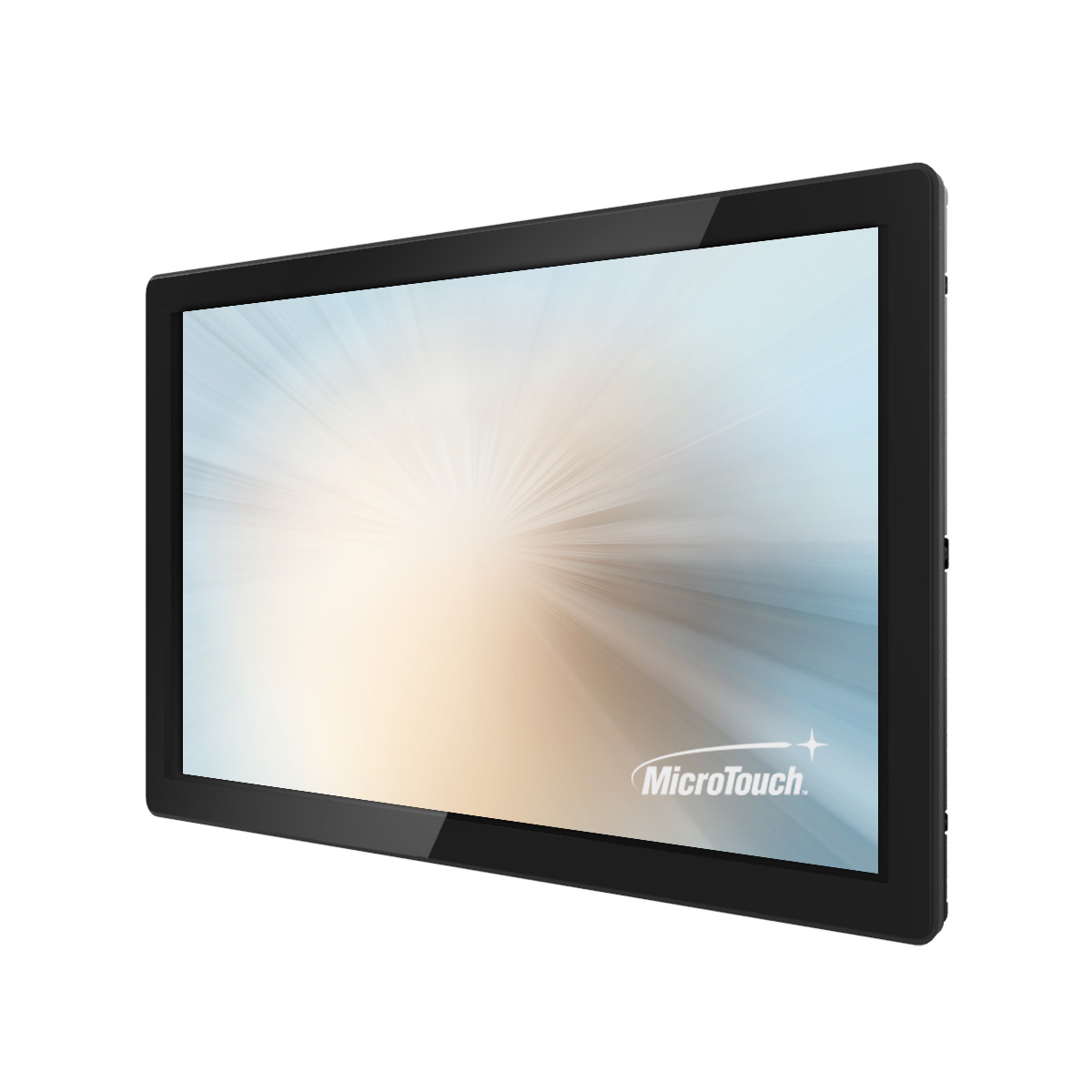

21.5" 1920x1080 PCAP Open Frame Touch Monitor VGA/HDMI/DP 350 Nits

The MicroTouch OF-215P-B1 is a commercial-grade 21.5-inch open-frame touch monitor designed for installations that need a dedicated interactive display. It combines a 1920 x 1080 TFT LCD with projected capacitive touch, support for 10 touch points, and a USB-HID Type B interface. Its black housing is constructed from glass, ABS plastic, and SECC metal, with an IP65-compliant front panel.

Ideal Use Cases

MicroTouch positions this model for point-of-sale, point-of-service, and interactive signage applications across multiple sectors. The open-frame design is appropriate for projects where the display will be integrated into a counter, fixture, enclosure, or other purpose-built installation.

• Interactive point-of-sale terminals requiring 10-point touch input
• Point-of-service stations with a 21.5-inch display area
• Interactive signage using HDMI, DisplayPort, or VGA sources
• Commercial installations requiring VESA mounting or a dedicated bracket kit

Why Choose This Model

The OF-215P-B1 brings its display, touch interface, and connection options together in one commercial-grade monitor. Its projected capacitive touchscreen supports 10 touch points and communicates through a USB 2.0 Type B connection using USB-HID. The 16:9 panel provides a maximum resolution of 1920 x 1080, a 1000:1 contrast ratio, and horizontal and vertical viewing angles of 178 degrees.

For installation environments where the front surface is exposed, the front panel is IP65 compliant. The listed ball-drop specifications are UL60950 at 500 g and 1.3 m, together with IK08. Certifications include CE, FCC, CB, and UL. The monitor is also backed by a three-year warranty.

Installation and Integration

Video connectivity consists of one HDMI input, one DisplayPort input, and one VGA input. An audio-out connection is available, while touch data is carried by the dedicated USB Type B port. The monitor also includes an RJ45 connection for an OSD remote. This range of interfaces allows the display and touch functions to be connected independently according to the requirements of the installation.

The chassis measures 519.9 x 314.9 x 42.4 mm and has a net weight of 4.4 kg. A 100 x 100 mm VESA pattern is provided for mounting, and OF-BRKT-22B is the specified bracket-kit part number for the 21.5-inch model. Power is supplied through a locking 12 V DC jack, with a 36 W, 12 V, 3 A external power adapter specified in the source data.

Performance Highlights

The 21.5-inch TFT LCD has a 16:9 aspect ratio and supports up to 1920 x 1080 resolution. Brightness is rated at 350 nits without touch and 315 nits with the projected capacitive touch layer. The 1000:1 contrast ratio and 178-degree horizontal and vertical viewing angles provide clearly defined baseline display specifications for planning an installation.

The stated operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. The storage range is 20°C to 60°C at 10% to 95% relative humidity, also non-condensing.

What Makes It Different

This model combines an open-frame commercial format with three video-input standards, USB-HID touch, a locking DC power connection, and an RJ45 port dedicated to an OSD remote. Its 10-point projected capacitive interface distinguishes it from displays intended only for non-interactive content, while the IP65-compliant front panel and listed impact specifications add documented installation details.

The black glass, ABS plastic, and SECC metal construction is paired with a chassis depth of 42.4 mm. For shipping and project planning, gross weight is 6.3 kg and carton dimensions are 610 x 405 x 160 mm.

Final Assessment

The MicroTouch OF-215P-B1 is a focused choice for commercial touch installations requiring a 21.5-inch open-frame display, 10-point projected capacitive input, and 1920 x 1080 resolution. HDMI, DisplayPort, VGA, USB-HID touch, audio-out, VESA mounting, and OSD remote connectivity provide the specified integration options, while the IP65-compliant front panel, documented certifications, and three-year warranty complete its commercial feature set.
