23.8" 1920x1080 PCAP Open Frame Touch Monitor VGA/HDMI/DP 250 Nits

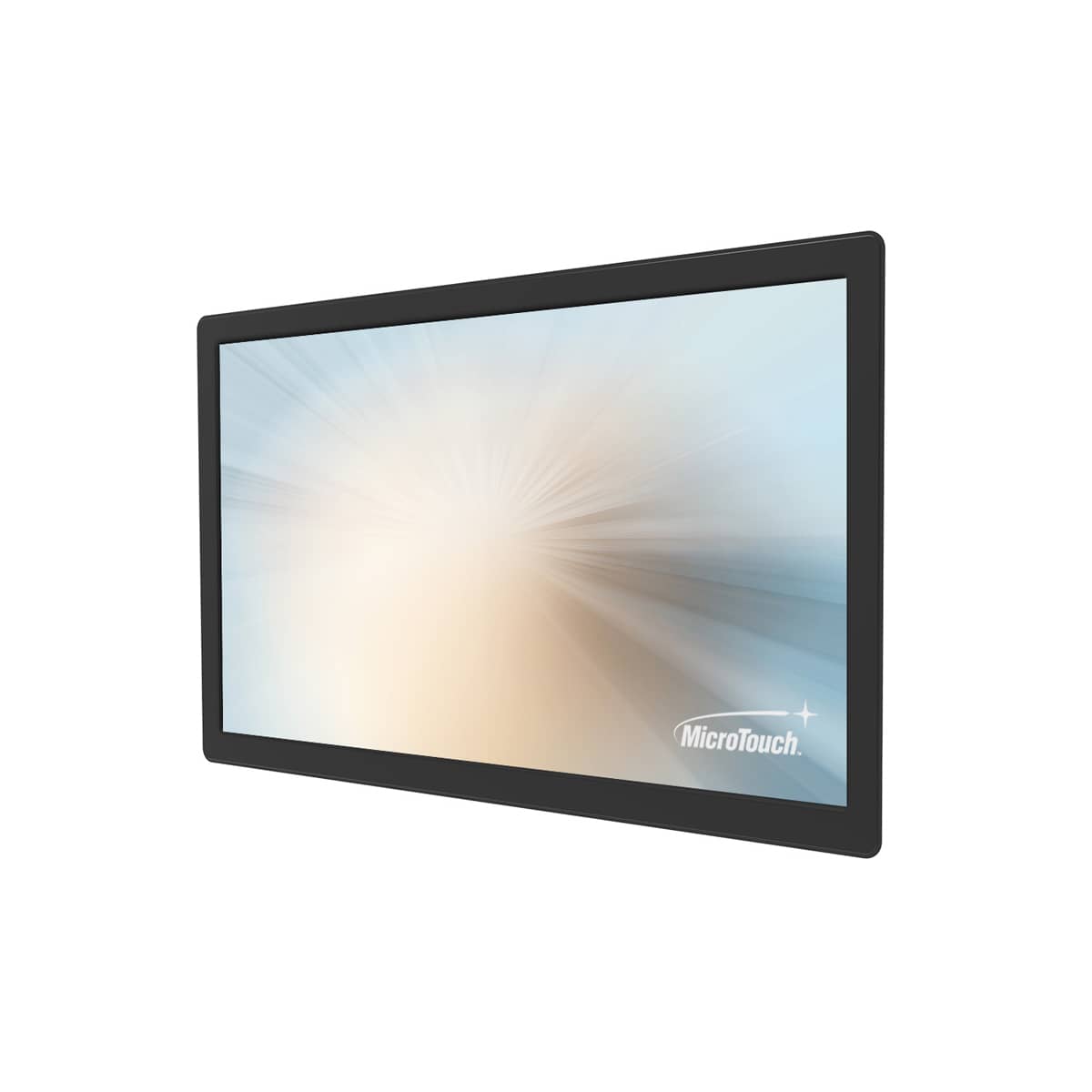

The MicroTouch OF-240P-A1 is a commercial-grade, 23.8-inch open-frame touchscreen monitor designed for embedded interactive systems. It combines a 1920 x 1080 TFT LCD panel with 10-point projected-capacitive touch, broad video connectivity, USB-HID touch control, and a durable front panel. Its 16:9 format, black housing, and 42.4 mm depth support installations where touch interaction and Full HD content must share a single integrated display.

Ideal Use Cases

This model is well suited for point-of-sale terminals, information stations, point-of-service systems, and interactive signage. The open-frame design allows the monitor to become part of a kiosk, counter, enclosure, or other purpose-built system. Ten simultaneous touch points accommodate interfaces that use multi-touch gestures or multiple on-screen controls. Horizontal and vertical viewing angles of 178 degrees also help preserve visibility when users approach the display from different positions.

Why Choose This Model

The OF-240P-A1 pairs projected-capacitive touch technology with a USB-HID Type B interface. Its touch connection uses one USB 2.0 Type B port, while video can be supplied through VGA, HDMI, or DisplayPort. This selection supports both analog and digital video sources without limiting the system to one connector format. The panel provides a 3000:1 contrast ratio and 1920 x 1080 maximum resolution. Brightness is specified at 250 nits without touch and 215 nits with the P-CAP touch layer.

Installation and Integration

The monitor measures 575.0 x 347.0 x 42.4 mm and has a net weight of 5.8 kg. A 100 x 100 mm VESA mounting pattern provides a defined mounting interface, and the listed bracket kit for the 23.8-inch model is OF-BRKT-24A. Connections include one VGA input, one DisplayPort input, one HDMI input, an audio output, and an RJ45 port for an OSD remote. Power is delivered through a locking 12V DC jack using a specified 36W, 12V, 3A external power adapter. The lock helps maintain the physical power connection in an integrated installation.

Source data also identifies matching part numbers for HDMI, DisplayPort, VGA, USB A-to-B, UL power, and EU/Korea power cables. These entries provide useful references when planning an installation, although the supplied data does not state which accessories or cables are included with the monitor.

Performance Highlights

The 23.8-inch TFT LCD presents Full HD content in a 16:9 aspect ratio. Its 3000:1 contrast ratio supports separation between darker and brighter image areas, while the 178-degree horizontal and vertical viewing specification supports wide-angle viewing. The listed operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Storage conditions are specified as 20°C to 60°C at 10% to 95% relative humidity, non-condensing.

What Makes It Different

Beyond its multi-input design, the OF-240P-A1 includes front-panel IP65 compliance. This specification applies specifically to the front panel, an important distinction when designing an enclosure around the remaining monitor structure. Construction combines glass, ABS plastic, and SECC metal. The listed ball-drop specification references UL60950 at 500 g and 1.3 m, together with IK08. Certifications include CE, FCC, CB, and UL. A three-year warranty further defines the stated coverage period for this commercial-grade model.

Final Assessment

The OF-240P-A1 is a focused option for integrators who need a 23.8-inch open-frame display with Full HD resolution and projected-capacitive multi-touch. Its combination of HDMI, DisplayPort, and VGA inputs makes it adaptable to varied source equipment, while USB-HID provides a clearly specified touch interface. Front-panel IP65 compliance, VESA mounting, a locking DC input, 178-degree viewing angles, and a 3000:1 contrast ratio give the model a practical specification set for interactive commercial installations.
