27" 1920x1080 PCAP Open Frame Touch Monitor VGA/HDMI/DP 275 Nits

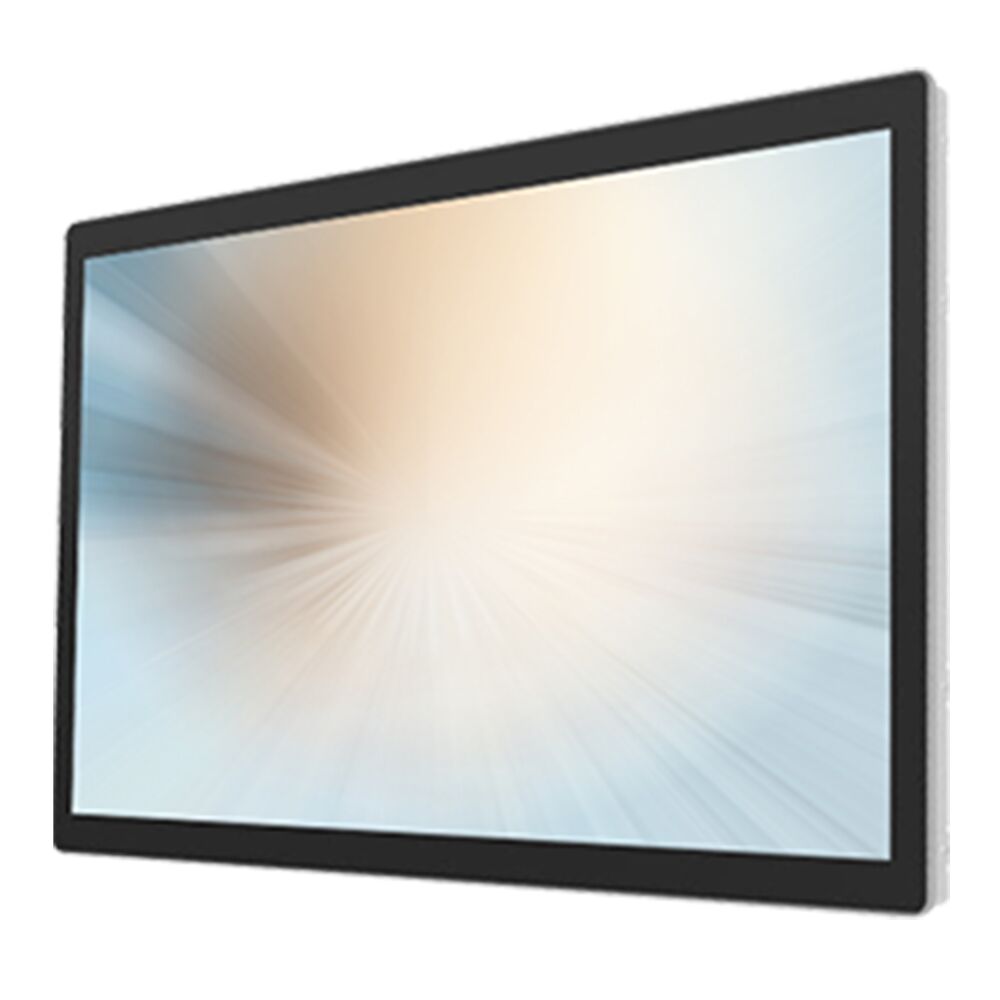

The MicroTouch OF-270P-B2 is a 27-inch open-frame TFT LCD touch monitor built around a 1920 x 1080 display and projected capacitive touch technology. Its 10-point touch system connects through a USB-HID Type B interface, while VGA, HDMI, and DisplayPort inputs provide three video connection options. A black housing, anti-glare surface, glass and SECC metal construction, and a 39.6 mm depth complete the integration-focused design.

Ideal Use Cases

This model fits installations that require a large 27-inch interactive display in an open-frame format. The 16:9 aspect ratio and 1920 x 1080 maximum resolution accommodate widescreen visual content, while 10 touch points support multi-touch interaction. It is also suited to projects requiring a choice of legacy and current video connections because VGA, HDMI, and DisplayPort are all available. The anti-glare surface is useful where reflected light must be considered when positioning the display.

Why Choose This Model

The OF-270P-B2 combines its projected capacitive touch layer with 275-nit brightness in the P-CAP configuration, a 4000:1 contrast ratio, and horizontal and vertical viewing angles of 178 degrees. These specifications provide a clear basis for evaluating the monitor against display, touch, and viewing-angle requirements. USB-HID touch connectivity keeps the touch interface separate from the selected video input. Front-panel IP54 compliance, an IK08 ball-drop test rating, and glass and SECC metal construction add documented physical characteristics for integration planning.

Installation and Integration

The monitor measures 651.0 × 395.0 × 39.6 mm and has a net weight of 8.2 kg. A 100 × 100 mm VESA mounting pattern provides a defined mounting interface. Video sources can connect through one VGA input, one HDMI input, or one DisplayPort input. Touch data uses the dedicated USB 2.0 Type B port with USB-HID support. Power is supplied through a 12V DC input jack using the specified 50W external power adaptor rated at 12V and 4.16A. For shipping and handling calculations, the gross weight is 9.9 kg and the carton measures 762.0 × 517.0 × 174.0 mm.

Performance Highlights

The 27-inch TFT LCD supports a maximum resolution of 1920 x 1080 with a 16:9 aspect ratio. Its specified contrast ratio is 4000:1, and the 178-degree horizontal and vertical viewing angles support viewing from a broad range of positions. Brightness is specified at 350 nits without touch and 275 nits with the projected capacitive touch layer used by this model. Ten touch points provide the monitor’s multi-touch capability, with touch communication handled through USB-HID.

What Makes It Different

The combination of open-frame construction, projected capacitive touch, three video input formats, and a dedicated USB touch interface gives the OF-270P-B2 a clearly defined integration profile. Its AG anti-glare surface complements the wide viewing angles, while the black glass and SECC metal construction establishes its physical design. The front panel carries IP54 compliance, and physical testing is identified as IK08. Certifications include CE, FCC, UL/cUL, RCM, and RoHS. The specified operating range is 10°C to 50°C at 20% to 80% relative humidity, non-condensing. Storage conditions are listed as 20°C to 60°C at 20% to 90% relative humidity, non-condensing.

Final Assessment

The MicroTouch OF-270P-B2 brings together a 27-inch 1920 x 1080 display, 10-point projected capacitive touch, anti-glare treatment, and VGA, HDMI, and DisplayPort connectivity in an open-frame chassis. Its VESA mounting pattern, USB-HID touch interface, documented physical ratings, wide viewing angles, and three-year warranty make its installation and performance specifications straightforward to assess for compatible integration requirements.
