31.5" 1920x1080 PCAP Open Frame Touch Monitor VGA/HDMI/DP 500 Nits

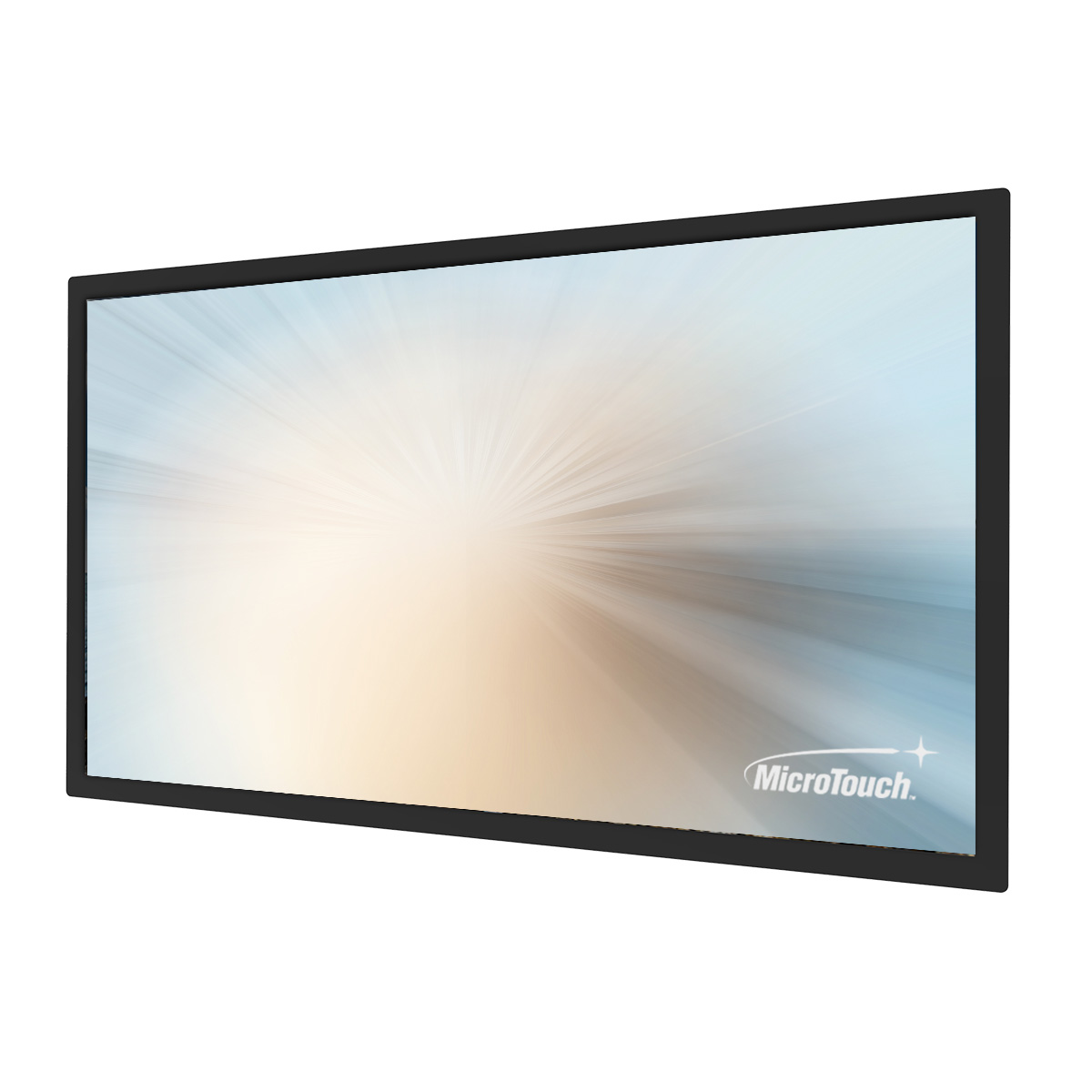

The MicroTouch OF-320P-A1 is a 31.5-inch open-frame touchscreen monitor built around a Full HD 1920 x 1080 TFT LCD panel. Its projected-capacitive touch system supports 30 touch points through a USB-HID Type B interface. With HDMI 1.3, DisplayPort, and VGA inputs, the monitor can connect to a range of video sources while keeping touch communication on a dedicated USB 2.0 connection. The black enclosure combines glass and SECC metal construction.

Ideal Use Cases

This model is suited to collaborative settings, point-of-service applications, and wayfinding installations. The 30-point PCAP interface supports touch-driven layouts that require more input capacity than a basic single-touch display. Its 31.5-inch screen provides a sizable interaction area while retaining a 16:9 format for Full HD content.

• Collaborative displays that can use multiple touch points
• Point-of-service interfaces requiring a large touch surface
• Wayfinding systems with Full HD visual content
• Open-frame installations that need HDMI, DisplayPort, or VGA connectivity

Why Choose This Model

The OF-320P-A1 brings together 30-point projected-capacitive touch, a 1920 x 1080 maximum resolution, and three commonly used video connections. Touch functionality operates through USB-HID using one USB 2.0 Type B port. This separation of video and touch connections gives integrators clearly defined interfaces for both functions.

Image specifications include a 3000:1 contrast ratio, 60Hz refresh rate, and 178-degree horizontal and vertical viewing angles. Brightness is specified at 500 nits without touch and 450 nits with the P-CAP layer. This distinction provides an accurate measure of the finished touchscreen configuration rather than relying solely on the underlying panel rating.

Installation and Integration

The monitor measures 739.4 x 433.85 x 61 mm and has a net weight of 10.4 kg. A 200 x 200 mm VESA pattern is provided for mounting. The listed 32-inch bracket kit reference is OF-BRKT-32A, while the referenced USB A-to-B cable part is USB-5313118047FV; these are identified product references, not a statement of included box contents.

Video connections consist of one VGA input, one DisplayPort input, and one HDMI 1.3 input. Touch data uses one USB 2.0 Type B port, and power is supplied through one AC power input. The power supply accepts 100 to 240VAC at 50 to 60Hz. The specified operating range is 0°C to 40°C with 20% to 80% relative humidity in non-condensing conditions.

For enclosure planning, the monitor uses glass and SECC metal construction with a black finish. Its front panel is IP65 compliant. The carton measures 890 x 155 x 630 mm, with a stated gross weight of 13.5 kg.

Performance Highlights

The 31.5-inch TFT LCD presents Full HD content at up to 1920 x 1080 resolution in a 16:9 aspect ratio. A 3000:1 contrast ratio supports differentiation between light and dark image areas, while the 60Hz refresh rate defines the display’s stated update performance. Horizontal and vertical viewing angles are both rated at 178 degrees.

For the complete P-CAP touchscreen assembly, brightness is rated at 450 nits. The underlying no-touch brightness specification is 500 nits. The PCAP system supports 30 touch points and communicates through USB-HID Type B, pairing the large display area with a defined touch interface.

What Makes It Different

The model’s distinguishing combination is its large open-frame format, 30-point projected-capacitive touch capability, and three video input standards. Integrators can select VGA, DisplayPort, or HDMI 1.3 according to the connected source. The front-panel IP65 compliance and IK08 ball-drop specification add documented construction-related criteria for projects that require them.

Certifications include CE, FCC, UL/cUL, CCC, and RoHS. The monitor also carries a three-year warranty. Its specified storage environment is 20°C to 60°C with 20% to 90% relative humidity under non-condensing conditions.

Final Assessment

The MicroTouch OF-320P-A1 is a focused choice for installations requiring a 31.5-inch Full HD touch surface, 30-point PCAP input, and open-frame integration. Its 450-nit touchscreen brightness, 3000:1 contrast ratio, 178-degree viewing angles, 200 x 200 mm VESA pattern, and VGA, DisplayPort, and HDMI connectivity provide concrete criteria for evaluating compatibility with collaborative, point-of-service, and wayfinding projects.
