65" DIGITAL SIGNAGE MACH II , 3840x2160

Ideal Use Cases

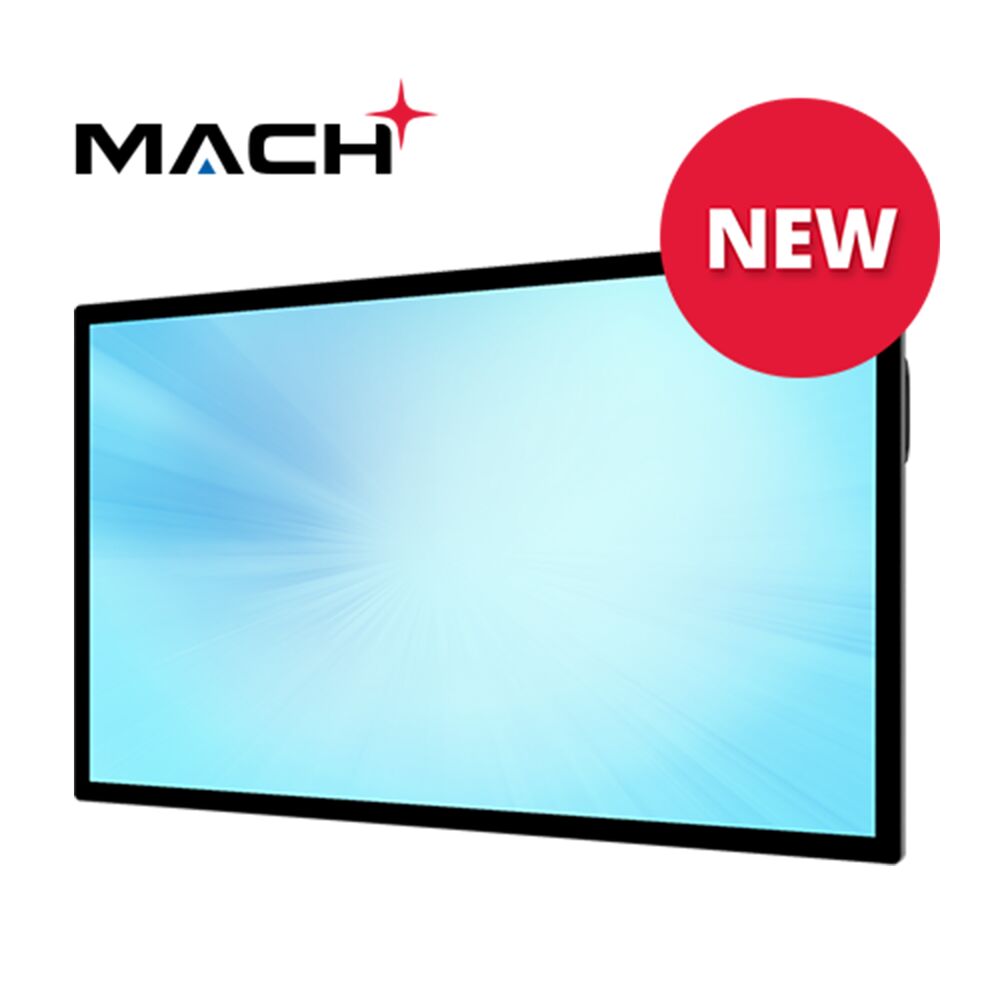

The MicroTouch M2-650DS-A1 combines a 65-inch TFT LCD panel with 3840 x 2160 resolution and projected capacitive touch. It is suited to large-format digital signage applications that require detailed visual content and direct interaction on the same display. Support for more than 55 touch points, including stylus support, accommodates interfaces designed for multiple simultaneous inputs.

Portrait, landscape, and tabletop orientations provide flexibility for different signage layouts. Anti-glare surface treatment helps manage reflections, while optical bonding integrates the touch surface with the display. The 16:9 aspect ratio supports widescreen content, and the black glass and SECC metal construction provides a consistent appearance for installed applications.

Why Choose This Model

The display delivers up to 500 nits of brightness without touch and 450 nits in its projected capacitive configuration. A 1200:1 contrast ratio, 60Hz refresh rate, and 178-degree horizontal and vertical viewing angles support clear presentation across the large panel. The projected capacitive touch system uses a USB-HID Type B interface, simplifying connection to compatible host systems.

Its connection selection covers current and legacy sources. Video inputs include two HDMI ports, one DisplayPort, and one VGA port. Additional integration options include RS232 through a DB9 connector, one RJ45 network port, two USB Type B touch ports, and one USB 2.0 Type A port. PC audio input and output, SPDIF output, and integrated 10W x 2 speakers support connected audio workflows.

Installation and Integration

The M2-650DS-A1 measures 1493.2 x 868.24 x 89.9 mm and has a net weight of 42 kg. VESA patterns of 600 x 600 mm and 600 x 400 mm provide defined mounting interfaces, while the supported portrait, landscape, and tabletop orientations allow the display to be positioned around the intended content format.

Power is supplied through a 100-240Vac, 50-60Hz AC input, with typical power consumption listed at 255 W. An IEC C13-type AC output is also provided. The display’s combination of HDMI, DisplayPort, VGA, USB, Ethernet, serial, and audio connections gives integrators several options for pairing it with media sources, touch hosts, network infrastructure, and external audio equipment.

Performance Highlights

The 65-inch TFT LCD panel presents content at a maximum resolution of 3840 x 2160. Its 16:9 format, 1200:1 contrast ratio, and 60Hz refresh rate establish the core image specifications, while the 178-degree horizontal and vertical viewing angles support visibility from a broad range of positions.

Touch performance is based on projected capacitive technology with more than 55 supported touch points and stylus support. Optical bonding and anti-glare treatment address the display surface, while USB-HID connectivity carries touch input to the connected system. For sound, the integrated pair of 10W speakers can be used with the available PC audio and SPDIF connections.

What Makes It Different

This model brings large-format 4K display capability and high-point-count projected capacitive touch together in one 65-inch unit. The front is rated IP65, and the listed ball-drop rating is IK06. Construction combines glass with SECC metal, and the housing is finished in black.

Listed certifications include FCC, CE, UL, CEC, UKCA, and ETSI EN 303 645. The specified operating range is 0°C to 40°C at 35% to 85% relative humidity, non-condensing. The specified storage range is 20°C to 60°C at 35% to 85% relative humidity, also non-condensing. Its shipping carton measures 1592 x 1012 x 195 mm.

Final Assessment

The MicroTouch M2-650DS-A1 is a feature-rich choice for 65-inch interactive digital signage. Its 3840 x 2160 resolution, projected capacitive touch system, more than 55 touch points, optical bonding, anti-glare treatment, flexible orientation support, and broad wired connectivity address both display performance and system integration. Front-only IP65 compliance, IK06 construction testing, integrated speakers, multiple VESA patterns, and a three-year warranty complete the specification set.
