55" 3840x2160 Digital Signage MACH II, PCAP, 500 Nits

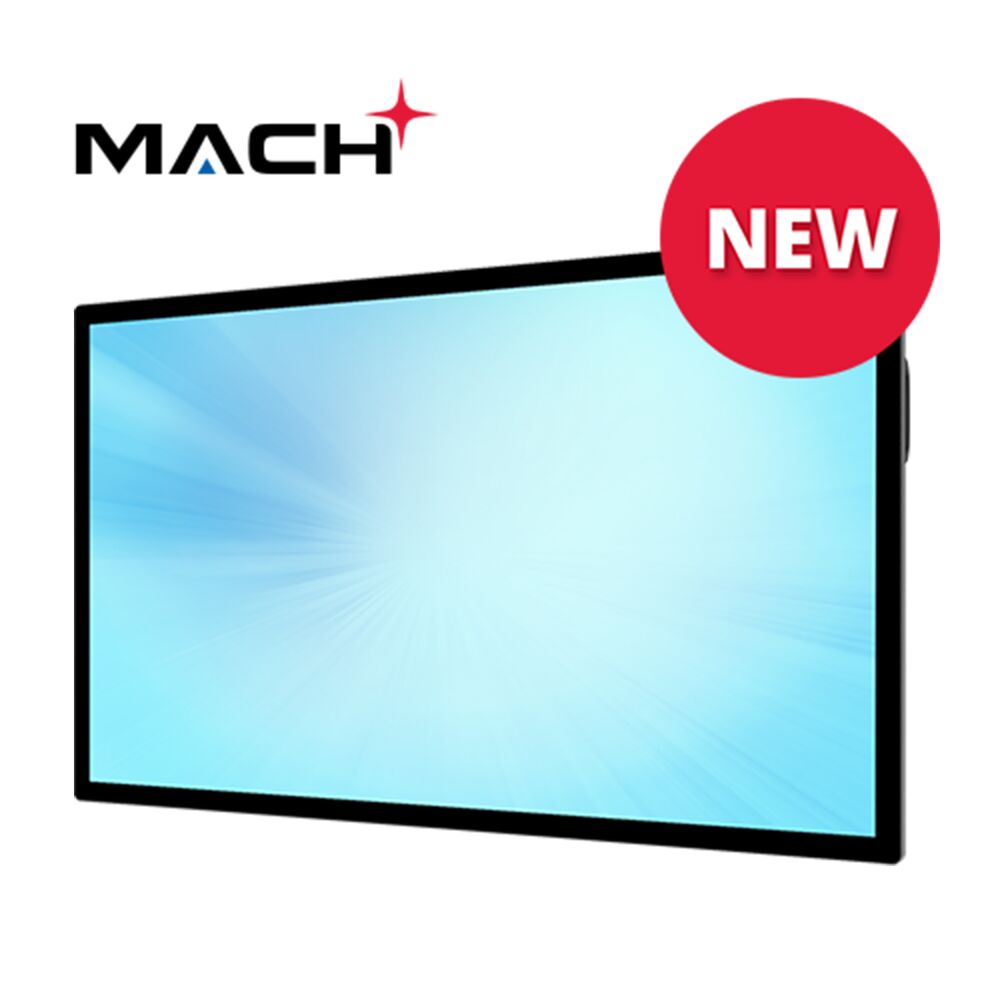

The MicroTouch M2-550DS-A1 is a 55-inch MACH II digital signage display combining a 3840 x 2160 TFT LCD panel with projected-capacitive touch. The PCAP configuration supports 55 touch points with stylus support and connects through a USB-HID Type B interface. Optical bonding and an anti-glare surface treatment complete the touch surface, while the black glass and SECC metal construction provides a substantial 30 kg enclosure.

Ideal Use Cases

This model is suited to interactive digital signage installations that require a large touch surface, high-resolution content, and flexible positioning. It can operate in portrait, landscape, or tabletop orientation, allowing the same display platform to support vertically formatted signage, conventional widescreen layouts, or horizontal touch applications. The 55-point PCAP interface and stylus support also make it appropriate where detailed, simultaneous, or pen-based interaction is required.

Its combination of HDMI, DisplayPort, VGA, USB, serial, network, and audio connections accommodates installations that need to work with different source and control interfaces. The IP65-rated front and IK06 ball-drop specification are additional considerations for environments where the display face requires defined protection.

Why Choose This Model

The M2-550DS-A1 brings touch interaction and a 3840 x 2160 maximum resolution together in a 55-inch format. Brightness is specified at 500 nits without touch and 450 nits in the projected-capacitive configuration. The panel also provides a 1200:1 contrast ratio, 16:9 aspect ratio, 60 Hz refresh rate, and 178-degree horizontal and vertical viewing angles.

Connectivity is broad for a digital signage display. Video inputs include two HDMI ports, one DisplayPort, and one VGA port. Touch connectivity is provided through two USB Type B ports, while a USB 2.0 Type A port is also included. Additional interfaces consist of an RS232 DB9 serial port, one RJ45 network port, PC audio input and output, and SPDIF output. Integrated audio is delivered by two 10 W speakers.

Installation and Integration

The display measures 1275 x 745.8 x 77.7 mm and supports a 400 x 400 mm VESA mounting pattern. Its portrait, landscape, and tabletop orientation options provide flexibility when planning the physical installation. The carton measures 1378 x 874 x 185 mm, while the display itself has a net weight of 30 kg.

Power is supplied through a 100-240 VAC, 50-60 Hz input, with typical power consumption specified at 175 W. An IEC C13-type AC output is also provided. For system integration, USB-HID touch operation offers a defined Type B interface, while RS232, RJ45, and the available video connections provide multiple paths for incorporating the display into a larger installation.

The specified operating range is 0°C to 40°C at 35% to 85% relative humidity, non-condensing. The stated storage range is 20°C to 60°C at 35% to 85% relative humidity, also non-condensing.

Performance Highlights

The 55-inch TFT LCD panel presents content at up to 3840 x 2160 resolution with a widescreen 16:9 aspect ratio. Its 60 Hz refresh rate supports standard signage presentation, while the 1200:1 contrast ratio defines the panel’s light-to-dark performance. Viewing angles are specified at 178 degrees horizontally and vertically, supporting visibility across a wide viewing area.

For touch operation, the projected-capacitive layer supports 55 touch points and stylus input. Optical bonding and anti-glare treatment are specified for the display surface. The touch-equipped configuration has a rated brightness of 450 nits; the underlying no-touch brightness specification is 500 nits.

What Makes It Different

This model distinguishes itself through the combination of a 55-inch 3840 x 2160 display, high-point-count PCAP touch, stylus support, optical bonding, and multiple installation orientations. Its physical design uses glass and SECC metal, with a black housing, IP65 protection at the front only, and an IK06 ball-drop specification.

The connection set also extends beyond current digital video inputs. Two HDMI inputs and DisplayPort are accompanied by VGA, RS232, USB touch interfaces, USB Type A, RJ45, PC audio connections, and SPDIF output. Certifications listed for the model include FCC, CE, UL, CEC, UKCA, and ETSI EN 303 64.

Final Assessment

The MicroTouch M2-550DS-A1 is a large-format interactive digital signage model for installations requiring 3840 x 2160 resolution, projected-capacitive touch, stylus support, and portrait, landscape, or tabletop positioning. Its 450-nit PCAP brightness, 55 touch points, integrated 10 W x 2 speakers, extensive wired connectivity, 400 x 400 mm VESA pattern, front-only IP65 rating, and three-year warranty define a well-documented configuration for planned signage integration.
