31.5" 1920x1080 PCAP Digital Signage Touch Monitor VGA/DVI-D/HDMI

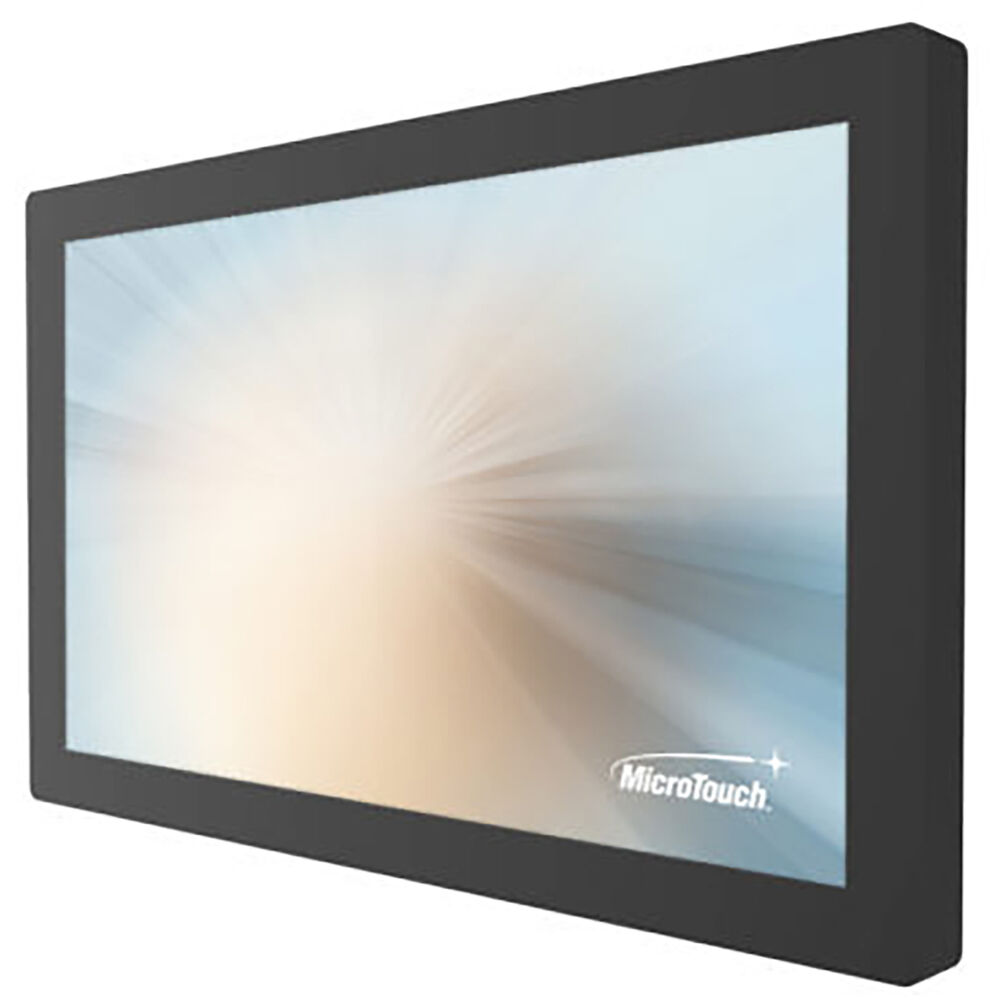

The MicroTouch DS-320P-A1 is a 31.5-inch TFT LCD digital signage touch monitor built around a 1920 x 1080 display and projected capacitive touch technology. Its 10-point touch system communicates through a USB-HID Type B interface, while VGA, DVI-D, and HDMI inputs provide three options for connecting a video source. The black glass and SECC metal construction supports portrait, landscape, and tabletop positioning.

Ideal Use Cases

This model is suited to digital signage installations that require direct, multi-point touch interaction on a 31.5-inch screen. Its supported portrait and landscape orientations accommodate both vertical and horizontal content, while tabletop placement provides another option for touch-focused configurations. The 178-degree horizontal and vertical viewing angles help preserve screen visibility when the display is viewed from different positions. A front panel rated as IP65 compliant also makes the monitor relevant to installations where front-surface protection is an important requirement.

Why Choose This Model

The DS-320P-A1 combines 10-point projected capacitive touch with a dedicated USB 2.0 Type B touch interface. Because the touch connection uses USB-HID, touch communication is handled separately from the selected video input. Video connectivity includes one VGA port, one DVI-D port, and one HDMI port, allowing the display to work with different source connection types. The screen has a 16:9 aspect ratio, 1200:1 contrast ratio, and a 60 Hz refresh rate.

Installation and Integration

The monitor measures 781.5 x 476.6 x 66.8 mm and has a net weight of 15.0 kg. A 400 x 200 mm VESA mounting pattern is provided for compatible mounting hardware. Installers can configure the display in portrait, landscape, or tabletop orientation according to the content and physical layout. Power is supplied through one AC input, with support for 100 to 240 Vac at 50 to 60 Hz. The separate VGA, DVI-D, HDMI, and USB touch connections allow video and touch interfaces to be selected and routed independently. Its enclosure combines glass with SECC metal and uses a black housing.

Performance Highlights

The 31.5-inch TFT LCD panel provides a maximum resolution of 1920 x 1080 in a 16:9 format. Brightness is specified at 400 nits without touch and 360 nits with the projected capacitive touch layer. A 1200:1 contrast ratio supports differentiation between bright and dark image areas, while the 60 Hz refresh rate provides the stated display update rate. Horizontal and vertical viewing angles are both rated at 178 degrees, supporting visibility across a wide viewing range.

What Makes It Different

Beyond its display and touch specifications, the DS-320P-A1 includes several physical and compliance details relevant to integration. The front panel is IP65 compliant, and the monitor carries an IK07 ball-drop rating. Listed certifications and compliance marks include CE, UL/cUL, CCC, and RoHS. Its specified operating range is 0 degrees C to 40 degrees C at 20% to 80% relative humidity, non-condensing. The stated storage range is 20 degrees C to 60 degrees C at 20% to 90% relative humidity, non-condensing. The combination of multi-touch input, three video connection formats, flexible orientation, and VESA mounting consolidates the primary display and installation requirements into one model.

Final Assessment

The MicroTouch DS-320P-A1 offers a clearly defined set of capabilities for 31.5-inch interactive digital signage: 1920 x 1080 resolution, 10-point projected capacitive touch, USB-HID touch communication, and VGA, DVI-D, and HDMI video inputs. Its 360-nit brightness with PCAP, 178-degree viewing angles, 400 x 200 mm VESA pattern, and portrait, landscape, or tabletop positioning provide practical configuration options. Front-panel IP65 compliance, an IK07 rating, and a three-year warranty complete the supplied specification set.
