31.5" 1920x1080 PCAP Digital Signage Touch Monitor 400 Nits

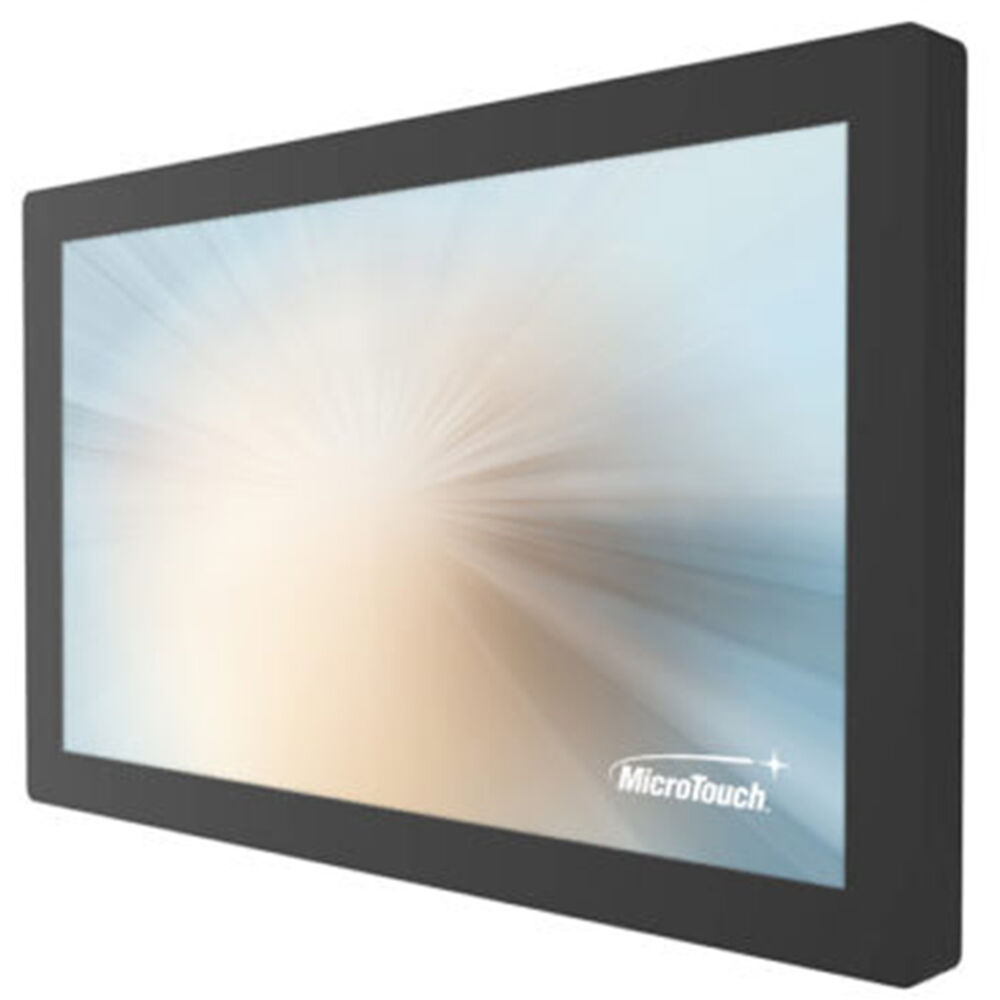

The MicroTouch DS-320P-A2 is a 31.5-inch TFT LCD projected-capacitive touch monitor configured for digital signage projects that require a large interactive display. Its 1920 x 1080 maximum resolution, 16:9 aspect ratio, 60Hz refresh rate, and 10-point touch system combine display and input functions in a black glass and SECC metal enclosure. HDMI, DVI-D, and VGA connections handle video, while a dedicated USB 2.0 Type-B USB-HID interface carries touch input.

Ideal Use Cases

This model is suited to interactive digital signage and touch-driven information displays where users need direct, multi-point control. The 31.5-inch screen provides a substantial viewing and interaction area without moving to an oversized display format. Horizontal and vertical viewing angles are both specified at 178 degrees, supporting installations where content may be viewed from different positions. Its 16:9 format also aligns with widescreen 1920 x 1080 content.

Why Choose This Model

The DS-320P-A2 combines 10-point projected-capacitive touch with three video input formats. HDMI, DVI-D, and VGA give integrators multiple connection choices, and the touch interface follows the USB-HID format through a USB 2.0 Type-B port. The front panel is IP65 compliant, while the listed ball-drop rating is IK07. The monitor also carries CE, UL/CUL, FCC, and RoHS certifications and is supplied with a three-year warranty.

Installation and Integration

The enclosure measures 781.5 mm wide, 476.6 mm high, and 66.8 mm deep. Net weight is 15.0 kg, and the specified mounting pattern is VESA 400 x 200 mm. These measurements allow mounting hardware and supporting structures to be planned before installation. Power is provided through one AC power input, with an accepted supply range of 100 to 240Vac at 50 to 60Hz. Integration requires a selected HDMI, DVI-D, or VGA video connection plus the USB Type-B connection when touch input is used. The shipping carton measures 650 x 945 x 185 mm, and gross packaged weight is 18.0 kg.

Performance Highlights

The TFT LCD supports a maximum resolution of 1920 x 1080, a 1200:1 contrast ratio, and a 60Hz refresh rate. Brightness is specified as 400 nits without touch and 360 nits with the projected-capacitive touch layer, making the 360-nit figure the relevant value for the complete PCAP configuration. The 178-degree horizontal and 178-degree vertical viewing specifications help maintain visibility across a wide viewing area. Ten supported touch points allow compatible touch content to accept multiple simultaneous contacts.

What Makes It Different

A key distinction is the combination of a 31.5-inch interactive surface, USB-HID touch, and HDMI, DVI-D, and VGA video connectivity in one model. Glass and SECC metal construction provide the specified physical structure, while the black housing offers a neutral finish for signage installations. The operating range is 0 to 40 degrees C at 20% to 80% relative humidity, non-condensing. Storage specifications are 20 to 60 degrees C at 20% to 90% relative humidity, non-condensing. Front-panel IP65 compliance, an IK07 ball-drop rating, listed regulatory certifications, and the three-year warranty complete the supplied specification set.

Final Assessment

The MicroTouch DS-320P-A2 is a practical selection for digital signage installations that need a 31.5-inch 1920 x 1080 display with projected-capacitive touch. Its 10-point USB-HID interface, three video inputs, 400 x 200 mm VESA pattern, wide viewing angles, and documented enclosure specifications give integrators concrete parameters for system planning. For brightness comparisons, buyers should distinguish between the listed 400-nit panel value without touch and the 360-nit value for the finished PCAP monitor.
