24" 1920x1080 PCAP MACH Desktop Touch Monitor 350 Nits

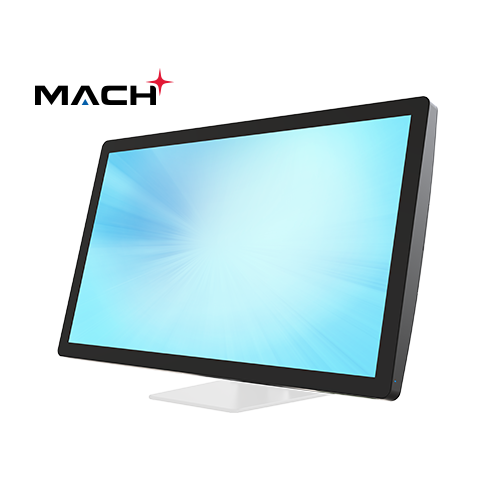

The MicroTouch MACH M1-238DT-A1 is a 24-inch-class desktop touch monitor built around a 23.8-inch TFT LCD and projected-capacitive interface. It presents Full HD 1920 x 1080 imagery in a 16:9 format, supports 10 touch points, and combines HDMI with a broad USB selection. A black housing, etched anti-glare surface, and durable glass face give the monitor a focused specification for interactive desktop installations.

Ideal Use Cases

This model fits operator desks, interactive counters, information stations, and other applications that need direct touch input on a Full HD canvas. Portrait, landscape, and tabletop orientations let integrators adapt the display to content and available space. Its 527.04 x 296.46 mm active area provides a sizable interface for controls, forms, media, or side-by-side information. Front-only IP65 compliance, an IK07 ball-drop rating, and 7H-hardness glass also make it relevant where the front surface requires a defined level of protection.

Why Choose This Model

The combination of 10-point projected-capacitive touch and USB-HID connectivity over Type-C keeps interaction specifications clear. The touch-equipped configuration is rated at 315 nits, while the underlying no-touch brightness figure is 350 nits; listing both values makes performance expectations precise. A 1000:1 contrast ratio, 16.7 million colors, 178-degree horizontal and vertical viewing angles, and a 60 Hz refresh rate support consistent Full HD presentation. The etched anti-glare treatment is useful when reflections would compete with on-screen detail.

Installation and Integration

Video can enter through HDMI at up to 1920 x 1080 at 60 Hz. The USB-C connection accepts DisplayPort video and power through Alt Mode, and the monitor also provides four USB-C peripheral connections plus one USB 3.1 Type-A port. Touch communicates as USB-HID through Type-C. For sound, two 2-watt stereo speakers are built in, with a 3.5 mm audio-output mini-jack available for external audio. Power connects through a 12V DC input; the stated external 60W AC adapter accepts 100-240VAC at 50/60 Hz.

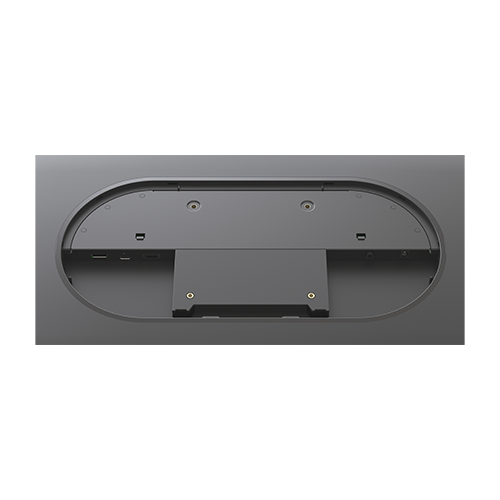

The monitor-only chassis measures 571.8 x 341.3 x 42.2 mm and weighs 5.1 kg. A 100 x 100 VESA pattern supports integration beyond tabletop placement. Listed accessory models include the MA-STAND-A1 stand, MA-MSR-A1 MSR, MA-CAM-A1 camera, MA-LBAR-A1 light bar, and MA-SCAN-A1 barcode scanner; inclusion is not specified.

Performance Highlights

At its maximum resolution of 1920 x 1080, the panel delivers a 16 ms response time and a 60 Hz refresh rate. The 178-degree viewing specification in both axes helps preserve visibility across portrait, landscape, or tabletop use. Typical power consumption is 46W. The operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing, while the stated storage range is 20°C to 60°C at 20% to 90% relative humidity, non-condensing. These values give installers concrete environmental boundaries for deployment and storage.

What Makes It Different

Rather than offering touch as an isolated feature, the M1-238DT-A1 pairs its PCAP surface with peripheral-ready connectivity. Four USB-C peripheral ports and a USB 3.1 Type-A port can centralize compatible attached devices, while HDMI and USB-C video options provide two defined integration paths. The enclosure combines plastic, glass, and SECC metal, and the front is specified to IP65. Certifications include CE, FCC, UL/cUL, NOM, RoHS, and UKCA. This combination of touch, expansion, mounting, audio, and front-surface durability is the model’s central distinction.

Final Assessment

This model is a strong match when the requirement is a 23.8-inch Full HD touch display with 10-point PCAP input, wide viewing angles, anti-glare 7H glass, and multiple wired interfaces. Its most important selection details are the 315-nit brightness with P-CAP installed, 16 ms response time, 60 Hz refresh rate, front-only IP65 compliance, and 100 x 100 VESA pattern. Buyers should select it for those documented capabilities and note the stated three-year warranty. Accessory availability and package contents should be confirmed separately because the source data identifies part numbers but does not state what is included.
