21.5" 1920x1080 PCAP Slimline Kiosk Touch Monitor VGA/HDMI/DP 250 Nits

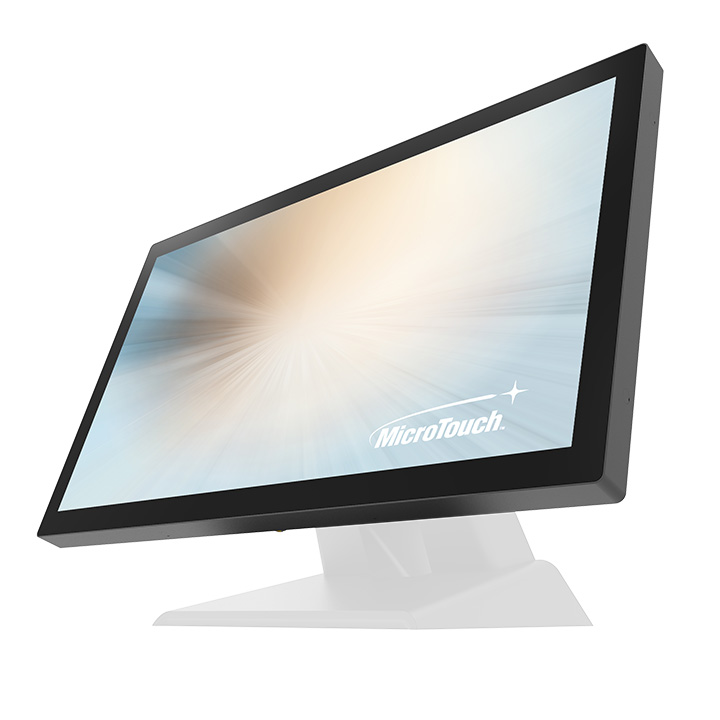

The MicroTouch SK-215P-A1 is a slimline 21.5-inch TFT LCD touch monitor designed for kiosk installations. It combines 1920 x 1080 resolution with projected-capacitive technology, 10 touch points, and a USB-HID Type B touch interface. HDMI, DisplayPort, and VGA connections accommodate multiple video sources, while the black glass, SECC metal, and ABS construction provides a structured enclosure for installed use.

Ideal Use Cases

This model is suited to kiosks that require a 16:9 touch display with a compact 46 mm depth. Its 10-point projected-capacitive touchscreen supports touch-driven interfaces, while the 178-degree horizontal and vertical viewing angles help maintain image visibility from different positions. The front panel is IP65 compliant, and the rear is rated IPX1.

The available VGA, HDMI, and DisplayPort inputs also make the monitor practical for installations involving different generations of host hardware. Touch communication is handled separately through the USB 2.0 Type B connection.

Why Choose This Model

The SK-215P-A1 brings its key display, touch, mounting, and connection features together in one 21.5-inch format. Its 1920 x 1080 maximum resolution presents detailed interface content, while the 1000:1 contrast ratio and 16:9 aspect ratio provide defined image presentation. Brightness is rated at 250 nits without touch and 217 nits through the projected-capacitive touch layer.

• 21.5-inch TFT LCD panel
• Projected-capacitive touchscreen with 10 touch points
• USB-HID Type B touch interface
• VGA, HDMI, and DisplayPort video inputs
• 100 x 100 mm VESA mounting pattern
• Three-year warranty

Installation and Integration

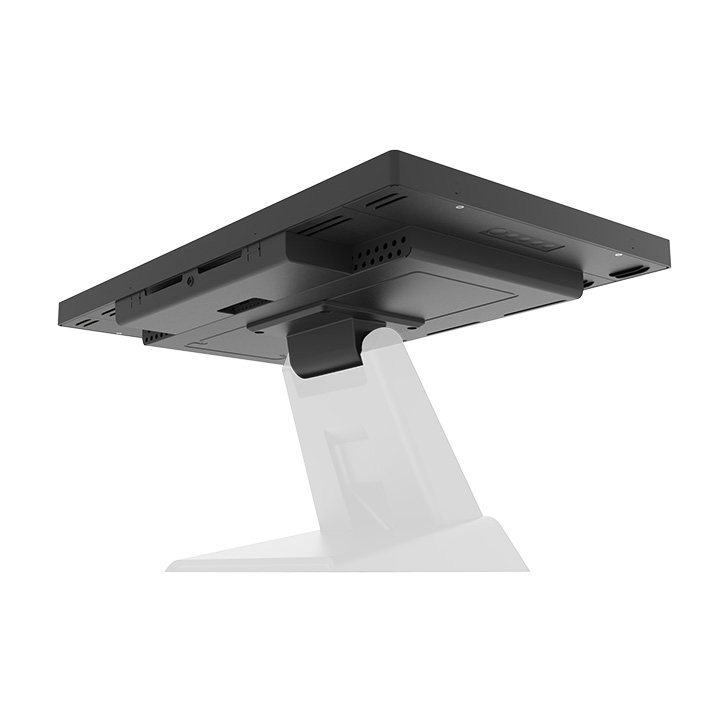

The enclosure measures 517.4 x 313.3 x 46.0 mm and weighs 4.4 kg net. A 100 x 100 mm VESA pattern supports integration with a compatible mounting solution. MicroTouch identifies the IS-000-A1 industrial stand as the primary stand, sold separately, and lists the BRKT-KIT-A2 bracket kit for this model.

Video sources can connect through one VGA DB15 port, one HDMI port, or one DisplayPort connection. Touch data uses one USB 2.0 Type B port. Power enters through a 2.1 mm 12V DC jack, with the external power adaptor specified at a maximum of 60W at 12V and 5A. An RJ45 connection is provided for remote OSD operation, and the Rem45-A1 remote OSD is sold separately.

Performance Highlights

The display supports a maximum resolution of 1920 x 1080, a 1000:1 contrast ratio, and wide 178-degree horizontal and vertical viewing angles. Its projected-capacitive configuration delivers 217-nit brightness at the touch surface, compared with the listed 250-nit panel brightness without touch. These specifications provide a clear distinction between the underlying panel output and brightness after the touch layer is applied.

The operating range is 0 degrees C to 40 degrees C at 20% to 80% relative humidity, non-condensing. The listed storage range is 20 degrees C to 60 degrees C at 10% to 90% relative humidity, non-condensing.

What Makes It Different

The combination of a slim 46 mm enclosure, 10-point projected-capacitive touch, three video connection types, and a dedicated USB-HID touch interface distinguishes this model within an installed kiosk configuration. The IP65-compliant front panel and IPX1 rear rating are clearly specified, as are the glass, SECC metal, and ABS materials used in its construction.

The monitor is also listed with CE, FCC, UL 62368, TUV 60950, CCC, BSMI, and LVD 65950 certifications. Remote OSD connectivity provides another integration option when direct access to the display controls is limited by the installation.

Final Assessment

The MicroTouch SK-215P-A1 is a focused choice for a 21.5-inch kiosk touch display requiring 1920 x 1080 resolution, 10 touch points, and VGA, HDMI, and DisplayPort connectivity. Its VESA mounting pattern, slim dimensions, USB-HID touch interface, specified panel protection, wide viewing angles, and three-year warranty provide concrete criteria for evaluating it against an installation’s display, connection, and mounting requirements.
