21.5" 1920x1080 PCAP MACH Desktop Touch Monitor 350 Nits

Ideal Use Cases

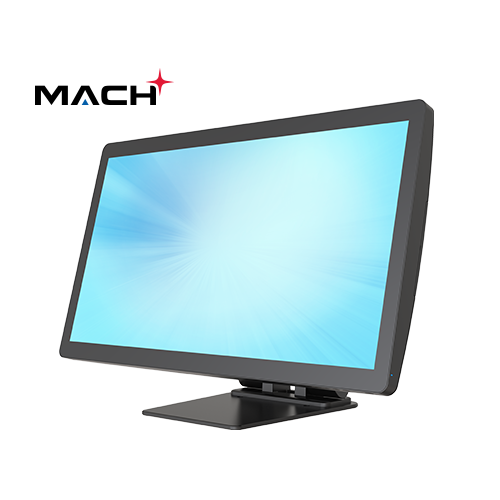

The MicroTouch M1-215DT-A1 MACH is suited to interactive desktop installations that require a 21.5-inch display, 1920 x 1080 maximum resolution, and direct multi-touch input. Its support for portrait, landscape, and tabletop orientations allows the same monitor to accommodate horizontal interfaces, vertical layouts, or lower-angle interaction. Ten projected-capacitive touch points make it appropriate for applications built around gestures or simultaneous contact. The available USB connections and listed references for an MSR, camera, light bar, and barcode scanner also support configurations that combine touch interaction with external peripherals.

Why Choose This Model

This model combines a 21.5-inch TFT LCD panel with a projected-capacitive touch surface and a USB-HID Type-C touch interface. The etched anti-glare treatment helps address reflections, while the durable glass carries a 7H hardness specification. Front-only IP65 compliance, an IK07 ball-drop rating, and construction using plastic, glass, and SECC metal provide clearly documented physical characteristics for installation planning. The black housing keeps the appearance neutral across desktop environments. MicroTouch also specifies a three-year warranty for the monitor.

Installation and Integration

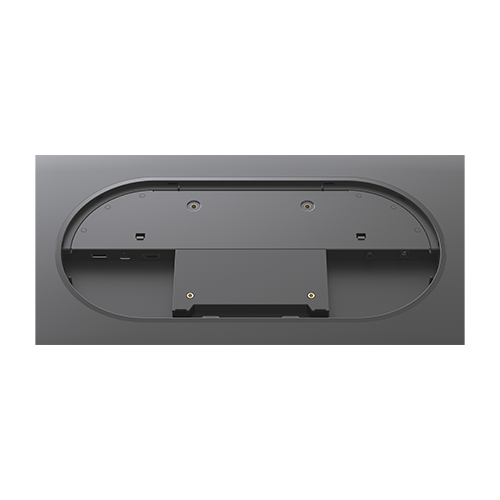

The M1-215DT-A1 supports 100 x 100 mm VESA mounting and can be positioned in portrait, landscape, or tabletop orientation. Its monitor-only net weight is 5.75 kg. Video can be accepted through one HDMI input at up to 1920 x 1080 and 60Hz or through the USB-C connection supporting DisplayPort Alt Mode video and power acceptance. Touch communication uses USB-HID over Type C. The connection panel also provides four USB-C peripheral ports, one USB 3.1 Type-A port, a 3.5 mm audio output, and a 12V DC input. Power is specified through a 60W external AC adapter rated for 100VAC to 240VAC at 50/60Hz. The stated operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing.

Performance Highlights

The display supports a maximum resolution of 1920 x 1080, a 16:9 aspect ratio, 16.7 million colors, and a 1000:1 contrast ratio. Brightness is specified at 350 nits without touch and 315 nits with the projected-capacitive touch layer. Horizontal and vertical viewing angles are both rated at 178 degrees. A 6.5 ms response time and 60Hz refresh rate define its motion performance. Integrated audio is supplied by two 2W stereo speakers, with the separate 3.5 mm output available for an external audio connection.

What Makes It Different

The connection mix extends beyond basic video input. One USB-C port accepts DisplayPort Alt Mode video and power, while four additional USB-C ports are designated for peripheral connections. A USB 3.1 Type-A port adds another peripheral option, and HDMI provides a dedicated path for video up to 1080p at 60Hz. The active display area measures 478.66 x 260.28 mm. Listed module references include the MA-MSR-A1 MSR, MA-CAM-A1 camera, MA-LBAR-A1 light bar, and MA-SCAN-A1 barcode scanner. Certifications listed for the monitor are CE, FCC, UL/cUL, NOM, RoHS, and UKCA.

Final Assessment

The M1-215DT-A1 brings together 1080p display performance, 10-point projected-capacitive touch, flexible physical orientation, VESA mounting, integrated stereo audio, and a broad USB connection set. Its etched anti-glare surface, 7H durable glass, front-only IP65 compliance, and IK07 rating are specifically documented for the touch-facing design. For installations that need a 21.5-inch MACH desktop touch monitor with USB-C and HDMI integration, this model provides a defined set of display, touch, mounting, power, and peripheral specifications backed by a three-year warranty.
