17" 1280x1024 PCAP Open Frame Touch Monitor VGA/DVI 250 Nits

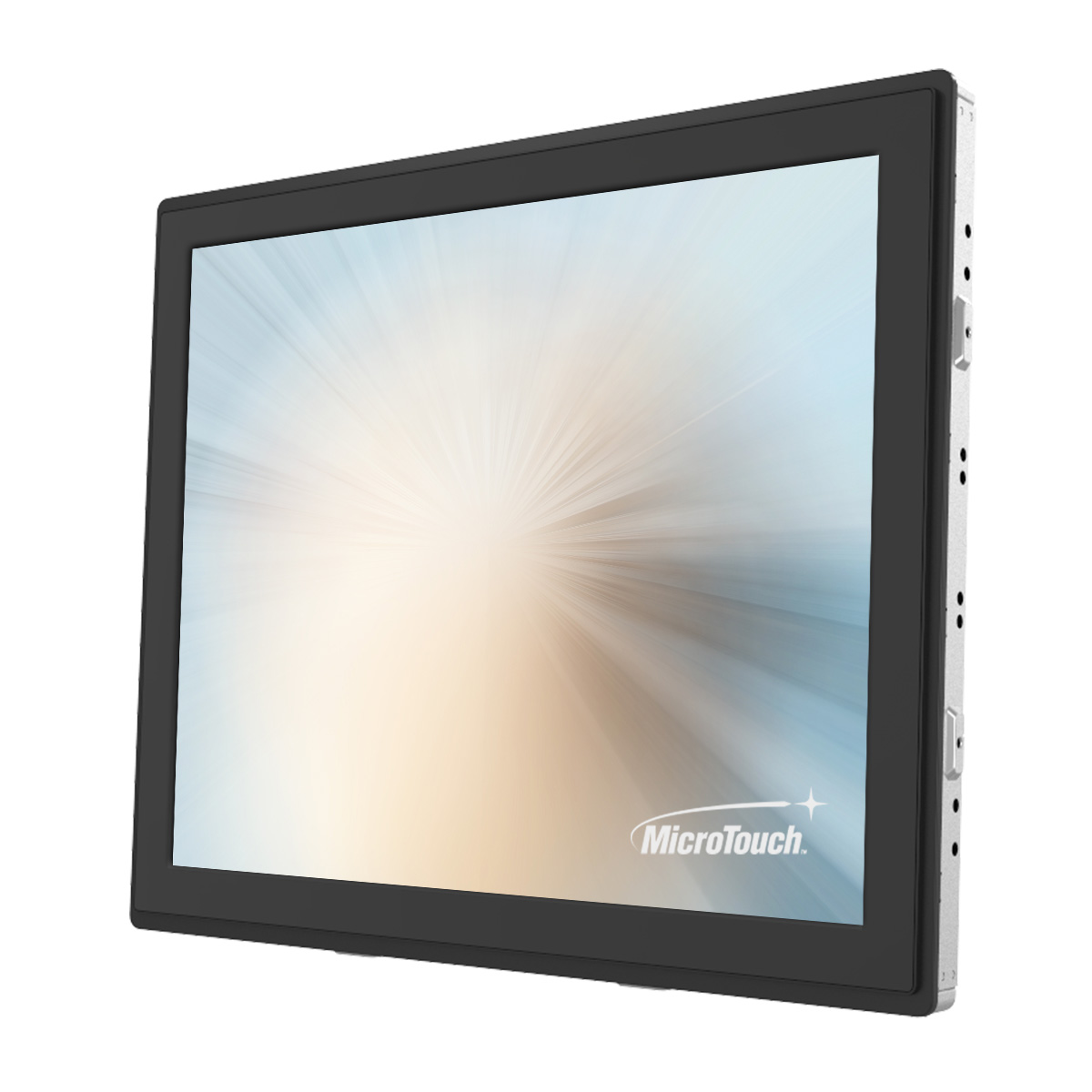

The MicroTouch OF-170P-A1 is a 17-inch open-frame TFT LCD monitor built around projected-capacitive touch technology. Its 10-point touch capability, USB-HID interface, 1280 x 1024 maximum resolution, and 5:4 aspect ratio provide a focused combination for integrations requiring touch interaction and a traditional screen format. VGA and DVI inputs support video connectivity, while the dark gray housing combines glass, SECC metal, and ABS plastic.

Ideal Use Cases

This model is suited to open-frame projects that call for a 17-inch touch display, a 5:4 viewing area, and compatibility with VGA or DVI video sources. It is also a practical match for systems that require 10 simultaneous touch points through a USB-HID Type B connection. The front panel’s IP65 compliance is relevant where the installed display face may encounter dust or water exposure within the stated compliance level. Its operating range of 0°C to 40°C and 20% to 80% relative humidity, non-condensing, provides clear environmental parameters for indoor system planning.

Why Choose This Model

The OF-170P-A1 brings its key display, touch, and mounting specifications together in one open-frame design. The projected-capacitive screen supports 10 touch points, and touch communication is handled through one USB 2.0 Type B port using USB-HID. The display produces up to 250 nits without touch and 215 nits with the P-CAP layer. An 800:1 contrast ratio and horizontal and vertical viewing angles of 160 degrees complete the stated image-performance profile.

The monitor also provides a defined physical construction for integration. Glass, SECC metal, and ABS plastic are used across the assembly, and the housing is finished in dark gray. Front-panel IP65 compliance is paired with an IPX1 rating at the rear. UL and CE/FCC certifications are listed, and the product is backed by a three-year warranty.

Installation and Integration

The monitor measures 394.0 x 330.0 x 57.1 mm and has a net weight of 4.8 kg. Two VESA mounting patterns are supported: 75 x 75 mm and 100 x 100 mm. These dimensions, weight, and mounting patterns provide the core information needed to plan the enclosure, supporting structure, and service clearance for an open-frame installation.

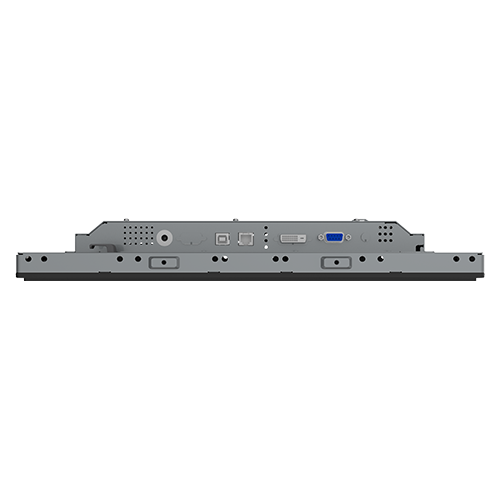

Video connections consist of one VGA port and one DVI port. Touch data uses the dedicated USB 2.0 Type B connection, and an RJ11 remote port is also provided. Power enters through a 2.1 mm 12V DC jack. The specified external power adaptor is rated at 50W, 12V, and 4.16A. For transport planning, the listed carton measures 480.0 x 415.0 x 160.0 mm, with a gross weight of 7.0 kg.

Operating conditions are specified at 0°C to 40°C and 20% to 80% relative humidity, non-condensing. Storage conditions are listed as 20°C to 60°C and 10% to 90% relative humidity, non-condensing. These limits should be considered when selecting the installation location and planning storage or transport.

Performance Highlights

The 17-inch TFT LCD panel supports a maximum resolution of 1280 x 1024 in a 5:4 aspect ratio. This format preserves the proportions required by systems designed around 5:4 content. Brightness is rated at 250 nits without the touch layer and 215 nits with projected-capacitive touch. The 800:1 contrast ratio defines the stated separation between light and dark image areas, while the 160-degree horizontal and 160-degree vertical viewing angles provide the specified viewing range.

Touch interaction is a central capability of this model. The projected-capacitive surface supports up to 10 touch points, and the USB-HID interface supplies a clearly defined connection between the monitor and its host system.

What Makes It Different

The OF-170P-A1 combines open-frame construction with 10-point projected-capacitive touch and both VGA and DVI video inputs. Its dual VESA patterns give integrators two documented mounting configurations, while the dedicated USB-HID touch port keeps touch communication separate from the video connection. The front and rear compliance ratings are also explicitly differentiated: IP65 at the front panel and IPX1 at the rear.

Its specifications cover the practical details needed for integration, including enclosure dimensions, net weight, carton measurements, power-input format, external adaptor rating, construction materials, environmental ranges, certifications, and warranty coverage. This makes the model straightforward to evaluate against defined mechanical, electrical, display, and touch requirements.

Final Assessment

The MicroTouch OF-170P-A1 is a clearly specified 17-inch open-frame touch monitor for systems requiring 1280 x 1024 resolution, a 5:4 aspect ratio, 10-point projected-capacitive input, and VGA or DVI connectivity. With USB-HID touch control, two VESA mounting patterns, front-panel IP65 compliance, and a three-year warranty, it offers a cohesive feature set for compatible open-frame integrations.
