19" 1280x1024 PCAP Slimline Kiosk Touch Monitor VGA/HDMI/DP 250 Nits

Ideal Use Cases

The MicroTouch SK-190P-A1 is a 19-inch slimline kiosk touch monitor for installations requiring a 5:4 display, projected-capacitive interaction, and multiple wired video options. Its 10-point touch screen communicates through a USB-HID Type B interface, supporting kiosk layouts built around USB touch input. The display provides a maximum resolution of 1280 x 1024, while its 416 x 344 x 46.6 mm enclosure gives integrators exact dimensions for planning a counter, wall, panel, or equipment installation. The black housing and 100 x 100 mm VESA pattern further support use in purpose-built kiosk assemblies.

Why Choose This Model

This model combines a 19-inch TFT LCD with projected-capacitive touch and three common video interfaces: VGA through a DB15 connector, HDMI, and DisplayPort. That selection allows the monitor to connect to host systems offering legacy analog video or current digital outputs. Touch data uses a separate USB 2.0 Type B connection. The panel has a 1000:1 contrast ratio, a 5:4 aspect ratio, and published viewing angles of 170 degrees horizontally and 160 degrees vertically. Its front panel is IP65 compliant, while the rear is rated IPX1, providing clearly defined protection specifications for installation planning.

Installation and Integration

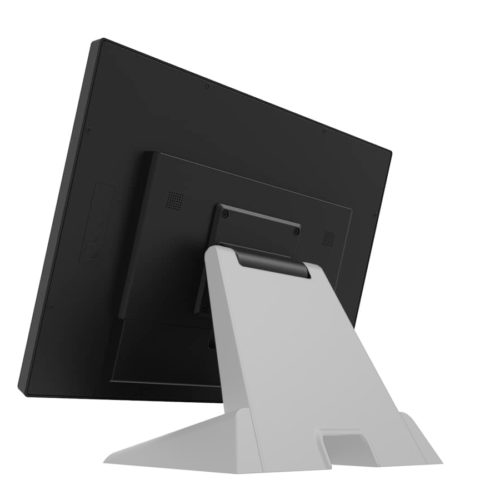

The SK-190P-A1 weighs 4.4 kg and supports a 100 x 100 mm VESA mounting pattern. Its slim 46.6 mm depth can be evaluated alongside the complete 416 mm width and 344 mm height when designing an enclosure or mounting surface. Video connections include one VGA port, one HDMI port, and one DisplayPort input. One USB 2.0 Type B port carries the touch interface, and an RJ11 connection is provided for remote OSD control. Power connects through a 2.1 mm 12V DC jack, with a specified external power adaptor rating of up to 60W at 12V and 5A. The IS-000-A1 primary industrial stand and Rem45-A1 remote OSD are identified as sold-separately accessories. A BRKT-KIT-A1 bracket kit is also listed for the model.

Performance Highlights

The TFT LCD delivers a maximum 1280 x 1024 resolution in a 5:4 format, providing the defined pixel layout needed for compatible kiosk interfaces. Brightness is specified at 250 nits without touch and 225 nits with the projected-capacitive layer. This distinction gives system designers the relevant installed brightness figure when using the monitor as configured with P-CAP touch. A 1000:1 contrast ratio accompanies the panel, while the 170-degree horizontal and 160-degree vertical viewing-angle specifications help determine suitable screen placement and user positioning.

What Makes It Different

The monitor combines glass, SECC metal, and ABS plastic construction within a black enclosure. Its touch system recognizes 10 points and uses the USB-HID interface through a Type B connector. The combination of projected-capacitive touch, VGA, HDMI, DisplayPort, remote OSD connectivity, and VESA mounting creates a well-defined integration package for kiosk projects. The operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Published certifications include CE, FCC, UL 62368, CB 62368, and CCC. The unit is also backed by a three-year warranty. For shipping and handling calculations, the gross weight is 6.3 kg and the carton measures 500 x 425 x 133 mm.

Final Assessment

The MicroTouch SK-190P-A1 is a focused kiosk display for projects that need a 19-inch, 5:4 touch interface with a maximum 1280 x 1024 resolution. Its 10-point P-CAP system, 225-nit touch brightness, 1000:1 contrast ratio, three video-input formats, and USB-HID touch connection provide concrete integration specifications. VESA compatibility, front-panel IP65 compliance, remote OSD connectivity, documented environmental limits, and a three-year warranty round out a monitor designed around clearly specified kiosk installation requirements.
