15.6" 1920x1080 All-In-One Win10 I5-7300U Touch Device 450 Nits

Ideal Use Cases

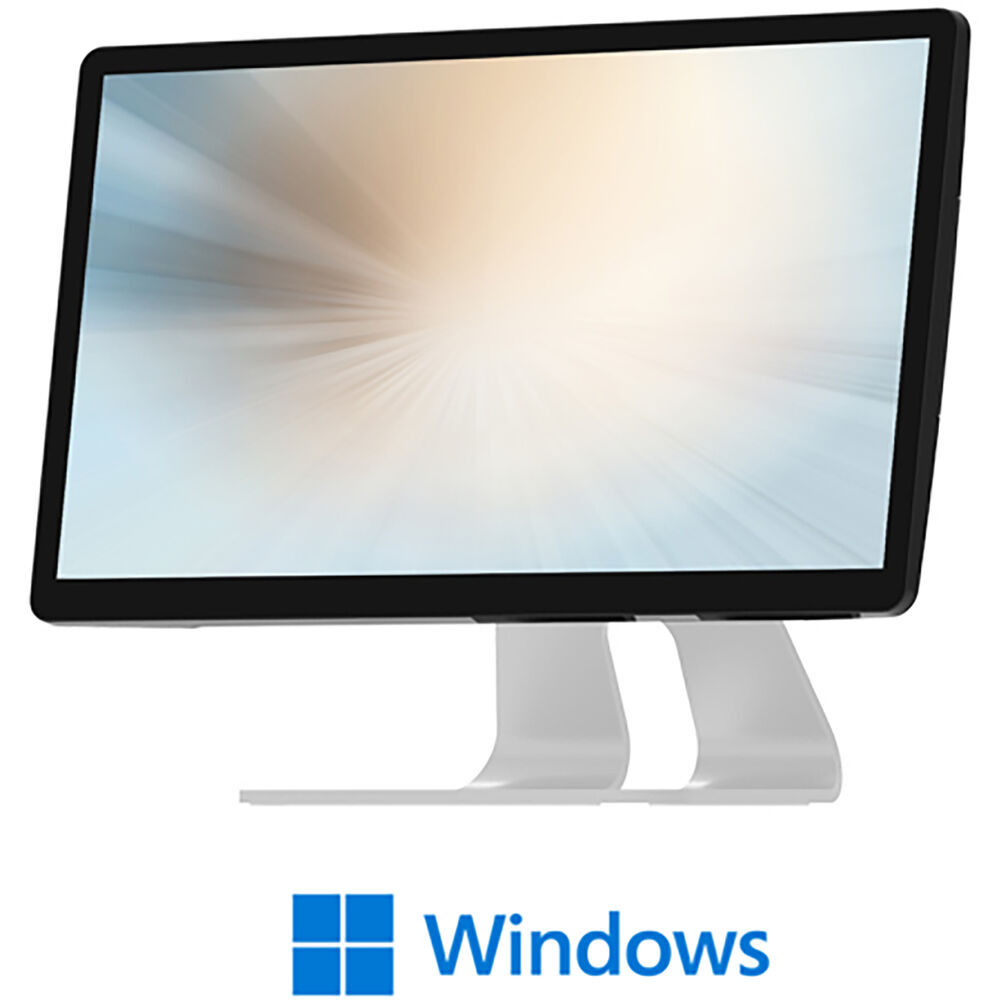

The MicroTouch IC-156P-AW2-W10 combines a 15.6-inch Full HD display, projected capacitive touch, and Windows computing in one dark gray device. Its 10-point touchscreen supports interactive applications that benefit from direct, multi-touch input. The 100 mm x 100 mm VESA pattern also makes the system suitable for installations where the computer and display need to be mounted as a single integrated unit. Optional accessories include the MSR-156-A1 magnetic stripe reader, CAM-000-A1 camera, and SS-156-A1 stand, each sold separately.

Why Choose This Model

This configuration is built around an Intel Core i5-7300U processor running at 2.60 GHz with 3 MB cache, Intel HD Graphics 620, 8 GB of DDR4 2133 MHz So-DIMM memory, and a 128 GB SSD. Windows 10 IoT 2019 LTSC is installed, providing the operating environment specified for this model. Combining these components with the integrated touchscreen reduces the need to coordinate a separate display, touch interface, and computer.

The 15.6-inch TFT LCD has a native and maximum resolution of 1920 x 1080, a 16:9 aspect ratio, and a stated contrast ratio of 1000:1. Brightness is rated at 450 nits without touch and 405 nits with the projected capacitive touch layer. Horizontal and vertical viewing angles are both specified at 178 degrees.

Installation and Integration

Installation options include a 100 mm x 100 mm VESA mounting pattern and the separately sold SS-156-A1 stand. The computer-only enclosure measures 369.1 x 223.7 x 35.2 mm and has a net weight of 4.01 kg. Its housing uses plastic, glass, and SECC metal, while the display surface is protected by durable glass rated at 7H hardness.

The connection panel provides two USB 2.0 Type-A ports, two USB 3.0 Type-A ports, and two USB 3.1 Type-C ports. One Type-C port supports 5V at 3A output. The other supports DisplayPort Alt Mode and PD 2.0, with 5V/3A or 12V/2.5A output up to 30W. Additional connections include one RJ45 Gigabit LAN port, one Mini DisplayPort, and a DC input for the 24V 120W external power adapter.

Wireless connectivity includes 802.11 a/b/g/n/ac Wi-Fi and Bluetooth 4.2 with BLE support. The specified operating range is 0 to 40 degrees Celsius at 20% to 80% relative humidity, non-condensing. Certifications listed for the system are CE, FCC, LVD, UL, and RoHS.

Performance Highlights

The Core i5-7300U, 8 GB of system memory, Intel HD Graphics 620, and 128 GB SSD form a clearly defined hardware platform for the integrated Windows 10 IoT system. Visual content is presented at Full HD resolution, while the 10-point projected capacitive interface enables multiple simultaneous touch inputs. Two integrated 2W speakers provide built-in audio without requiring separate speakers for basic system output.

The display specifications support clear placement planning: 1920 x 1080 resolution, 16:9 formatting, 1000:1 contrast, and 178-degree horizontal and vertical viewing angles. The P-CAP configuration is rated at 405 nits, while the display specification without touch is 450 nits.

What Makes It Different

The IC-156P-AW2-W10 brings its display, touch layer, processing hardware, storage, wireless connectivity, wired networking, speakers, and Windows 10 IoT operating system into a single enclosure. Its port selection accommodates both established USB Type-A peripherals and USB Type-C connections. DisplayPort Alt Mode on one Type-C port and the separate Mini DisplayPort expand the available video connection options.

The accessory references also define available expansion paths without treating those items as included equipment. The compatible magnetic stripe reader is model MSR-156-A1, the camera is CAM-000-A1, and the stand is SS-156-A1. All three are identified as sold separately. Referenced cable models are USB-5313120024FV for the 2000 mm USB-C-to-C cable and USB-5313120025FV for the 2000 mm USB-C-to-A cable.

Final Assessment

This MicroTouch all-in-one delivers a 15.6-inch Full HD, 10-point touch interface with an Intel Core i5 processor, 8 GB of DDR4 memory, a 128 GB SSD, Windows 10 IoT 2019 LTSC, and extensive wired and wireless connectivity. Its VESA pattern, durable 7H glass, integrated speakers, and documented accessory options provide a well-defined foundation for a mounted or stand-based touch installation.
