15.6" 1920x1080 PCAP Slimline Kiosk Touch Monitor VGA/HDMI/DP 450 Nits

Ideal Use Cases

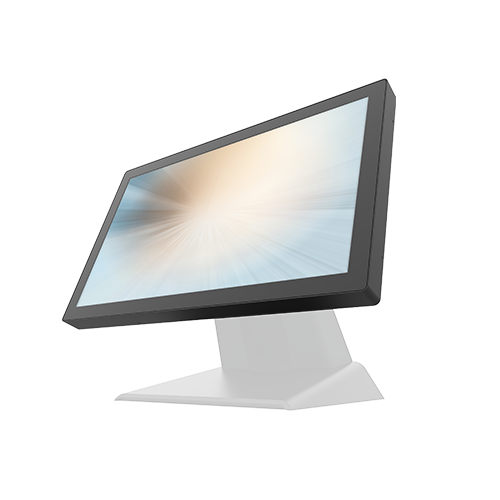

The MicroTouch SK-156P-A1 is a 15.6-inch slimline touch monitor intended for kiosk installations that require Full HD image detail and direct, multi-point interaction. Its projected-capacitive touchscreen supports 10 touch points through a USB-HID Type B interface. The 16:9 display format, 1920 x 1080 maximum resolution, and VGA, HDMI, and DisplayPort inputs make it suitable for integration with systems using several common video connections. A dark gray housing and 100 x 100 mm VESA pattern support installations where the monitor will be incorporated into a kiosk enclosure, attached to a compatible mount, or paired with the separately sold IS-000-A1 industrial stand.

Why Choose This Model

This model combines a compact 15.6-inch TFT LCD with projected-capacitive touch and multiple video input options. The touch interface uses one USB 2.0 Type B connection and operates as USB-HID, simplifying its connection to a compatible host system. Image specifications include a 1000:1 contrast ratio and 178-degree horizontal and vertical viewing angles. Brightness is rated at 450 nits without touch and 405 nits in the P-CAP configuration, clearly distinguishing the underlying panel rating from brightness through the touchscreen. The front panel is IP65 compliant, while the rear is rated IPX1. A three-year warranty and CE, FCC, CB, and UL certifications are also specified.

Installation and Integration

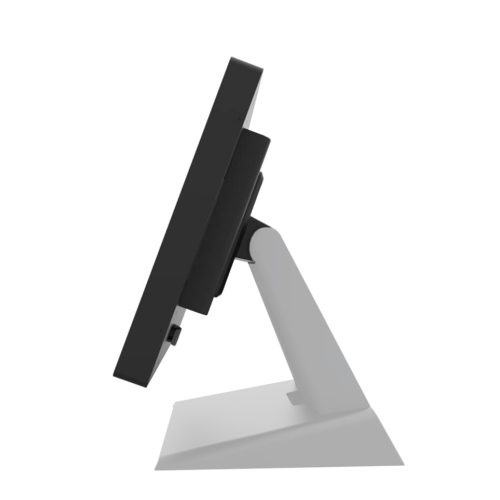

The SK-156P-A1 measures 381.0 x 230.3 x 46.0 mm and has a net weight of 3.5 kg. Its standard 100 x 100 mm VESA pattern provides a defined mounting interface for compatible installation hardware. MicroTouch identifies the IS-000-A1 primary industrial stand as a separately sold option and lists the BRKT-KIT-A1 bracket kit. Video sources can connect through one VGA DB15 port, one HDMI port, or one DisplayPort connection. Touch data uses the dedicated USB 2.0 Type B port. Power enters through a 2.1 mm 12V DC jack, with the technical data specifying an external adapter rated for a maximum of 60W at 12V and 5A.

Performance Highlights

The 1920 x 1080 maximum resolution presents content in a widescreen 16:9 aspect ratio. Its 1000:1 contrast ratio supports separation between bright and dark image areas, while the specified 178-degree horizontal and 178-degree vertical viewing angles provide broad viewing coverage. For the projected-capacitive touch configuration, brightness is rated at 405 nits. The 10-point touch capability allows the display to register multiple simultaneous contact points when supported by the connected system and software. Touch communication is handled through USB-HID rather than through the video cable, so installation requires both a selected video connection and the USB Type B touch-interface connection.

What Makes It Different

The combination of Full HD resolution, 10-point projected-capacitive touch, and three video interface formats gives this monitor a clearly defined integration profile. The construction uses glass, SECC metal, and ABS plastic in a dark gray finish. Environmental specifications cover operation from 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Storage conditions are listed as 20°C to 60°C at 10% to 90% relative humidity, non-condensing. The carton measures 455 x 315 x 150 mm, with a gross packaged weight of 5.8 kg. These documented physical, environmental, and interface specifications allow installers to evaluate fit before selecting mounting and connection accessories.

Final Assessment

The MicroTouch SK-156P-A1 is a focused choice for a slimline kiosk display requiring a 15.6-inch Full HD panel and 10-point P-CAP touch. Its 405-nit brightness in the touch configuration, 1000:1 contrast ratio, wide specified viewing angles, and USB-HID touch interface provide concrete performance characteristics for system planning. VGA, HDMI, and DisplayPort inputs offer flexibility across different source connections, while the VESA mounting pattern and listed stand and bracket options support installation planning. Front-panel IP65 compliance, the documented operating range, recognized certifications, and a three-year warranty complete a specification set intended for structured kiosk integration.
