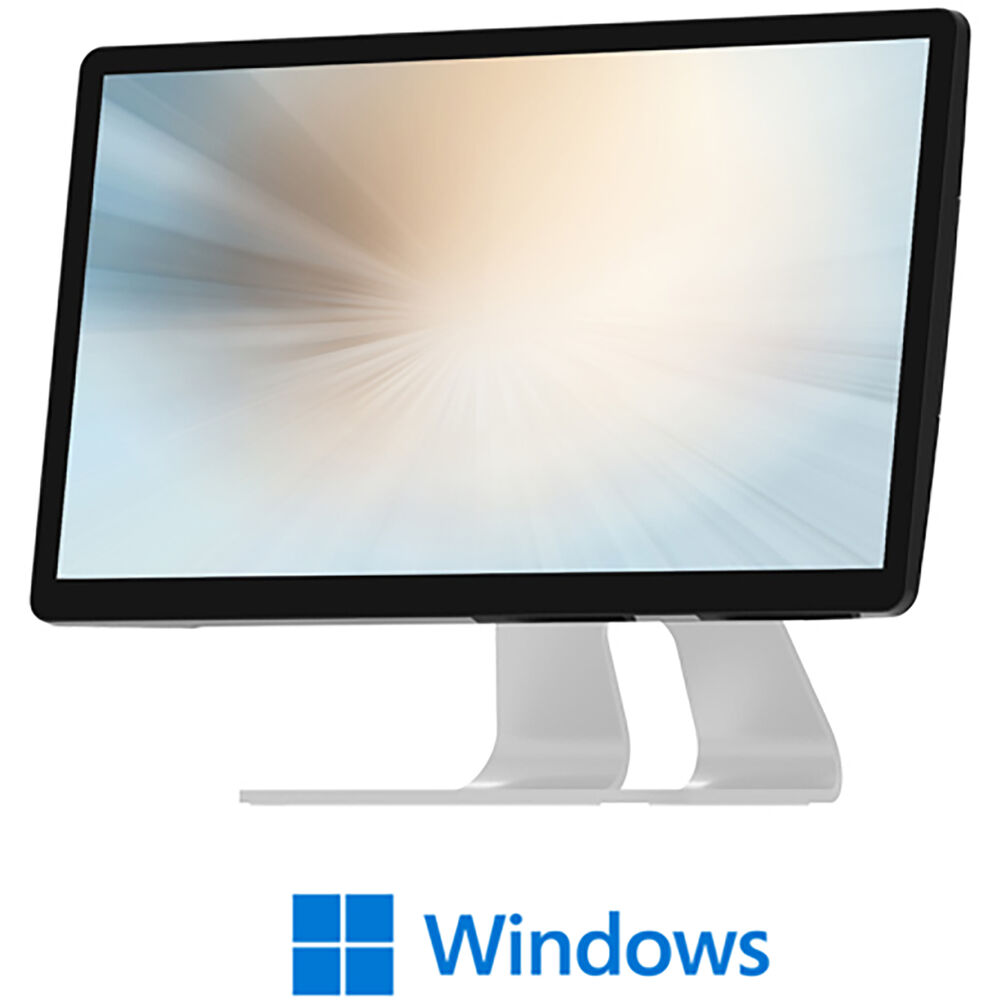

15.6" 1920x1080 All-In-One Win10 J1900 Touch Device 450 Nits

Ideal Use Cases

The MicroTouch IC-156P-AW1-W10 combines a 15.6-inch touch display, Windows computing hardware, storage, wireless connectivity, speakers, and multiple device ports in one dark gray enclosure. It is suited to installations that require a Full HD touch interface without a separate computer. The 10-point projected capacitive touch screen supports multi-touch interaction, while the 100 x 100 mm VESA pattern accommodates compatible mounting hardware. Dual RS232 connections, four USB ports, Gigabit Ethernet, Wi-Fi, and Bluetooth provide options for integrating local peripherals and network services.

Why Choose This Model

The 15.6-inch TFT LCD has a native and maximum resolution of 1920 x 1080 with a 16:9 aspect ratio and 1000:1 contrast ratio. Viewing angles extend to 178 degrees horizontally and vertically. Brightness is rated at 450 nits without touch and 405 nits with the projected capacitive touch layer. The display surface uses durable 7H-hardness glass, providing a defined protective surface for touch operation. A three-year warranty accompanies the unit.

Internal components include a Celeron J1900 processor operating at 2.0 GHz with 2MB cache, integrated Intel HD Graphics, 8GB of DDR3L 1333 MHz system memory, and a 128GB SSD. The installed operating system is Windows 10 IoT 2019 LTSC.

Installation and Integration

The monitor-only enclosure measures 369.1 x 223.7 x 35.2 mm and has a net weight of 4.01 kg. It supports a 100 x 100 mm VESA mounting pattern. The separately available SS-156-A1 stand offers an identified stand option, while the MSR-156-A1 magnetic stripe reader and CAM-000-A1 camera are also listed as separately sold accessories.

Power is supplied through a four-pin 12V/5A DC input using a 60W external power adapter. A separate two-pin 12V/1A DC output is available for a compatible connected device. Integration ports include four USB 2.0 Type-A connections, two RS232 ports using RJ50 connectors, one RJ45 Gigabit LAN port, one VGA output, and one line output. Wireless connectivity covers 802.11 a/b/g/n/ac Wi-Fi and Bluetooth 4.2 with BLE support.

The specified operating range is 0 to 40 degrees Celsius at 20% to 80% relative humidity, non-condensing. The listed storage range is 20 to 60 degrees Celsius at 10% to 90% relative humidity, non-condensing.

Performance Highlights

The Celeron J1900, 8GB of memory, and 128GB solid-state storage form a self-contained computing platform behind the touch display. Integrated Intel HD Graphics drives the 1920 x 1080 panel, while Windows 10 IoT 2019 LTSC provides the installed operating environment. The projected capacitive screen recognizes up to 10 touch points, supporting interactions that use more than one simultaneous contact.

Two integrated 2W speakers provide built-in audio, and the line output allows connection to an external audio device. Wired Gigabit LAN and dual-band-capable 802.11 a/b/g/n/ac Wi-Fi provide two network connection methods. Bluetooth 4.2 adds BLE support for compatible wireless devices.

What Makes It Different

This model brings display, touch input, processing, memory, SSD storage, networking, and audio into a single unit. Its connection set extends beyond standard USB and Ethernet by including two RS232 ports, VGA, line output, and a powered 12V/1A DC output. These interfaces make the hardware adaptable to installations involving compatible serial, video, audio, USB, and network equipment.

The enclosure combines plastic, glass, and SECC metal and is finished in dark gray. The monitor weighs 4.01 kg net, while the listed gross package weight is 6.01 kg. Carton dimensions are 470 x 380 x 340 mm. Listed certifications and compliance marks include CE, FCC, LVD, UL, CCC, BSMI, and RoHS.

Final Assessment

The IC-156P-AW1-W10 is a clearly specified 15.6-inch all-in-one touch device built around Full HD resolution, 10-point projected capacitive input, Windows 10 IoT 2019 LTSC, and a Celeron J1900 platform. Its 8GB of memory, 128GB SSD, broad wired and wireless connectivity, VESA mounting support, integrated speakers, durable glass surface, and three-year warranty provide a complete configuration for compatible touch-based installations.
