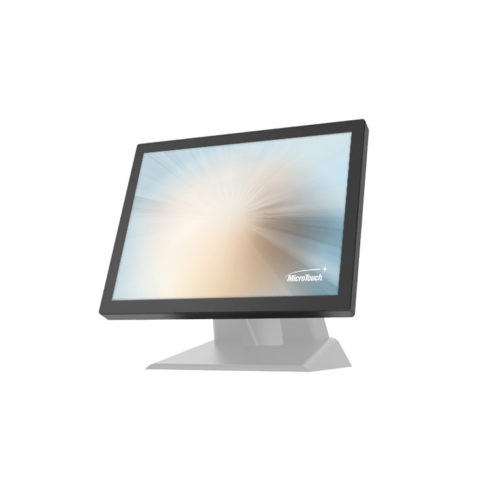

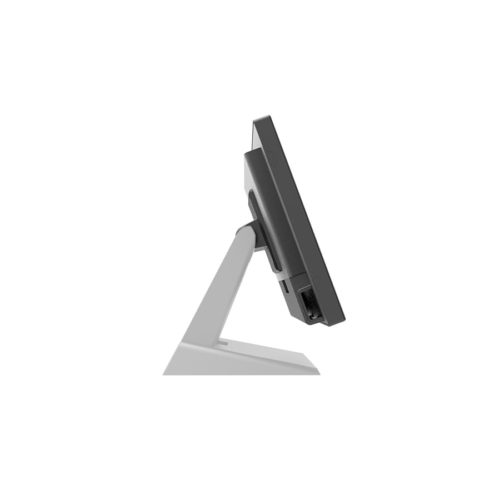

15" 1024x768 PCAP Slimline Kiosk Touch Monitor VGA/HDMI/DP 350 Nits

The MicroTouch SK-150P-A1 is a slim 15-inch TFT LCD touch monitor configured for fixed kiosk and integrated touch applications. Its 4:3 display provides a native 1024 x 768 resolution, while the projected-capacitive touch screen supports up to 10 simultaneous touch points through a USB-HID Type B interface. VGA, HDMI, and DisplayPort inputs provide three video connection choices in a black housing measuring 337.4 x 265.4 x 44.3 mm.

Ideal Use Cases

This model fits kiosk installations, embedded interactive displays, VESA-mounted touch terminals, and other fixed systems that require a compact 15-inch screen. The 4:3 aspect ratio is appropriate for interfaces designed around a 1024 x 768 workspace. Its 10-point projected-capacitive touch capability supports applications that use either single-touch input or multi-touch gestures. The front panel is IP65 compliant, while the rear is rated IPX1.

Why Choose This Model

The SK-150P-A1 combines touch, video flexibility, and a slim enclosure in one monitor. A USB 2.0 Type B port carries the USB-HID touch interface, keeping touch input separate from the selected video connection. The available VGA DB15, HDMI, and DisplayPort inputs accommodate different source hardware without limiting the installation to a single video format. A three-year warranty further defines the supplied product coverage.

Installation and Integration

A 100 x 100 mm VESA mounting pattern supports integration with compatible mounting hardware. The monitor can also be paired with the separately sold IS-000-A1 industrial stand. Its 44.3 mm depth helps preserve space inside a kiosk or mounted assembly, and its net weight is 2.7 kg. Power connects through a 2.1 mm 12V DC jack, with a maximum 60W external power adapter specified at 12V and 5A. An RJ11 connection is provided for remote on-screen display control, and the Rem11-A1 remote OSD is sold separately. The listed bracket kit is BRKT-KIT-A1.

Performance Highlights

The 15-inch TFT LCD panel delivers 1024 x 768 resolution at a 4:3 aspect ratio with an 800:1 contrast ratio. Brightness is rated at 350 nits without touch and 315 nits with the projected-capacitive touch layer. Horizontal viewing angle is specified at 160 degrees, with a vertical viewing angle of 150 degrees. The monitor operates from 0°C to 40°C at 20% to 80% relative humidity in non-condensing conditions.

What Makes It Different

The defining combination is a traditional 4:3 display format, 10-point projected-capacitive touch, and three video input standards. Construction uses glass, SECC metal, and ABS plastic in a black finish. The monitor carries CE, FCC, UL 62368, CB 62368, and CCC certifications. Matching listed cable references include HDMI V2.0 A-to-A, DisplayPort-to-DisplayPort V2, VGA PC99, and USB A-to-B cables, each identified by its corresponding MicroTouch part number. Storage conditions are specified from 20°C to 60°C and 10% to 90% relative humidity, non-condensing.

Final Assessment

The SK-150P-A1 is a focused choice for installations requiring a 15-inch 1024 x 768 touch display in a shallow, VESA-compatible chassis. Its USB-HID 10-point touch interface, VGA, HDMI, and DisplayPort connectivity, 315-nit P-CAP brightness, and IP65-compliant front panel address the core requirements of an integrated kiosk monitor. Separate stand and remote OSD options allow the installation to be configured around the intended mounting arrangement.
