15.6" 1024x768 PCAP Touch Monitor 350 Nits

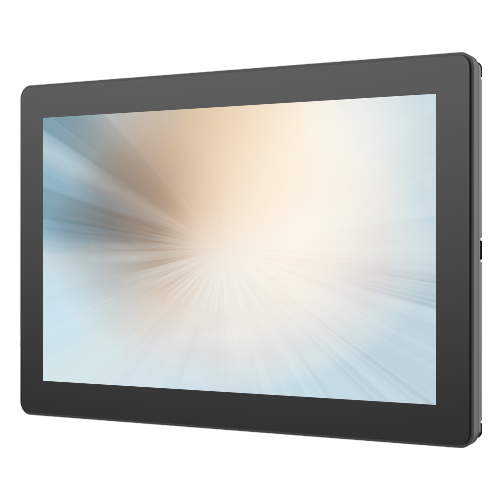

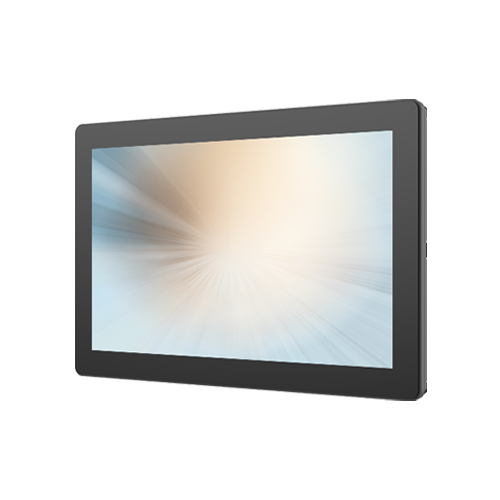

The MicroTouch OF-156P-A1 combines a 15.6-inch TFT LCD with 10-point projected-capacitive touch in a compact black housing constructed from glass and SECC metal. Its supplied technical specifications list a maximum resolution of 1920 x 1080, a 16:9 aspect ratio, 400-nit brightness with PCAP, a 1000:1 contrast ratio, and 178-degree horizontal and vertical viewing angles. USB-HID touch operation and VGA, DP+, and HDMI video inputs provide practical options for integrating the display with compatible host systems.

Ideal Use Cases

This model is suited to interactive installations that require a compact widescreen display, multi-touch input, and multiple wired video connections. The 10-point projected-capacitive interface supports applications designed around simultaneous touch input, while the front panel’s IP65 compliance is relevant where protection at the display face is part of the installation requirement. Its glass and SECC metal construction, black finish, IK08 ball-drop specification, and VESA mounting pattern also make it appropriate for equipment and enclosures requiring a defined, mountable display platform.

Why Choose This Model

The OF-156P-A1 brings its principal display, touch, and connection features together in one 15.6-inch unit. Touch data is handled through a USB-HID Type B interface, allowing the touch connection to remain distinct from the selected video input. The available HDMI, DP+, and VGA ports accommodate different wired video sources without limiting the installation to one connector format. Audio-out is also provided for systems that need to route audio to separate compatible equipment. A locking 12V DC jack helps secure the power connection at the monitor.

Installation and Integration

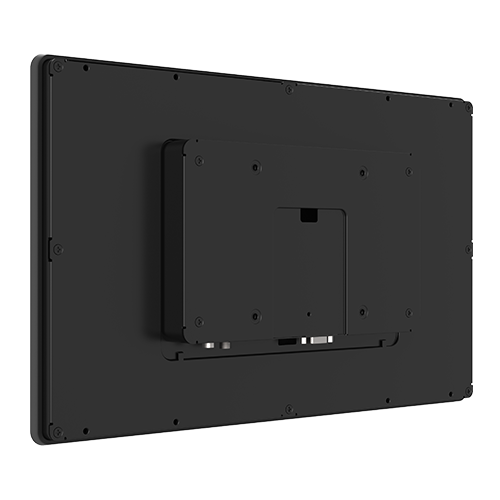

Without a stand, the monitor measures 398.4 x 245.8 x 42.2 mm and weighs 2.46 kg. A 100 x 100 VESA pattern provides a standardized mounting option for compatible hardware. Video can be connected through one VGA port, one DP+ port, or one HDMI port, while one USB 2.0 Type B connection carries the USB-HID touch interface. The connection set also includes an RJ45 serial port designated for a remote key and an audio-out port. Power is supplied through the locking 12V DC input using the specified 36W external power adaptor rated at 12V and 3A. These clearly separated connections simplify planning for video, touch, audio, remote-key, and power routing.

Performance Highlights

The supplied display specifications identify a 1920 x 1080 maximum resolution and a native 16:9 screen format. Brightness is rated at 400 nits with the projected-capacitive touch layer and 450 nits without touch. A 1000:1 contrast ratio supports separation between lighter and darker image content, while the listed 178-degree horizontal and 178-degree vertical viewing angles provide a broad viewing range. The projected-capacitive touchscreen recognizes up to 10 touch points and communicates through the standard USB-HID interface.

What Makes It Different

The OF-156P-A1 is distinguished by the combination of 10-point PCAP touch, a front panel compliant with IP65, an IK08 ball-drop specification, and a glass-and-metal structure. Its connectivity covers current HDMI and DP+ sources as well as VGA equipment, giving integrators three physical video-input choices. The locked DC connection, remote-key port, USB-HID touch interface, audio output, and VESA pattern further define the model as an integration-oriented monitor. Listed certifications include CE, FCC, CCC, UL/cUL, and RoHS.

Final Assessment

The MicroTouch OF-156P-A1 offers a focused specification set for installations needing a 15.6-inch widescreen display with projected-capacitive multi-touch. Its 1920 x 1080 maximum resolution, 400-nit PCAP brightness, broad viewing angles, varied video inputs, front-panel IP65 compliance, and 100 x 100 VESA mounting support practical system integration. The product is specified for operation from 0°C to 40°C at 20% to 80% relative humidity, non-condensing, and includes a three-year warranty.
