15" 1024x768 PCAP Medical Desktop Touch Monitor VGA/HDMI/DP 350 Nits

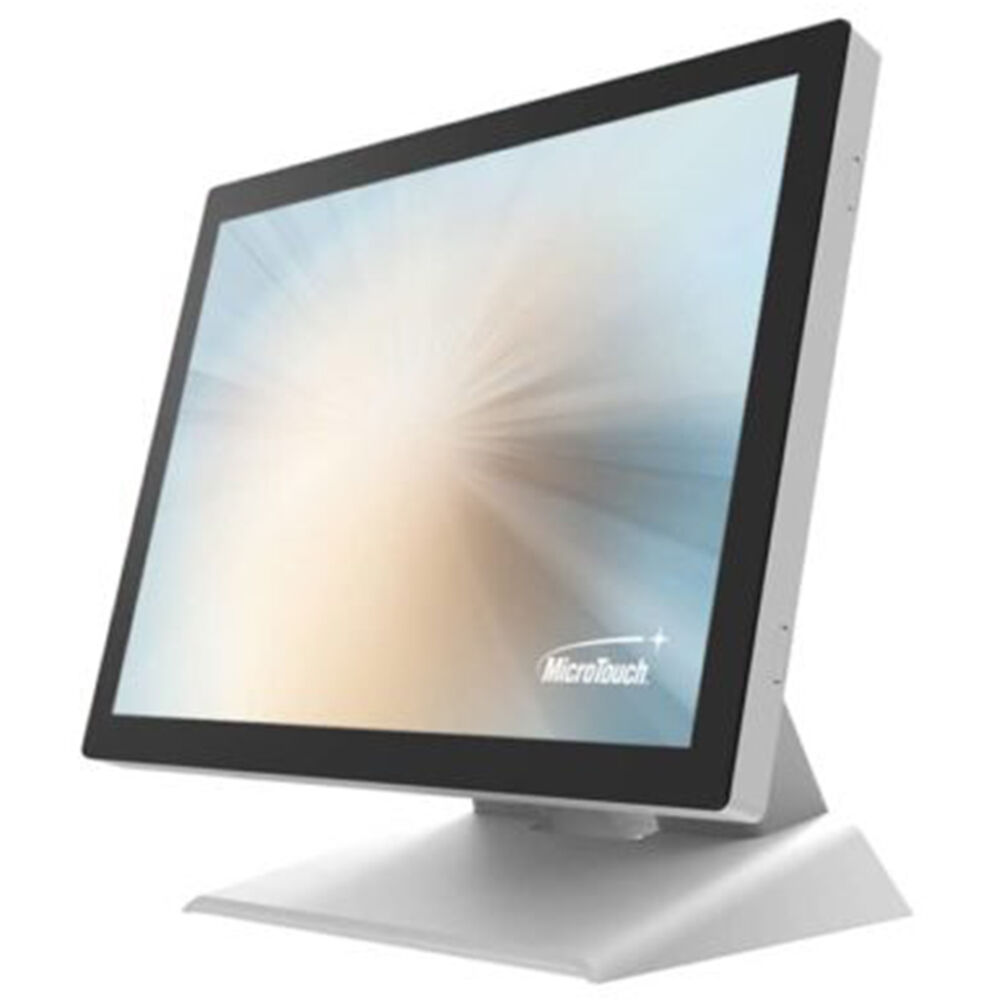

The MicroTouch DT-150P-M2 is a 15-inch medical desktop touch monitor built around a TFT LCD panel and 10-point projected capacitive touch. It delivers a maximum resolution of 1024 x 768 in a 4:3 aspect ratio, with anti-glare screen treatment and USB-HID touch communication. VGA, HDMI, and DisplayPort inputs provide three video connection options, while the white housing combines glass, SECC metal, and ABS plastic construction.

Ideal Use Cases

This model fits medical desktop environments that require a compact 4:3 display, multi-touch control, and flexible video connectivity. Its IEC60601-1-2 4th edition EMC compliance, medical external power adaptor, and calibrated DICOM Part 14 gamma selection support integration into appropriately specified medical systems. The 100 x 100 mm VESA interface also suits installations that require a compatible mounting solution instead of relying solely on a desktop placement.

The IP65-rated front panel and IK07 ball-drop rating make the monitor relevant where the front surface requires documented environmental and impact protection. Its anti-glare treatment is useful for installations where reflections could interfere with viewing.

Why Choose This Model

The DT-150P-M2 combines 10-point projected capacitive touch with a familiar 1024 x 768 display format. Touch data is carried through a dedicated USB 2.0 Type-B port using USB-HID, keeping the touch interface separate from the VGA, HDMI, or DisplayPort video connection.

Display controls extend beyond basic brightness and contrast adjustments. Available color-temperature settings include 5500K, 6500K, 7500K, 9300K, and a user-defined option. Gamma choices include native, Gamma 1.8, Gamma 2.2, and calibrated DICOM Part 14, supported by a 10-bit gamma lookup table. A three-year warranty completes the documented product coverage.

Installation and Integration

The monitor provides one VGA input, one HDMI input, and one DisplayPort input, allowing it to connect to systems using different video standards. The projected capacitive touch interface uses one USB 2.0 Type-B connection. A 2.1 mm 12V DC jack supplies power, and an RJ11 port is provided for a remote key.

Scaling modes include full screen, 5:4, 4:3, 16:9, and 1:1, giving integrators options for matching incoming content to the 4:3 panel. Physical dimensions are 337.0 x 304.2 x 200.9 mm, and net weight is 4.4 kg. The rear mounting pattern is 100 x 100 mm VESA. The specified operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing.

Performance Highlights

The 15-inch TFT LCD reaches 350 nits of brightness without touch integration and 297 nits with the projected capacitive touch layer. Its specified contrast ratio is 800:1, with horizontal viewing angles of 160 degrees and vertical viewing angles of 150 degrees.

The panel’s 1024 x 768 maximum resolution and 4:3 aspect ratio are suited to applications designed around a traditional display format. Projected capacitive technology supports up to 10 simultaneous touch points, while the anti-glare surface treatment helps manage reflections. The combination of selectable color temperatures, multiple gamma modes, and a 10-bit gamma LUT provides defined controls for adapting image presentation to system requirements.

What Makes It Different

The DT-150P-M2 brings together medical-oriented power and EMC provisions with a sealed front panel, multi-touch operation, and three video input types. Its certifications include CE, CB, FCC, UL, CCC, and RoHS, alongside IEC60601-1-2 4th edition EMC compliance.

The white enclosure uses glass, SECC metal, and ABS plastic rather than a single housing material. Front-panel IP65 compliance, an IK07 rating, calibrated DICOM Part 14 gamma selection, and a dedicated RJ11 remote-key connection further distinguish its documented configuration.

Final Assessment

The MicroTouch DT-150P-M2 is a focused choice for installations requiring a 15-inch, 4:3 PCAP touch display with USB-HID control and VGA, HDMI, and DisplayPort connectivity. Its 100 x 100 mm VESA interface, anti-glare treatment, IP65 front panel, 10-point touch capability, medical external power adaptor, and three-year warranty provide a clearly defined package for compatible medical desktop and mounted systems.
