15" 1024x768 PCAP Open Frame Touch Monitor VGA/HDMI/DP 350 Nits

Ideal Use Cases

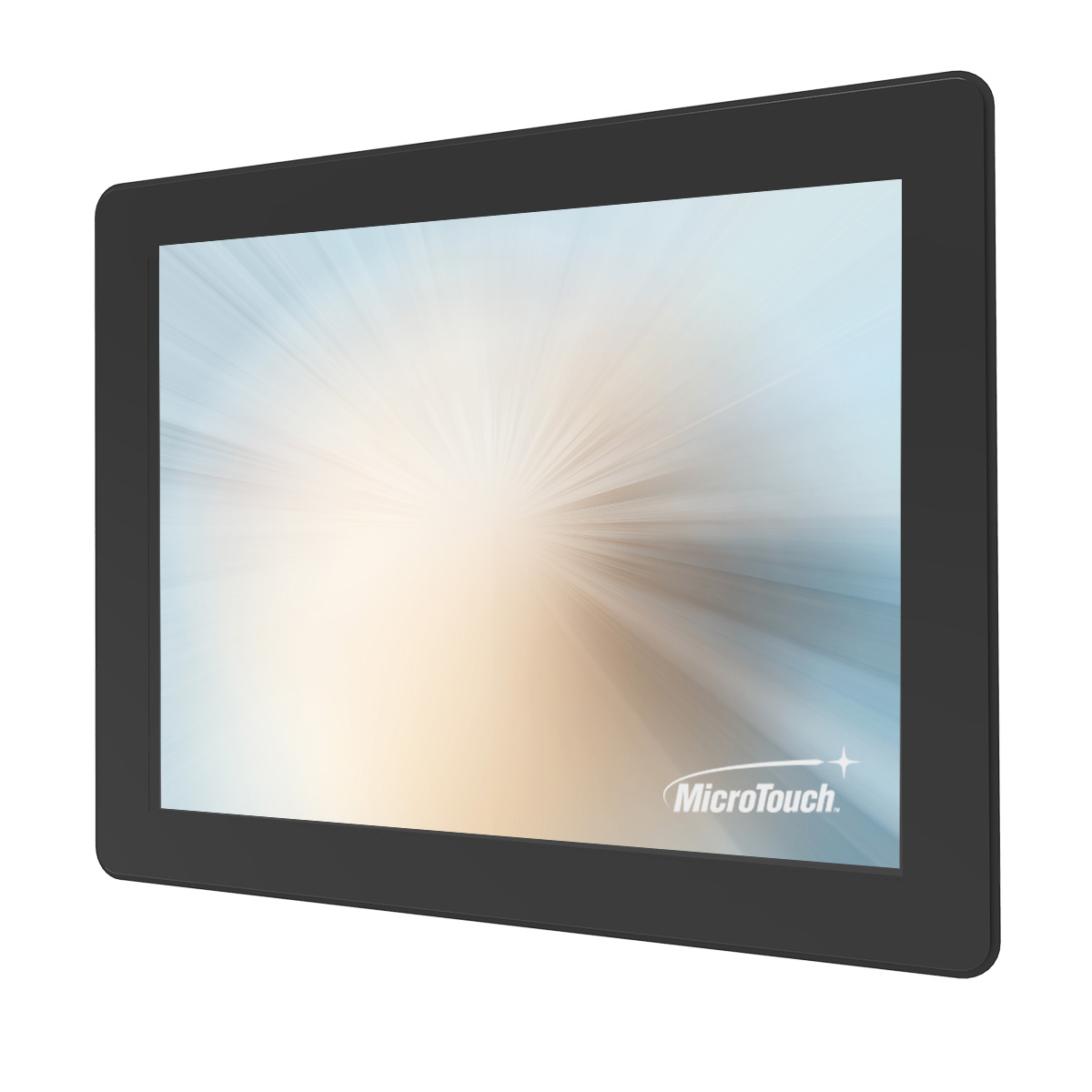

The MicroTouch OF-150P-B1 is a 15-inch open-frame touch monitor for systems that require a compact 4:3 display integrated into an enclosure or panel. Its 1024 x 768 maximum resolution, 10-point projected-capacitive touch screen, and USB-HID interface support visual and touch interaction through separate connections. VGA, DP+, and HDMI inputs also make the monitor suitable for installations that must accommodate multiple video connection types.

The front panel is IP65 compliant, while the listed operating range is 0°C to 50°C at 20% to 80% relative humidity, non-condensing. These characteristics provide clear parameters for selecting the monitor for controlled indoor installations and equipment interfaces.

Why Choose This Model

This model combines a 15-inch TFT LCD with projected-capacitive touch and 10 touch points. The 4:3 aspect ratio is a practical match for applications designed around XGA content, while the 800:1 contrast ratio and specified viewing angles of 160 degrees horizontally and 150 degrees vertically define its visual performance.

Its connection set covers both legacy and current video sources through one VGA port, one DP+ port, and one HDMI port. Touch data is handled through one USB 2.0 Type-B port using USB-HID. Additional connections include audio-out and an RJ45 port for an OSD remote. A locking 12V DC input helps secure the power connection within an integrated installation.

Installation and Integration

The OF-150P-B1 measures 364.0 x 290.9 x 41.4 mm and has a net weight of 2.9 kg. It supports a 100 x 100 mm VESA mounting pattern, and the listed 15-inch bracket kit is model OF-BRKT-15B. These specifications allow the mounting points, enclosure opening, internal clearance, and supporting structure to be planned before installation.

Power is supplied through a 12V DC jack with a lock. The specified external power adaptor is rated at 36W, 12V, and 3A. Listed part references include power supply PS-3316003605F0, UL power cable PC-5330001211FI, EU/Korea power cable EPC-5331021203FI, HDMI cable HDMI-5313118134FH, DP cable DP-5313118123FV, VGA cable VGA-5313118072FH, and USB A-to-B cable USB-5313118047FV.

The carton measures 460 x 410 x 175 mm. Gross packaged weight is 4.6 kg. Installation planning should also account for access to the rear video, touch, audio, OSD remote, and locking power connections.

Performance Highlights

The display provides a maximum resolution of 1024 x 768 with a native 4:3 image format and an 800:1 contrast ratio. Brightness is specified at 350 nits without touch and 300 nits with the projected-capacitive touch layer. This distinction is important when evaluating the installed touch configuration rather than the underlying panel alone.

The projected-capacitive interface supports 10 touch points and communicates through USB-HID Type B. The listed viewing angle is 160 degrees horizontally and 150 degrees vertically, giving integrators defined limits for positioning the display relative to intended viewing locations.

What Makes It Different

The open-frame construction combines glass, ABS plastic, and SECC metal in a black housing. Its front panel is IP65 compliant, and the listed ball-drop information references UL60950 at 500 g and 1.3 m as well as IK08. Certifications include CE, FCC, CB, and UL.

Beyond its three video input formats, the model provides a dedicated USB-HID touch connection and an RJ45 connection specifically identified for an OSD remote. The combination of VGA, DP+, and HDMI can simplify integration when the available video source differs between system configurations.

The monitor is specified for operation from 0°C to 50°C with 20% to 80% relative humidity, non-condensing. Its listed storage range is 20°C to 60°C with 10% to 95% relative humidity, non-condensing. These limits, together with the dimensions and mounting pattern, give system designers concrete requirements for enclosure and environmental planning.

Final Assessment

The MicroTouch OF-150P-B1 is a focused choice when an installation calls for a 15-inch, 4:3 open-frame display with 10-point PCAP touch, XGA resolution, and flexible VGA, DP+, and HDMI connectivity. Its 100 x 100 mm VESA pattern, locking DC input, USB-HID touch interface, and defined physical dimensions support structured integration.

For final selection, account for the specified 300-nit brightness with P-CAP, the 1024 x 768 resolution, and the front-panel-only IP65 compliance. The model is backed by a three-year warranty.
