10.1" 1280X800 All in One MACH, Android 13, 400 Nits

The MicroTouch MACH M1-101IC-AA3 is a compact 10.1-inch all-in-one Android touch computer developed for commercial settings. Its 1280 x 800 TFT LCD combines 10-point projected-capacitive touch with an etched anti-glare, optically bonded surface and 7H durable glass. Inside, a MediaTek Genio 700 processor, Mali-G57 MC3 GPU, 8GB of system memory, and 64GB of eMMC storage provide an integrated platform running Android 13 GMS. The operating system is listed as upgradable to Android 15 GMS.

Ideal Use Cases

This model fits commercial touch deployments requiring a compact screen, onboard Android computing, and flexible peripheral connectivity. Portrait, landscape, and tabletop orientations support different placement requirements, while the 75 x 75 VESA pattern provides an additional mounting option. MicroTouch identifies the MA-MSR-A1 magnetic-stripe reader, MA-LBAR-A1 light bar, and MA-SCAN-A1 barcode scanner as accessory options, allowing the computer to be considered for installations that incorporate customer interaction, data capture, or visual status functions. Its front panel is IP65 compliant.

Why Choose This Model

The M1-101IC-AA3 brings its display, touch interface, processing hardware, storage, networking, camera, and audio into a single 1 kg unit. The MediaTek Genio 700 platform includes a Mali-G57 MC3 GPU and an APU specified as one MDLA3.0 plus one VP6. Network options include Gigabit Ethernet, 802.11 a/b/g/n/ac/ax Wi-Fi, and Bluetooth 5.2 with BLE support. A 5MP front-facing camera and one 2W stereo speaker are also integrated, reducing the number of separate components needed for functions supported by those features.

Installation and Integration

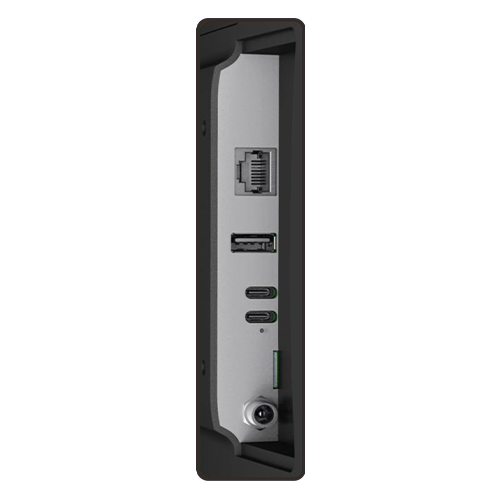

Without a stand, the enclosure measures 255.8 x 169.4 x 34.5 mm and supports a 75 x 75 VESA interface. Power input is 12V DC, and the supplied specifications list PoE as included at 60W/90W. Connection options are extensive for a computer of this size: two USB-C ports support USB 3.0, DisplayPort Alt Mode, and power delivery at 5V/12V up to 3A; one USB-A port supports USB 3.0; and three additional USB-C ports provide USB 2.0 peripheral connections. The system also includes an RJ45 Gigabit LAN port and a 3.5 mm audio-output/microphone-input connection. These interfaces accommodate wired networking, compatible displays, audio equipment, and USB peripherals without relying exclusively on wireless connections.

Performance Highlights

The 10.1-inch TFT LCD has a maximum resolution of 1280 x 800, a 16:10 aspect ratio, and a specified contrast ratio of 900:1. Brightness is rated at 400 nits without touch and 360 nits with the projected-capacitive touch layer. Horizontal and vertical viewing angles are each specified at 170 degrees. The touch system recognizes up to 10 points, while optical bonding and etched anti-glare surface treatment define the screen construction. The listed operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Storage conditions are specified as 20°C to 60°C at 20% to 90% relative humidity, non-condensing.

What Makes It Different

Rather than pairing a separate display with an external Android player, this MACH model places the Android 13 GMS system directly behind the touch display. The enclosure combines plastic, glass, and SECC metal, with 7H durable glass protecting the interaction surface. Its mix of five USB-C connections, USB-A, Gigabit Ethernet, current-generation 802.11ax connectivity, Bluetooth 5.2, and DisplayPort Alt Mode provides several paths for integration. Listed certifications include CE, FCC, UL/cUL, NOM, RoHS, UKCA, RCM, and PSE. The product is backed by a three-year warranty.

Final Assessment

The M1-101IC-AA3 is a focused commercial Android touch computer for installations that value a small footprint, 10-point touch, integrated networking, and broad USB connectivity. Its strongest practical attributes are the optically bonded anti-glare display, 8GB memory, 64GB eMMC storage, VESA mounting support, front-panel IP65 compliance, and clearly identified accessory ecosystem. For projects standardized on Android GMS, it offers Android 13 today with a documented upgrade path to Android 15 GMS.
