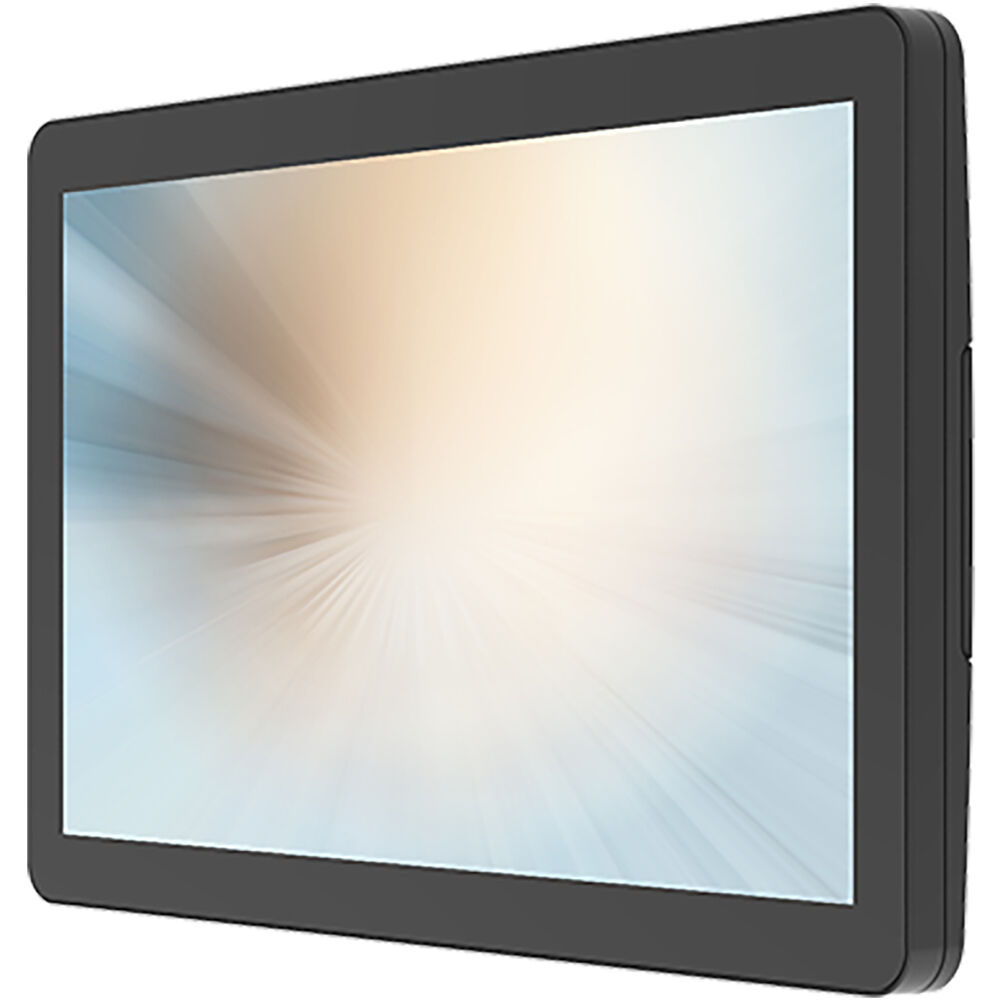

10.1″ 1280×800 PCAP Desktop Touch Monitor VGA/HDMI/DP/USB-C 350 Nits

Ideal Use Cases

The MicroTouch DT-100P-A1 is designed for installations that need a compact desktop-format display with direct multi-touch interaction. Its 10.1-inch TFT LCD, 1280 x 800 resolution, and 16:10 aspect ratio provide a practical screen area for touch-driven interfaces, control applications, information displays, and other space-conscious systems. Projected capacitive technology supports up to 10 touch points through a USB-HID interface. The front-only IP65 rating and durable 7H-hardness glass surface also make the monitor suitable for environments where the display face may encounter dust or moisture.

Why Choose This Model

This model combines broad video connectivity with a compact, mountable enclosure. Dedicated VGA, DisplayPort, and HDMI inputs accommodate multiple source types, while the USB Type-C port supports Alt Mode and power-delivery input. A 3.5 mm audio input feeds the integrated pair of 2W stereo speakers, reducing the need for separate desktop speakers when basic built-in audio is preferred. The monitor also provides an RJ11 OSD port and a dedicated 12V DC input. Its black housing uses plastic, glass, and SECC metal construction.

Installation and Integration

The monitor-only enclosure measures 245.4 x 170.5 x 30.3 mm and weighs 0.95 kg, allowing it to fit into installations where equipment depth and overall footprint matter. A 75 x 75 mm VESA mounting pattern supports integration with compatible mounting hardware. Video can be connected through VGA, DisplayPort, HDMI, or USB-C Alt Mode, while touch communication uses the USB-HID interface. Power is supplied through the 12V DC input using the specified 36W external power adaptor rated at 12V and 3A. Audio sources can connect through the 3.5 mm mini-jack input. The separate connection options make it possible to select the video, touch, audio, and power arrangement appropriate for the host system.

Performance Highlights

The 10.1-inch TFT LCD produces a maximum resolution of 1280 x 800 with a 1000:1 contrast ratio. Brightness is rated at 350 nits without touch and 290 nits with the projected capacitive touch layer. Horizontal and vertical viewing angles are both specified at 160 degrees, supporting visibility from a range of positions around the screen. Ten-point projected capacitive input enables multi-touch operation, while the USB-HID interface provides the touch connection. The integrated stereo system consists of two 2W speakers for a combined onboard audio solution.

What Makes It Different

The DT-100P-A1 brings several integration-oriented features into one small monitor. Its input selection spans legacy VGA, DisplayPort, HDMI, and USB Type-C Alt Mode rather than relying on a single video standard. USB-C also supports power-delivery input, while the dedicated DC jack remains available for the external adaptor. The 7H-hardness glass adds a durable touch surface, and front-only IP65 compliance protects the face of the display. Certifications include CE, FCC, UL, CB, and UKCA. The specified operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Storage conditions are specified as 20°C to 60°C at 10% to 90% relative humidity, non-condensing.

Final Assessment

The MicroTouch DT-100P-A1 is a compact 10.1-inch touch monitor built around 10-point projected capacitive input, 1280 x 800 display performance, and flexible source connectivity. Its 7H glass, front-only IP65 compliance, VESA mounting pattern, USB-HID touch interface, four video connection options, and built-in stereo speakers provide a detailed foundation for desktop and integrated touch-display systems. A three-year warranty completes the specification set.
