10.1" 1280x800 Desktop MACH, 350 Nits, 10 Touch Point

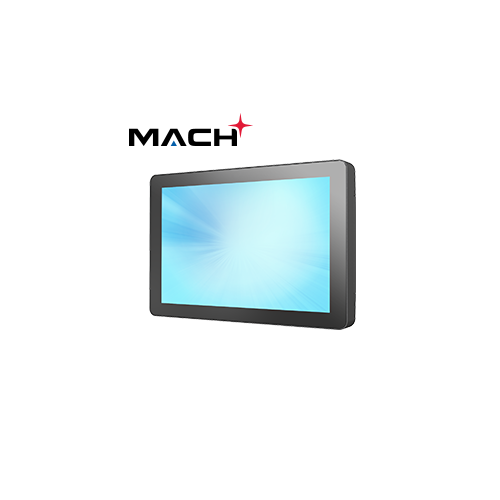

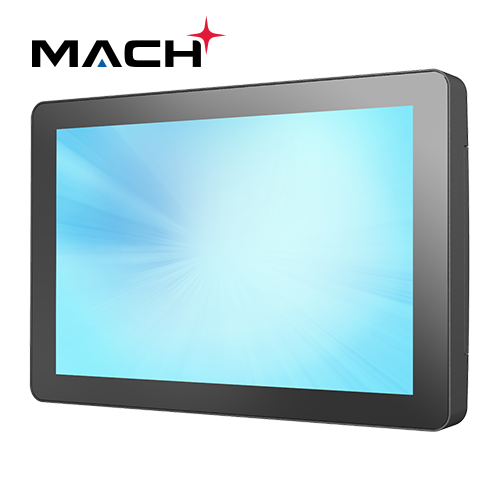

The MicroTouch M1-101DT-A2 Desktop MACH is a compact 10.1-inch TFT LCD touch display built around a 1280 x 800 maximum resolution and a 16:10 aspect ratio. Its projected capacitive touch screen supports 10 touch points through a USB-HID interface and is covered by 7H hardness durable glass. The black housing combines plastic, glass, and SECC metal, while the monitor-only dimensions of 255.8 x 169.4 x 34.5 mm and net weight of 0.95 kg support space-conscious installations.

Ideal Use Cases

This model is appropriate for projects that require a compact desktop or VESA-mounted touch interface with USB-HID operation. Its combination of HDMI and USB-C video connectivity gives integrators flexibility when matching the display to a host system. Five USB-C connections are divided between two ports supporting DP video through Alt Mode and three ports intended for peripheral connections. A separate USB-A port provides another peripheral option. The front-only IP65 compliance and durable glass surface also suit installations where the front of the display requires added protection.

Why Choose This Model

The M1-101DT-A2 combines display, touch, audio, and peripheral connectivity in one compact unit. The projected capacitive touch system supports up to 10 simultaneous touch points, while USB-HID provides the specified touch interface. Integrated 2 x 2W stereo speakers add built-in audio output, and a 3.5 mm mini-jack provides an audio input. The display also carries CE, FCC, UL, CB, and UKCA certifications. A three-year warranty completes a specification set intended for buyers who need clearly documented display and integration characteristics.

Installation and Integration

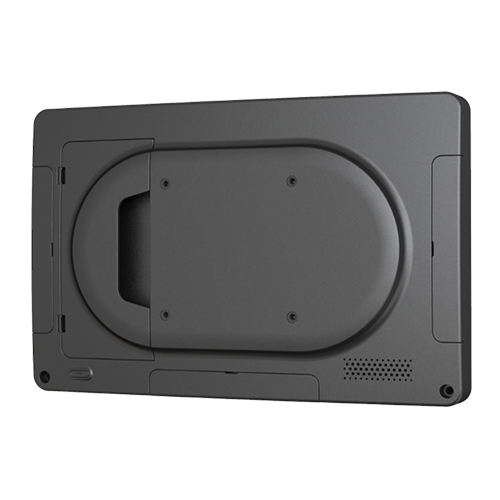

A 75 x 75 mm VESA pattern provides the specified mounting interface. Video can be connected through HDMI or USB-C, including two USB-C ports with Alt Mode for DP video. Three additional USB-C ports are identified for peripheral connections, accompanied by one USB-A port. Power is supplied through a 12V DC input using the specified 36W, 12V, 3A external power adaptor. The operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Listed accessory references include the MA-MSR-A1 MSR, MA-CAM-A1 camera, MA-LBAR-A1 light bar, and MA-SCAN-A1 barcode scanner.

Performance Highlights

The 10.1-inch TFT LCD delivers a maximum resolution of 1280 x 800, a 1000:1 contrast ratio, and a 16:10 aspect ratio. Horizontal and vertical viewing angles are each specified at 160 degrees. Brightness is rated at 350 nits without touch and 290 nits with the projected capacitive touch layer. These values distinguish the underlying panel rating from brightness through the P-CAP configuration. Touch input supports 10 points, and the durable glass surface carries a stated hardness rating of 7H.

What Makes It Different

The connection arrangement is a notable part of this model. Rather than limiting USB-C to a single function, the specification identifies two USB-C ports for DP video through Alt Mode and three separate USB-C ports for peripheral connections. HDMI and USB-A broaden the available wired interfaces, while the integrated stereo speakers provide 2W per channel. The construction combines plastic, glass, and SECC metal in a black housing. Front-only IP65 compliance, a compact monitor-only profile, and a 75 x 75 mm VESA pattern further define the physical configuration.

Final Assessment

The MicroTouch M1-101DT-A2 brings together a 10.1-inch 1280 x 800 display, 10-point projected capacitive touch, USB-HID interfacing, HDMI and USB-C video, and multiple peripheral connections. Its 7H hardness durable glass, front-only IP65 compliance, integrated 2 x 2W speakers, compact dimensions, and 0.95 kg monitor-only weight provide a detailed foundation for integration planning. For systems requiring this combination of display size, touch capability, mounting pattern, and wired connectivity, the model offers a clearly defined configuration backed by a three-year warranty.
