Menu Board In Line Ceil Mount Kit Landscape/Portrait 400x400 150Lbs

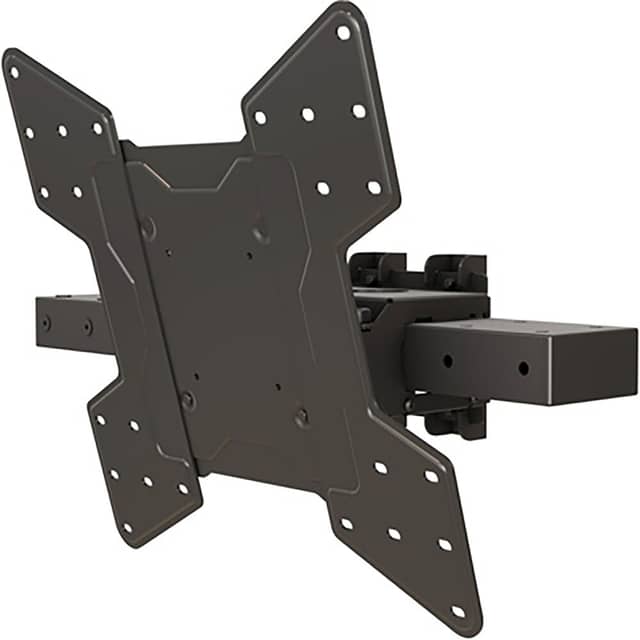

The Mustang Professional MPCM-M44V is an in-line ceiling mount for menu board displays. It supports 32- to 75-inch TVs, a maximum load of 150 lbs, and VESA mounting patterns up to 400 x 400 mm. The mount can position a display in landscape or portrait orientation and provides adjustments for tilt, side-to-side roll, and height. Its 1.5-inch NPT-compatible interface supports integration with the specified MPE-Series or MPEA-Series drop-length options.

Ideal Use Cases

This model is intended for ceiling-mounted menu board layouts requiring a display between 32 and 75 inches. Its landscape and portrait compatibility makes it suitable for content designed around either wide horizontal screens or vertically arranged menus and information. The 150 lb load rating also accommodates displays of different sizes and weights within the stated range, provided the selected TV uses a VESA pattern no larger than 400 x 400 mm.

The MPCM-M44V is particularly relevant when an in-line installation must maintain a suspended display position while allowing measured adjustments during setup. Its combination of orientation flexibility, tilt, roll, and incremental height adjustment gives installers several ways to refine the screen position without changing the specified mounting interface.

Why Choose This Model

Choose the MPCM-M44V when the installation requirements match three core limits: a 32- to 75-inch TV, a loaded weight no greater than 150 lbs, and a VESA mounting pattern up to 400 x 400 mm. Checking all three measurements provides a clear basis for display compatibility.

The mount offers +15 degrees/-5 degrees of tilt for adjusting the display angle. Side-to-side roll adjustment of +/- 3 degrees helps refine the screen position after mounting, while height adjustment in 1-inch increments provides defined vertical positioning. Landscape or portrait installation can be selected according to the intended menu board content and display arrangement.

Installation and Integration

The mounting interface is compatible with 1.5-inch NPT thread, providing a defined connection standard for the ceiling-mounted assembly. Drop length is selected from the MPE-Series or MPEA-Series, so the required option should be identified as part of installation planning. The product data does not specify a single fixed drop length.

During display selection, verify that the TV falls within the stated 32- to 75-inch range, weighs no more than the 150 lb load rating, and uses a VESA pattern within the 400 x 400 mm maximum. The desired landscape or portrait orientation can then be established before final adjustment. Once positioned, the available tilt, roll, and 1-inch height increments can be used to refine the display angle and vertical placement.

Performance Highlights

The MPCM-M44V combines a 150 lb load rating with support for TVs up to 75 inches and VESA patterns through 400 x 400 mm. Its adjustment range includes +15 degrees/-5 degrees of tilt and +/- 3 degrees of side-to-side roll. These controls provide specific, documented movement ranges for setting the viewing angle and correcting minor side-to-side alignment.

Height can be adjusted in 1-inch increments, making vertical changes measurable and repeatable during installation. Orientation is not limited to one format: the same model supports both landscape and portrait positioning. These characteristics make the mount adaptable to menu board content with different screen layouts while remaining within one documented set of size, weight, and interface requirements.

What Makes It Different

The defining feature set is the combination of in-line ceiling mounting, dual-orientation support, and several installation adjustments. Instead of providing only a fixed display position, the MPCM-M44V includes specified ranges for tilt and roll together with incremental height adjustment. Its 1.5-inch NPT thread compatibility also establishes how it connects within a suspended mounting configuration.

Construction combines aluminum with high-grade cold rolled steel. The exterior uses a scratch-resistant epoxy powder-coat finish. These material and finish specifications complement the mount’s 150 lb load rating without changing the need to verify the TV’s size, weight, and VESA pattern before installation.

Final Assessment

The Mustang Professional MPCM-M44V is a focused menu board mounting solution for 32- to 75-inch TVs requiring an in-line ceiling configuration. It supports up to 150 lbs, VESA patterns through 400 x 400 mm, and either landscape or portrait orientation. With documented tilt, roll, and 1-inch height adjustments, plus a 1.5-inch NPT-compatible interface, it provides clearly defined installation parameters for planning and positioning a suspended display.
