Menu Board In Line Ceiling Mount Kit Back-to-back L/

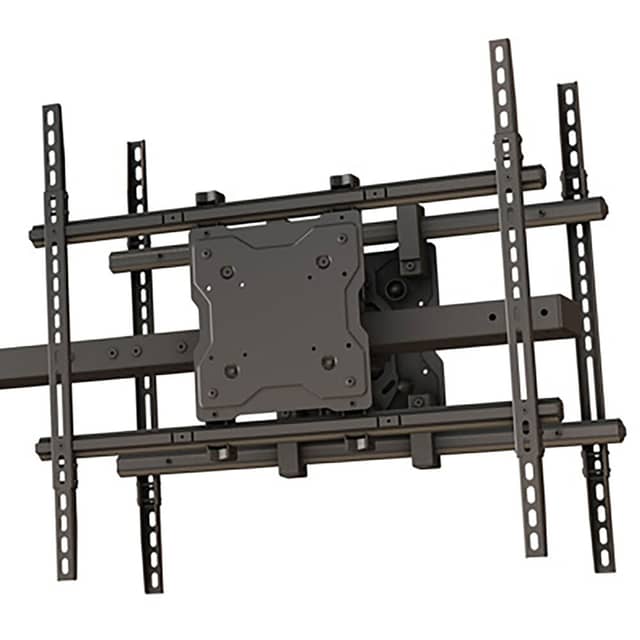

The Mustang Professional MPCMD-X86U is an in-line ceiling mount kit designed for back-to-back menu board installations. It supports 32-inch to 75-inch TVs and carries a listed load rating of 300 pounds. With support for VESA patterns up to 800 x 672 mm, the mount accommodates a broad range of compatible displays. Landscape and portrait orientation options allow the installation to match horizontal menu layouts, vertical promotional content, or mixed display requirements.

Ideal Use Cases

This model is suited to ceiling-mounted menu board systems that require displays positioned in a back-to-back arrangement. Its orientation flexibility supports both landscape and portrait content, making it appropriate when the display format must follow a particular menu, information, or promotional layout. The 32-inch to 75-inch display range provides flexibility when selecting compatible TVs, while the 300-pound load rating addresses installations involving substantial display hardware. The in-line ceiling configuration is useful when wall mounting is not the intended placement method.

Why Choose This Model

The MPCMD-X86U combines broad display compatibility with several physical adjustment options. Its maximum 800 x 672 mm VESA pattern supports displays with larger mounting interfaces, while height adjustments in 1-inch increments help establish the required vertical position. A tilt range of +15 degrees to -5 degrees allows the viewing angle to be refined after mounting. Side-to-side roll adjustment of plus or minus 3 degrees provides an additional way to correct display alignment.

Construction combines aluminum with high-grade cold-rolled steel. The exterior uses a scratch-resistant epoxy powder-coat finish, providing a durable finished surface for the mounting assembly. These material and finish specifications distinguish the mount from products for which construction details are not clearly identified.

Installation and Integration

The mounting interface is compatible with 1.5-inch NPT thread connections. Drop length can be selected from Mustang Professional MPE-Series or MPEA-Series options, allowing the ceiling drop configuration to be matched to the installation requirements. Once the appropriate drop length is established, the mount offers height positioning in 1-inch increments.

Before installation, confirm that the selected display falls within the stated 32-inch to 75-inch range, uses a VESA pattern no larger than 800 x 672 mm, and remains within the mount’s 300-pound load rating. The chosen landscape or portrait orientation should also be established as part of the mounting plan. Tilt and roll adjustments can then be used to refine the final viewing angle and alignment.

Performance Highlights

• Supports 32-inch to 75-inch TVs.
• Rated for loads up to 300 pounds.
• Accommodates VESA mounting patterns up to 800 x 672 mm.
• Supports landscape or portrait display orientation.
• Provides +15-degree to -5-degree tilt adjustment.
• Provides plus or minus 3 degrees of side-to-side roll.
• Offers height adjustment in 1-inch increments.
• Uses a 1.5-inch NPT thread-compatible mounting interface.

What Makes It Different

The MPCMD-X86U brings back-to-back menu board positioning, landscape or portrait flexibility, and ceiling-mount integration together in one specified model. Its adjustment capabilities extend beyond basic fixed positioning: installers can select the drop length from compatible MPE-Series or MPEA-Series options, set height in 1-inch increments, adjust tilt through a 20-degree total range, and make minor side-to-side roll corrections. The combination of aluminum and high-grade cold-rolled steel construction is paired with a scratch-resistant epoxy powder-coat finish.

The model is also defined by its large maximum VESA pattern and wide supported display-size range. These specifications provide clear compatibility checkpoints when planning a menu board installation and selecting the displays and drop components that will be used with the mount.

Final Assessment

The Mustang Professional MPCMD-X86U is a purpose-defined ceiling mounting solution for back-to-back, in-line menu board configurations. Its 300-pound load rating, support for 32-inch to 75-inch TVs, 800 x 672 mm maximum VESA pattern, dual-orientation capability, and adjustable tilt, roll, drop length, and height provide a detailed foundation for planning a compatible installation. Aluminum and high-grade cold-rolled steel construction complete the design.
