Menu Board In Line Ceiling Mount Kit Landscape/Portrait 800x600 150Lbs

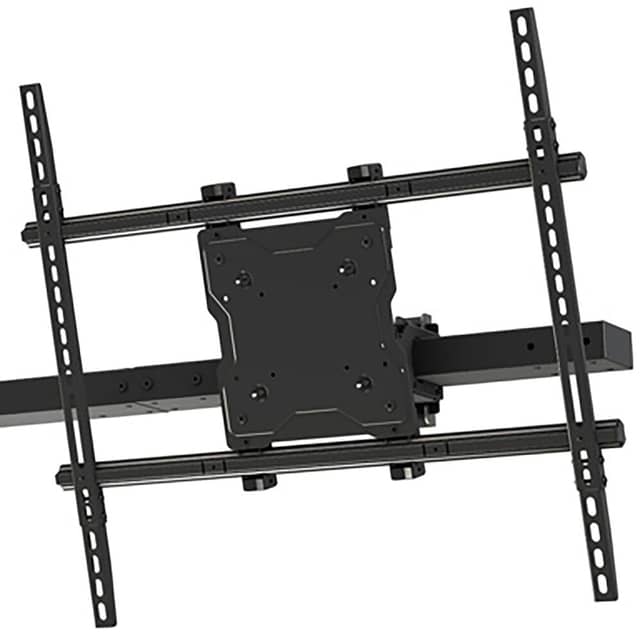

The Mustang Professional MPCM-X86U is an in-line ceiling mount for menu board displays. It supports 32-inch to 75-inch TVs weighing up to 150 pounds and accommodates VESA patterns up to 800 x 672 mm. Landscape and portrait orientations are supported, while adjustable roll, tilt, and height help position each display for the intended viewing arrangement.

Ideal Use Cases

This model is designed for ceiling-mounted menu board applications requiring a display to be positioned in either landscape or portrait orientation. Its broad 32-inch to 75-inch display range makes it suitable for installations using different screen sizes, while the 150-pound load rating supports compatible displays within that limit. The in-line mounting format is appropriate when screens need to follow a consistent overhead arrangement. It is also useful when a wall-mounted configuration is not desired or when the selected installation calls for an adjustable ceiling drop.

Why Choose This Model

The MPCM-X86U combines a high load rating with a large mounting interface. Its maximum 800 x 672 mm VESA pattern accommodates compatible displays across the stated size range without limiting the installation to one orientation. Side-to-side roll adjustment of plus or minus 3 degrees provides a controlled way to refine display alignment. A tilt range of positive 15 degrees to negative 5 degrees adds further positioning flexibility. These adjustments are built around an aluminum and high-grade cold-rolled steel structure finished with a scratch-resistant epoxy powder coat.

Installation and Integration

The mount uses a 1.5-inch NPT-compatible threaded interface for integration with a suitable ceiling-mounting arrangement. Drop length is selected separately from the MPE-Series or MPEA-Series, allowing the installer to choose the applicable drop configuration for the project. Height can then be adjusted in 1-inch increments. Before installation, confirm that the display measures between 32 and 75 inches, weighs no more than 150 pounds, and uses a VESA mounting pattern no larger than 800 x 672 mm. The selected orientation should also be established in advance so the display can be fitted for landscape or portrait presentation. The available roll, tilt, and height adjustments can then be used to complete the positioning process.

Performance Highlights

• Supports 32-inch to 75-inch TVs.
• Provides a load rating of up to 150 pounds.
• Accepts VESA patterns up to 800 x 672 mm.
• Supports both landscape and portrait orientation.
• Offers plus or minus 3 degrees of side-to-side roll.
• Provides positive 15-degree to negative 5-degree tilt adjustment.
• Allows height adjustment in 1-inch increments.
• Uses a 1.5-inch NPT-compatible mounting interface.

Together, these specifications provide several defined adjustment points for setting display height, angle, orientation, and side-to-side position within a compatible ceiling-mounted menu board installation.

What Makes It Different

The MPCM-X86U is distinguished by the combination of portrait or landscape mounting, a 150-pound load rating, and support for VESA patterns reaching 800 x 672 mm. Rather than using a fixed drop length, it works with selectable MPE-Series or MPEA-Series options. The 1-inch height increments allow changes to be made in measured steps, while the roll and tilt ranges address two additional axes of adjustment. Its material specification also combines aluminum with high-grade cold-rolled steel, and the exterior uses a scratch-resistant epoxy powder-coat finish.

Final Assessment

For a compatible ceiling-mounted menu board display, the Mustang Professional MPCM-X86U provides clearly defined capacity and adjustment specifications. It handles 32-inch to 75-inch TVs up to 150 pounds, supports a maximum 800 x 672 mm VESA pattern, and permits either landscape or portrait mounting. Its adjustable roll, tilt, and 1-inch height increments provide practical positioning control, while the 1.5-inch NPT-compatible interface and selectable MPE-Series or MPEA-Series drop length support integration into the specified mounting arrangement.
