Menu Board In Line Ceiling Mount Kit Back-to-back L/

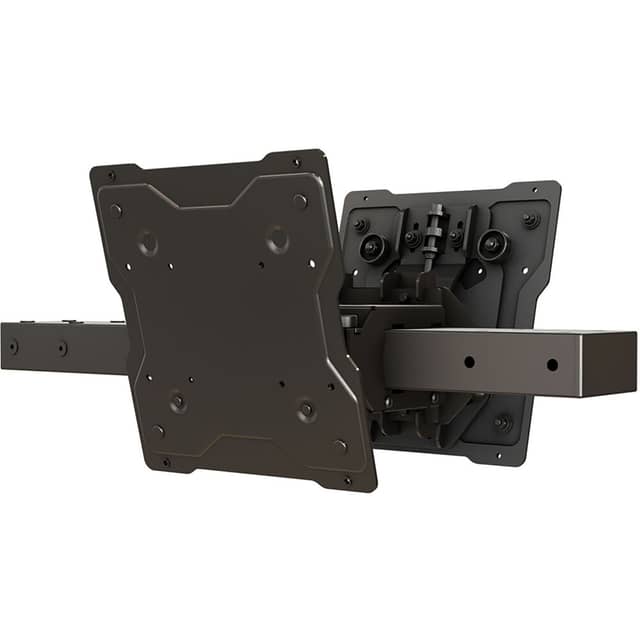

The Mustang Professional MPCMD-S22V is an in-line ceiling-mount kit for back-to-back menu board displays. Designed for 32- to 75-inch TVs, it supports landscape or portrait positioning, a maximum 200 x 200 mm VESA pattern, and a 300 lb load rating. Its published positioning adjustments and selectable drop-length system provide clear parameters for coordinating display orientation, viewing angle, and suspension height within a menu board installation.

Ideal Use Cases

The MPCMD-S22V is intended for menu board installations that require overhead placement in an in-line, back-to-back configuration. The back-to-back format accommodates layouts where display faces are directed toward two viewing areas, while landscape and portrait support allows the screen orientation to follow the content format. Its specified compatibility range covers TVs from 32 to 75 inches. Because the maximum supported VESA pattern is 200 x 200 mm, the mounting pattern of every intended display should be confirmed before the system is selected.

Why Choose This Model

This model combines defined display compatibility with several alignment adjustments. Side-to-side roll is adjustable by plus or minus 3 degrees, tilt ranges from plus 15 degrees to minus 5 degrees, and height can be adjusted in 1-inch increments. These controls allow the installed screens to be positioned according to the required angle and vertical alignment. The mount is constructed from aluminum and high-grade cold-rolled steel, then finished with a scratch-resistant epoxy powder coat. Its 300 lb load rating establishes a clear capacity limit for planning the complete supported assembly.

Installation and Integration

The MPCMD-S22V uses a mounting interface compatible with 1.5-inch NPT thread. Drop length is not listed as a single fixed measurement; the source data directs installers to select a suitable option from the MPE-Series or MPEA-Series. This makes the pipe or extension choice an important part of system specification. During setup, the 1-inch height increments can be used to establish vertical positioning, followed by roll and tilt adjustment for final alignment. Before installation, verify that the TV is within the 32- to 75-inch range, that its VESA pattern does not exceed 200 x 200 mm, and that the supported load remains within the 300 lb rating. Ceiling attachment hardware, exact drop components, and package contents are not specified in the supplied information.

Performance Highlights

• Supports 32- to 75-inch TVs.
• Rated for loads up to 300 lb.
• Supports VESA patterns up to 200 x 200 mm.
• Allows landscape or portrait display orientation.
• Provides plus or minus 3 degrees of side-to-side roll.
• Provides a tilt range of plus 15 degrees to minus 5 degrees.
• Offers height adjustment in 1-inch increments.
• Connects through a 1.5-inch NPT-compatible threaded interface.

Together, these specifications define both the mount’s compatibility boundaries and its available positioning range. Roll adjustment addresses side-to-side alignment, while the asymmetric tilt range provides more adjustment in the positive direction than in the negative direction. Display size, load, and VESA limits should all be evaluated together rather than treated as interchangeable compatibility measures.

What Makes It Different

The defining feature of the MPCMD-S22V is its combination of an in-line, back-to-back menu board format with support for either landscape or portrait installation. Its selectable MPE-Series or MPEA-Series drop-length approach allows suspension height to be specified around the installation instead of relying on a stated fixed drop. The mount also brings roll, tilt, and incremental height adjustments into the same assembly. Aluminum and high-grade cold-rolled steel construction, along with the scratch-resistant epoxy powder-coat finish, complete the published mechanical specification.

Final Assessment

The Mustang Professional MPCMD-S22V is a focused mounting solution for installations requiring compatible menu board TVs to be suspended in an in-line, back-to-back arrangement. It is best matched to 32- to 75-inch displays with VESA patterns no larger than 200 x 200 mm and a complete supported load within 300 lb. Its landscape and portrait support, adjustable roll and tilt, 1-inch height increments, and 1.5-inch NPT compatibility give installers specific criteria for planning and alignment. Final selection should include the appropriate MPE-Series or MPEA-Series drop-length component.
