5000 Lumens WUXGA Networkable Laser Projector with 1.6x Optical Zoom

Ideal Use Cases

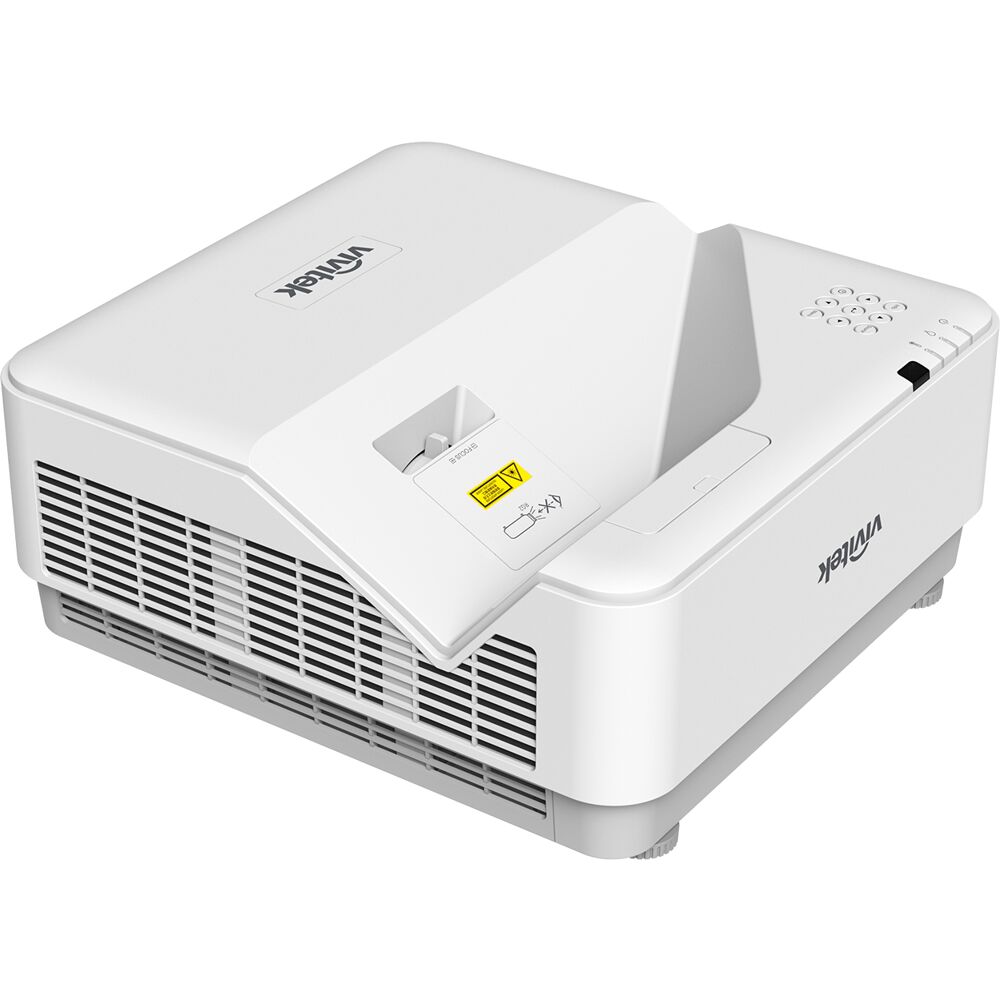

The Vivitek DU775Z-UST is an ultra-short-throw laser projector developed for locations where projection distance is limited. Its stated applications include museums and art galleries, schools, training spaces, hospitality venues, immersive environments, and display installations. A 0.25:1 throw ratio supports projection distances from 336 to 739 mm, while the specified image range extends from 70 to 150 inches.

Native WUXGA resolution provides a 1920 x 1200 image in a 16:10 aspect ratio. The projector also accepts UHD content up to 3840 x 2160 at 60 Hz, making it suitable for installations that combine WUXGA presentation material with higher-resolution video sources.

Why Choose This Model

The DU775Z-UST combines 5,000 ANSI lumens of brightness with a stated 3,000,000:1 contrast ratio. Its laser light source is rated for 20,000 hours in Normal mode and 30,000 hours in Eco mode. The display system uses single-chip DLP technology from Texas Instruments with a 0.48-inch DMD.

An integrated high-performance telecentric lens and concave reflective mirror support the ultra-short-throw optical design. The mirror is specifically designed to reduce distortion, an important consideration when producing large images from a position close to the display surface.

Installation and Integration

The optical system has a fixed zoom and a specified 122 percent image offset with a tolerance of plus or minus 5 percent. Vertical keystone correction is available over a plus or minus 15 range. An optional wall mount is listed for installations that require a dedicated mounting solution.

Connection options include two HDMI 2.0 inputs, one HDMI output, one VGA input, one VGA output, RS-232, an RJ45 network port, 3D synchronization, RCA audio input, mini-jack audio input, and mini-jack audio output. A USB Type-B port is provided for service, while the USB Type-A port supplies 5 V at 2 A for power only. Vivitek PJ-Control enables communication with and remote control of the projector through a computer network.

Performance Highlights

The combination of native WUXGA resolution, 5,000 ANSI-lumen output, and a 3,000,000:1 contrast specification addresses large-format commercial and educational projection requirements. UHD input support reaches 3840 x 2160 at 60 Hz, while the native 16:10 format provides additional vertical image area compared with a 16:9 presentation canvas.

Two built-in 10 W speakers provide integrated audio. The projector is also 3D Ready through DLP Link for PC and video sources and supports Direct 3D through HDMI 1.4a. Listed 3D formats include top-and-bottom, right-and-left, and frame-sequential presentation.

What Makes It Different

The DU775Z-UST brings together ultra-short-throw optics, a concave reflective mirror, a long-life laser source, and network administration in one 8.9 kg projector. Its connectivity extends beyond basic HDMI input by including HDMI and VGA outputs, serial control, RJ45 networking, dedicated audio connections, and 3D synchronization.

Operational features include keypad locking and Instant On/Off. The supplied remote control, quick-start guide, user manual, and connection options support integration into managed spaces where the projector may need to be operated locally or administered across a network.

Final Assessment

The Vivitek DU775Z-UST is best matched to space-constrained professional installations requiring a bright, large-format WUXGA image and compatibility with UHD sources. Its 70- to 150-inch image range, 0.25:1 throw ratio, laser light source, dual 10 W speakers, extensive wired connectivity, and PJ-Control network support make it particularly relevant to education, cultural venues, training, hospitality, immersive displays, and digital signage. It is a native WUXGA model with fixed zoom rather than a native 4K projector.
