DU5053Z-BK 7500 ANSI WUXGA 20000 Laser Projector-Black

The Vivitek DU5053Z-BK combines a black chassis with single-chip 0.67-inch DLP technology, WUXGA 1920 × 1200 native resolution, and a laser phosphor light source. Its detailed technical specification rates brightness at 7,700 ANSI lumens and full on/off contrast at 3,000,000:1. The projector also accepts signals up to 4K-UHD 3840 × 2160 at 60Hz while presenting content in a native 16:10 aspect ratio.

Ideal Use Cases

The DU5053Z-BK is designed for large spaces where image brightness and clarity are essential. Its stated applications include lecture halls and conference rooms, including spaces with high ambient lighting. A projected image range of 36.7 to 322 inches allows the system to accommodate different room sizes and viewing requirements. WUXGA resolution provides a detailed canvas for presentations, documents, video, and other visual material, while compatibility with 1080p, WUXGA, and 4K signals supports a variety of source devices.

Why Choose This Model

This model brings together high brightness, high contrast, and laser illumination in a large-venue platform. The light source is rated for 20,000 hours in Normal mode, and the supplied warranty covers the projector for five years and the laser phosphor illumination source for five years or 20,000 hours, whichever comes first. Vivitek describes the laser technology as delivering vibrant, true-to-life colors and strong visual clarity. A built-in 10-watt speaker provides onboard audio when an external sound system is not required.

Installation and Integration

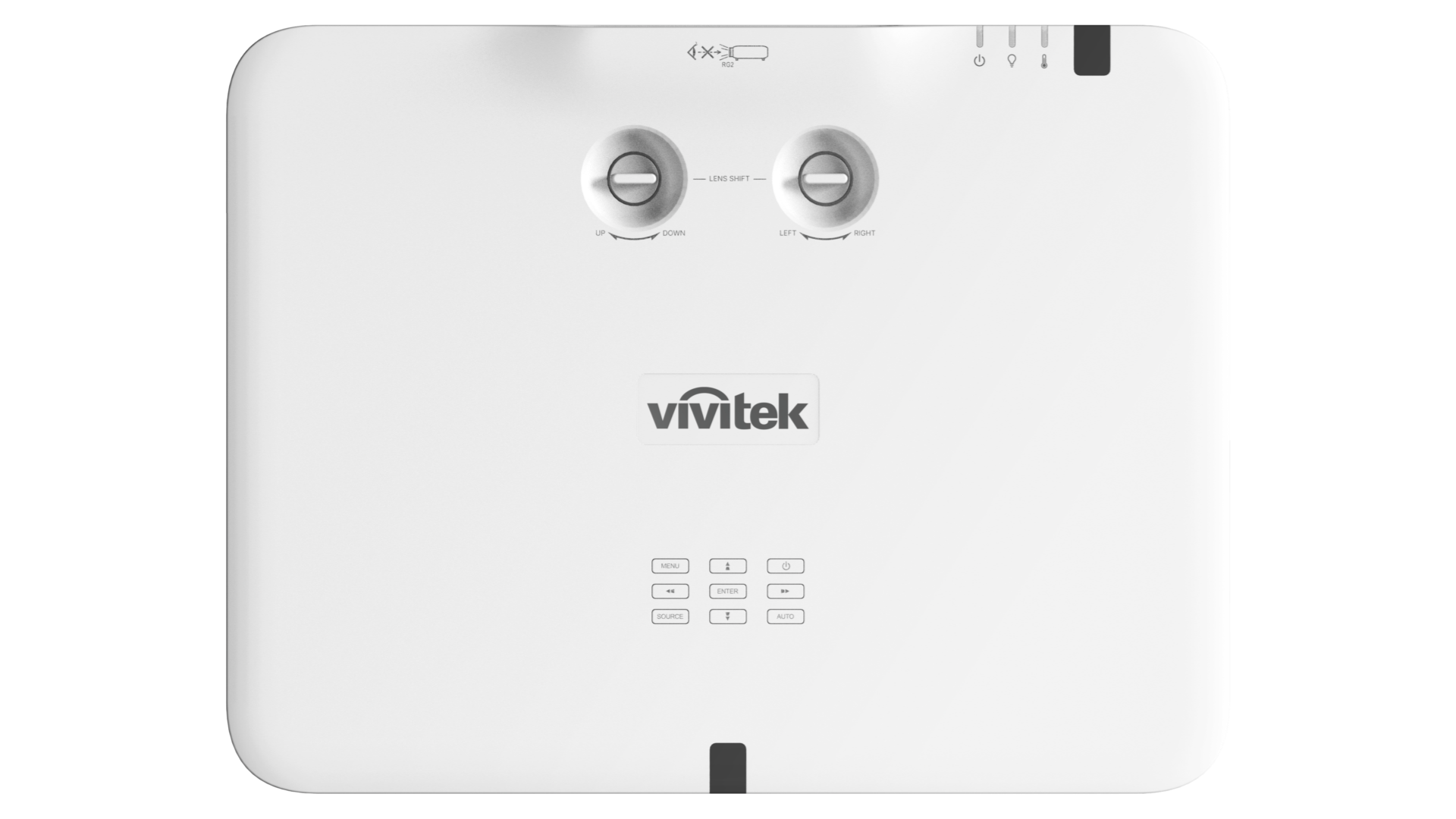

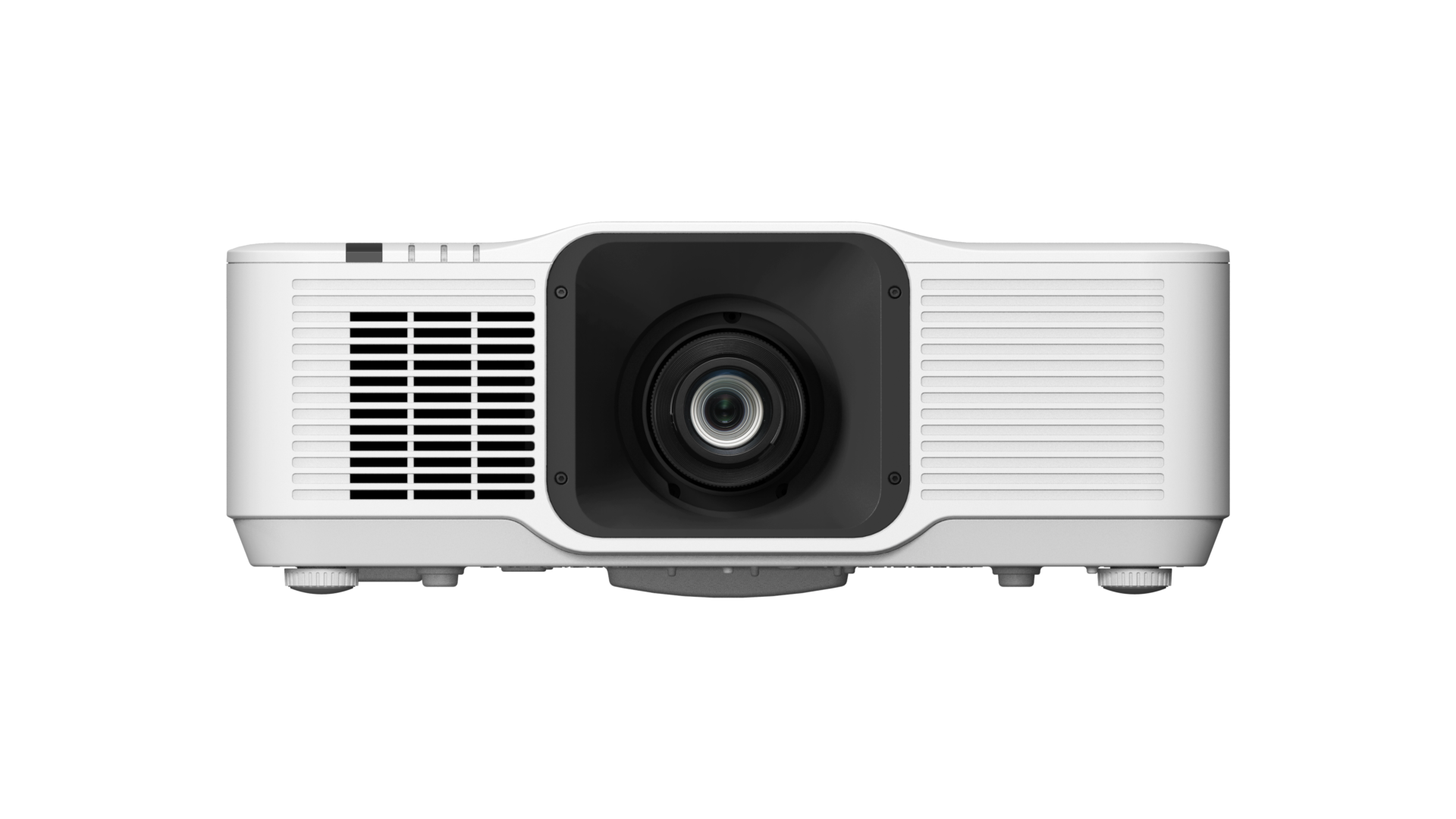

The standard lens offers a 1.15–1.9:1 throw ratio and 1.65x zoom. Its specified projection distance extends from 1.5 to 8 meters, with an offset range of +90% to +115%. Vertical lens shift is rated at 25%, while horizontal adjustment extends 4% to the left and 4% to the right. These optical controls provide useful positioning flexibility when aligning the projected image with an installed screen.

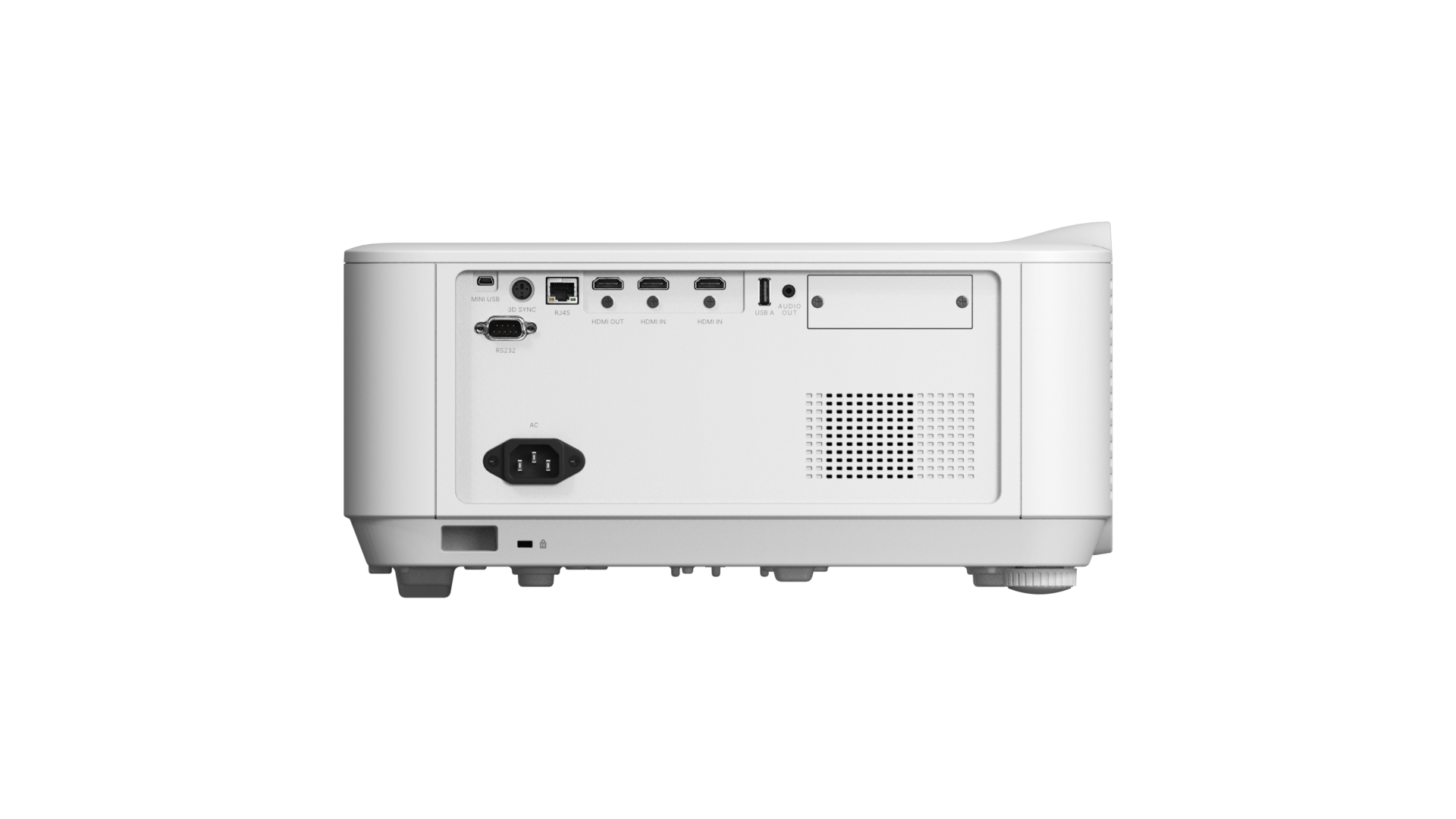

Connection options include two HDMI 2.0 inputs and one HDMI 2.0 output, RS-232 control, one 3D Sync output, USB-A for power, USB Mini-B for service, and RCA audio output. Network connectivity includes one RJ45 LAN connection, with an optional HDBaseT connection listed in the source data. This selection supports direct source connections, system control, service access, network integration, and signal routing. The projector measures 496 × 380 × 160 mm and weighs 12 kg.

Performance Highlights

The DU5053Z-BK delivers 7,700 ANSI lumens according to the detailed specification, supporting visible presentation content in large rooms and areas with ambient light. Its 3,000,000:1 full on/off contrast ratio is paired with WUXGA native resolution for visual separation and clarity. Maximum supported resolution is 4K-UHD at 60Hz. Listed signal compatibility includes VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, 1080p, WUXGA, 4K at 60Hz, and Mac sources. Operating noise is rated at 36 dB in Normal mode and 31 dB in Eco mode.

What Makes It Different

The combination of large-venue brightness, a laser phosphor source, and extensive lens adjustment distinguishes the DU5053Z-BK as an integration-oriented projector. Its 322-inch maximum image size provides substantial display scale, while 1.65x zoom and two-axis lens shift help with alignment. HDMI input and output, RS-232, LAN, service USB, and optional HDBaseT accommodate varied system designs. The listed optional DHS-01 module expands the available configuration. The source data also specifies DLP Link 3D readiness, direct 3D through HDMI 1.4a, and support for top-and-bottom, side-by-side, and frame-sequential 3D formats.

Final Assessment

The Vivitek DU5053Z-BK is a high-output WUXGA laser projector suited to lecture halls, conference rooms, and other large presentation spaces identified in the source material. Its core strengths are its 7,700-lumen specification, 4K-UHD 60Hz signal support, broad projection range, optical adjustment, and varied control and connection options. With a rated 20,000-hour Normal-mode light-source life and defined large-venue laser phosphor warranty, it provides a clearly specified foundation for professional projection installations.
