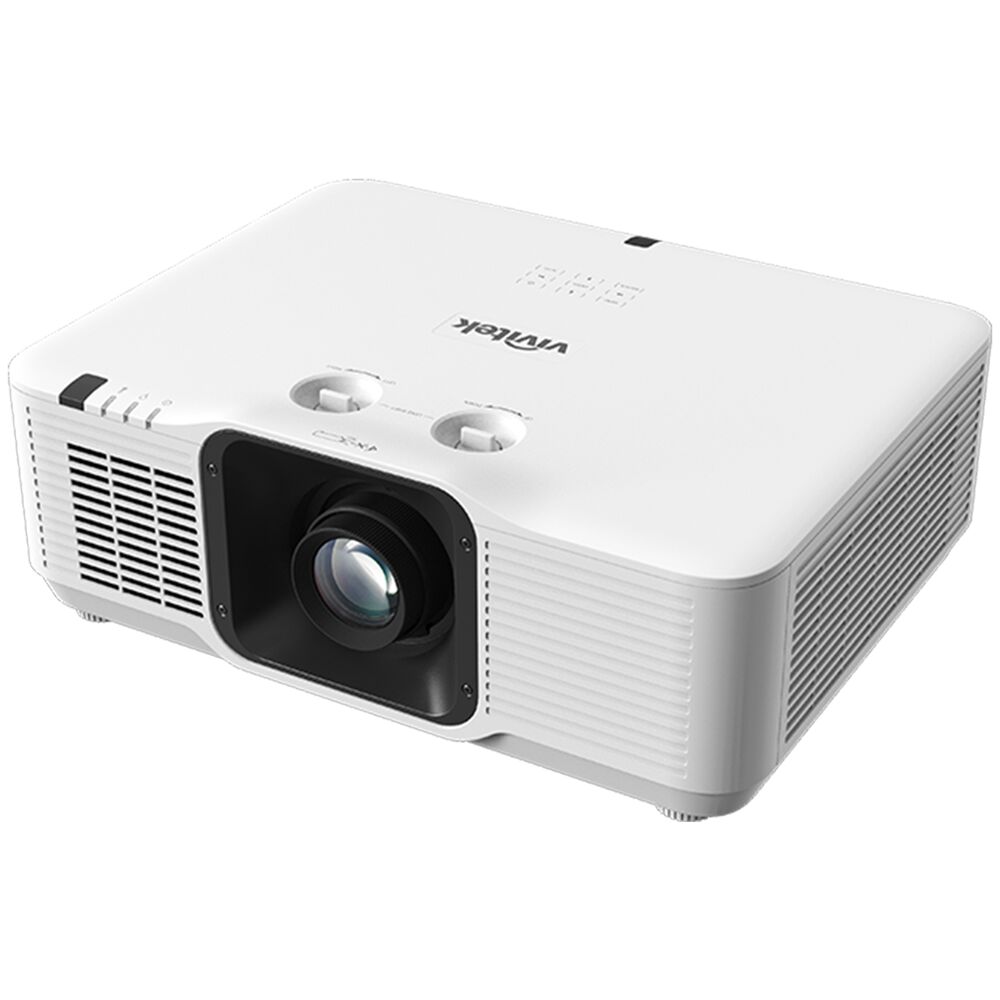

Vivitek DK5153Z High-performance 4K UHD Laser Projector with Fixed Lens

The Vivitek DK5153Z is a high-performance, fixed-lens laser projector designed around native 4K-UHD imaging. Its 3840 × 2160 resolution, 6,500 ANSI-lumen brightness, and 3,000,000:1 full on/off contrast ratio support detailed, clear images at large scale. A single-chip DLP system with a 0.65-inch DMD forms the core of a native 16:9 platform that accepts 4K-UHD signals at up to 60 Hz.

Ideal Use Cases

Designed for large spaces, the DK5153Z is suited to lecture halls and conference rooms where screen size and ambient light are important considerations. Its specified 36.7- to 322-inch diagonal image range accommodates both focused presentation areas and expansive displays. The 6,500 ANSI-lumen output is designed to deliver vivid, visible content even in high ambient lighting, while native 4K-UHD resolution preserves the fine structure of detailed presentations, diagrams, video, and other high-resolution material.

Why Choose This Model

The DK5153Z combines native 4K-UHD detail with the brightness required for large-venue projection. Its next-generation laser light source is designed to produce remarkable brightness and vibrant, true-to-life colors. The listed 3,000,000:1 full on/off contrast ratio supports distinction between bright and dark image areas, and the maximum supported 3840 × 2160 resolution at 60 Hz enables smooth presentation of compatible 4K content. A built-in 10-watt speaker also provides onboard audio when a separate sound connection is not required.

Installation and Integration

The fixed lens provides a standard throw ratio of 1.15–1.9:1 and a 1.65x zoom ratio. Projection distances from 1.5 to 8 meters and the broad image-size range provide flexibility when matching the projector to a room and screen. Lens shift includes 25% vertical adjustment and horizontal movement from 4% left to 4% right, while the specified offset is +90% to +115%. These optical adjustments help position the image while retaining the fixed-lens configuration.

Connection options include two HDMI 2.0 inputs and one HDMI 2.0 output, RS-232, a 3D-Sync output, USB Type-A for power, USB Mini-B for service, a mini-jack audio output, and RJ45 LAN. An HDBaseT connection is available through the optional DHS-01 module. This combination supports direct source connections as well as integration with network and control infrastructure.

Performance Highlights

Native 4K UHD at 3840 × 2160 delivers four-dimensional image detail across the projector’s large display range, while the native 16:9 aspect ratio is aligned with widescreen content. Compatible signal formats include VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, 1080p, WUXGA, 4K at 60 Hz, and Mac sources. The projector is specified at 36 dB in Normal mode and 31 dB in Eco mode. Its listed light-source information includes 20,000 hours in Normal mode, with a separate source field also listing 30,000 hours of laser life.

What Makes It Different

The DK5153Z brings together native 4K-UHD imaging, 6,500 ANSI lumens, laser illumination, and a fixed lens with both zoom and lens shift. This configuration addresses the core demands of larger presentation spaces without requiring an interchangeable lens. HDMI input and output, LAN, RS-232, service USB, powered USB, audio output, and optional HDBaseT provide a varied connection set for permanent installations. The available 3D capabilities include DLP Link for PC and video, direct 3D through HDMI 1.4a, and support for top-and-bottom, side-by-side, and frame-sequential mandatory 3D formats.

Final Assessment

The Vivitek DK5153Z is a purpose-built large-venue projector for installations that require native 4K-UHD resolution, substantial brightness, flexible fixed-lens optics, and a comprehensive physical connection set. Its 496 × 380 × 160 mm chassis weighs 12 kg and includes an AC power cord, regional warranty card, and remote controller with battery. The listed large-venue laser phosphor warranty covers the projector for five years and the illumination source for five years or 20,000 hours, whichever comes first.
