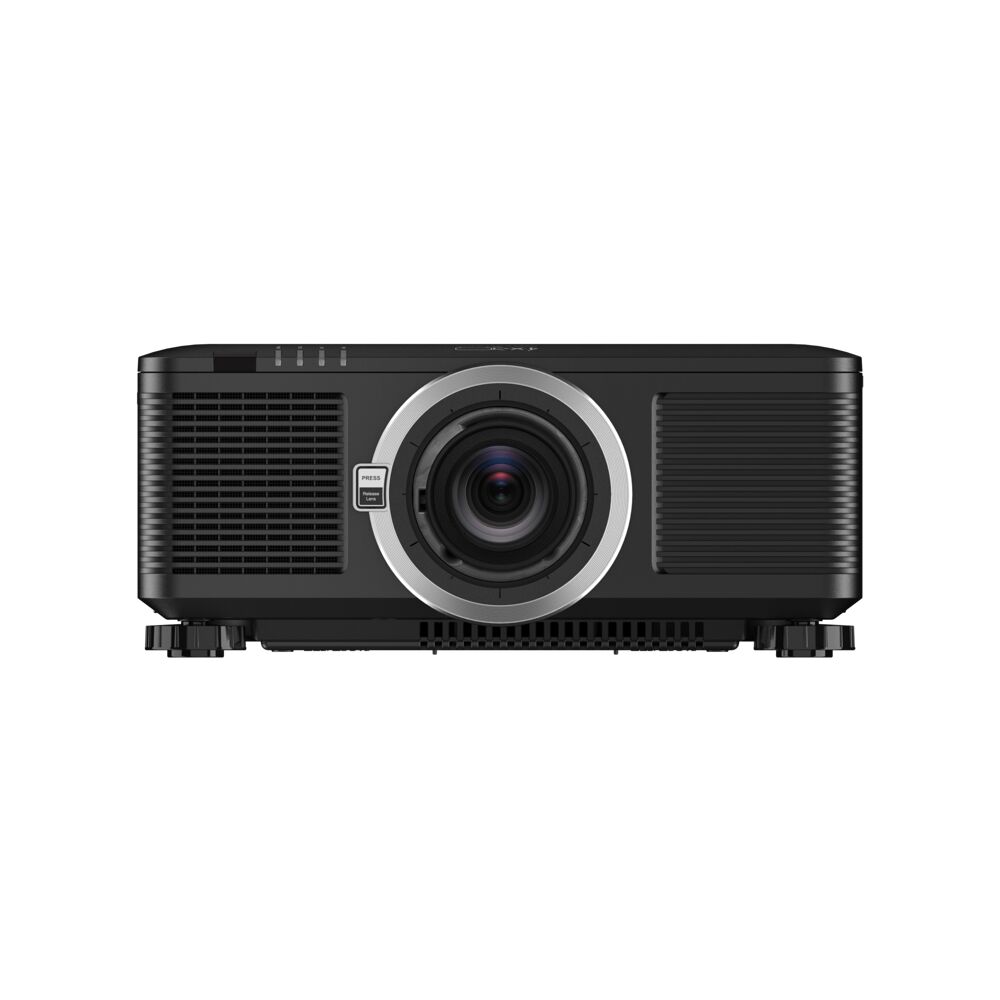

Vivitek 15000 lumen 4K+ laser projectcor

Ideal Use Cases

The Vivitek DK8155Z is designed for large halls and other large-space projection environments that require substantial light output, detailed imagery, and flexible installation. Its 15,000 ANSI-lumen brightness and native 4K+ resolution of 3840 x 2400 provide a strong foundation for presenting high-resolution video and visual content on a large scale. A native 16:10 aspect ratio supports widescreen presentation layouts, while compatibility with SDTV, EDTV, HDTV, and 4K UHD sources allows the projector to accommodate content ranging from 480i through 1080p and 4K UHD.

Why Choose This Model

The DK8155Z combines Texas Instruments single-chip DLP technology with a 0.8-inch DMD chip, DMD HEP technology, and a dual-laser design. Its laser light source is rated for up to 30,000 hours, supporting applications that prioritize extended operating life. The projector produces 15,000 ANSI lumens and specifies a 3,000,000:1 full on/off contrast ratio. Instant power-on and power-off operation eliminates the need for warm-up or post-use cooling periods. Color capabilities include DIPC3, Rec709, EBU, and SMPTE colorimetry, accompanied by dynamic black settings.

Installation and Integration

Eight optional lenses provide throw ratios ranging from 0.31:1 to 6.94:1, giving system designers a broad range of placement choices. Motorized zoom and motorized lens shift assist with image positioning. Optical shift reaches ±60 percent vertically and ±20 percent horizontally, while keystone correction extends to ±60 degrees horizontally and ±40 degrees vertically. Connectivity includes two HDMI connections, two DisplayPort connections, a USB Type-B service port, a wired remote-control jack, RS-232 input and output, and a USB Type-A port supplying 5 V/2 A power only. Two RJ45 connections provide one LAN interface and one HDBaseT interface. These controls and connection options support integration into centrally managed projection systems without limiting the installation to a single source type.

Performance Highlights

Native and maximum supported resolution are both 4K+ at 3840 x 2400, with the maximum input specification reaching 60 Hz. The 16:10 image format works alongside compatibility for 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, and 4K UHD video. Normal operating noise is rated at 39 dB, dropping to 36 dB in Eco mode. Power consumption is specified at 990 W in Normal mode at 240 V, with standby consumption below 0.5 W. The power supply accepts 100 to 240 VAC at 50/60 Hz.

What Makes It Different

The DK8155Z brings together high-output projection, a 3840 x 2400 pixel canvas, a dual-laser light source, and an unusually broad optional lens range in one large-space model. Its motorized optical controls extend beyond zoom to include motorized lens shift, while substantial horizontal and vertical keystone ranges add another level of placement adjustment. Direct 3D through HDMI 1.4a and DLP Link 3D readiness are listed, with top/bottom, right/left, and frame-sequential formats supported. A keypad lock is also specified. The combination of dual DisplayPort, dual HDMI, LAN, HDBaseT, and RS-232 input and output provides several paths for sources, network access, and external control.

Final Assessment

Measuring 500 x 591 x 216 mm and weighing 29.4 kg, the Vivitek DK8155Z is a purpose-built large-space projector centered on 15,000 ANSI-lumen output, native 4K+ detail, and configurable optics. The package includes an AC power cord, lens cap, quick-start guide, region-specific warranty card, and remote control with battery. Warranty coverage is specified as five years for the projector and five years or 20,000 hours for the laser-phosphor light source, whichever occurs first. With eight optional lenses available, the required throw ratio should be selected to match the intended installation.
