DesignerSeries Ultra Slim Articulating Wall Mount fo 32" to 40" Ultra-th

Ideal Use Cases

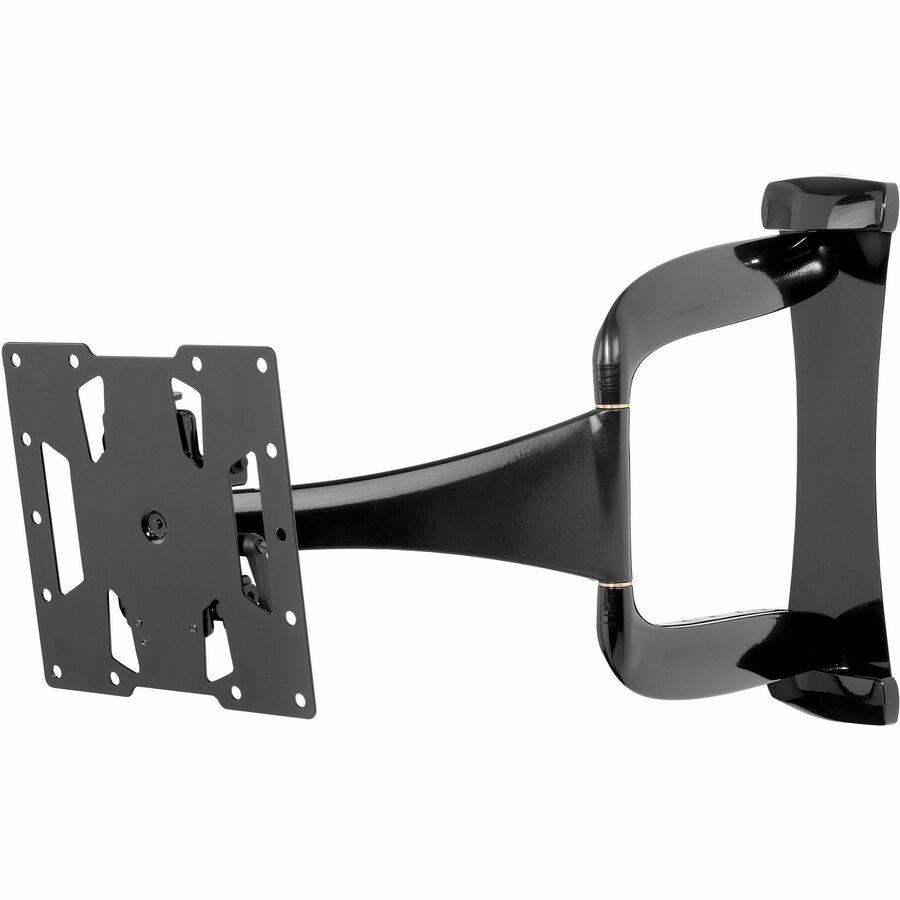

The Peerless-AV DesignerSeries SUA740P is intended for a single ultra-thin display measuring 32 to 43 inches and weighing up to 60 lb. Its articulating design suits wall-mounted installations that require a display to remain close to the wall when retracted while offering additional reach for viewing adjustments. The adjustable depth ranges from 1.74 to 24.74 inches. Height adjustment, tilt, swivel, and articulation make this model suitable when a fixed wall position would not provide the required viewing flexibility. Internal cable management and a gloss black finish also support installations where a clean, professional appearance is important.

Why Choose This Model

The SUA740P combines an ultra-slim profile with practical post-installation adjustment. Its One-Touch tilt mechanism allows the display position to be changed without complicated adjustments, while vertical adjustment lets the installed display be raised or lowered by ½ inch to fine-tune its final placement. The mount supports VESA patterns of 100 x 100, 100 x 200, 200 x 100, and 200 x 200. A 60 lb maximum load capacity accommodates compatible displays within the specified 32- to 43-inch size range. The scratch-resistant gloss black finish and internal cable routing help preserve a neat appearance around the display.

Installation and Integration

This wall-mountable articulating arm requires assembly. The package includes the ultra-slim articulating wall mount, wall and display installation hardware, and installation instructions. Its dedicated mounting-pattern compatibility and VESA support provide clearly defined requirements for matching a display to the mount. Before installation, the display size, weight, and mounting pattern should be checked against the supported specifications. The mount measures 16.14 inches high by 16.38 inches wide and reaches a maximum depth of 24.74 inches. Its approximate product weight is 10.10 lb. Once installed, the ½-inch vertical adjustment provides a way to refine display height without repositioning the entire installation.

Performance Highlights

• Supports one 32- to 43-inch ultra-thin display weighing up to 60 lb.

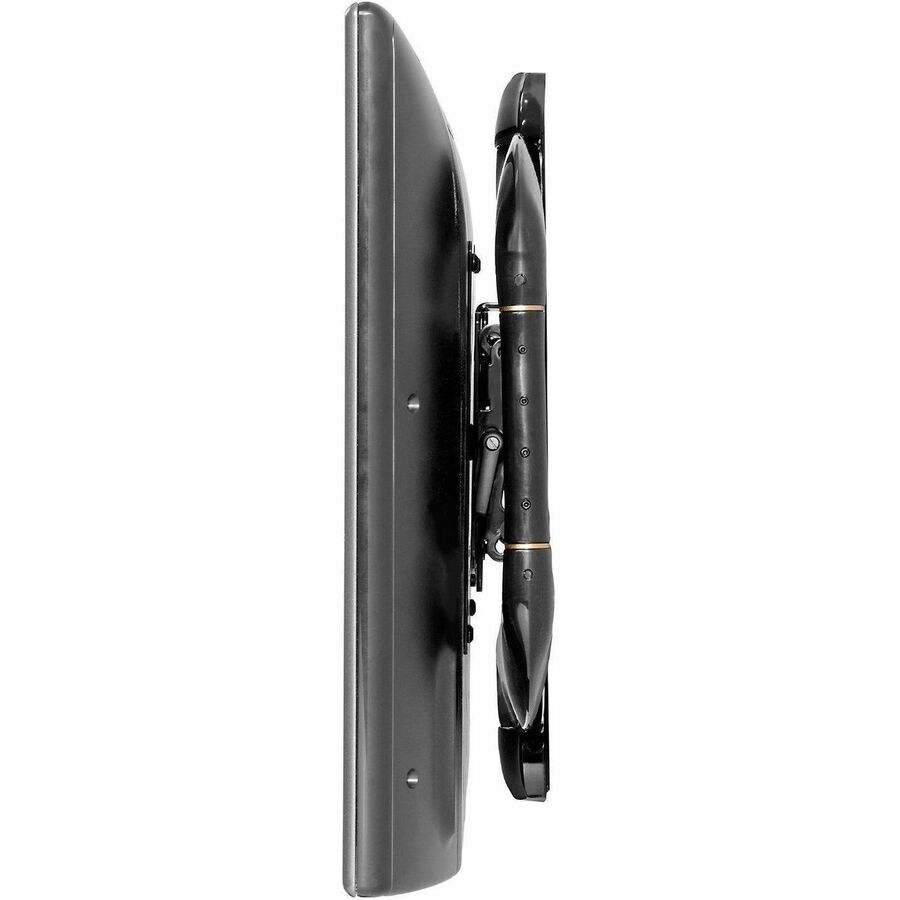

• Adjustable depth from 1.74 to 24.74 inches provides a slim retracted position and extended reach.
• One-Touch tilt mechanism supports effortless display movement for viewing adjustments.

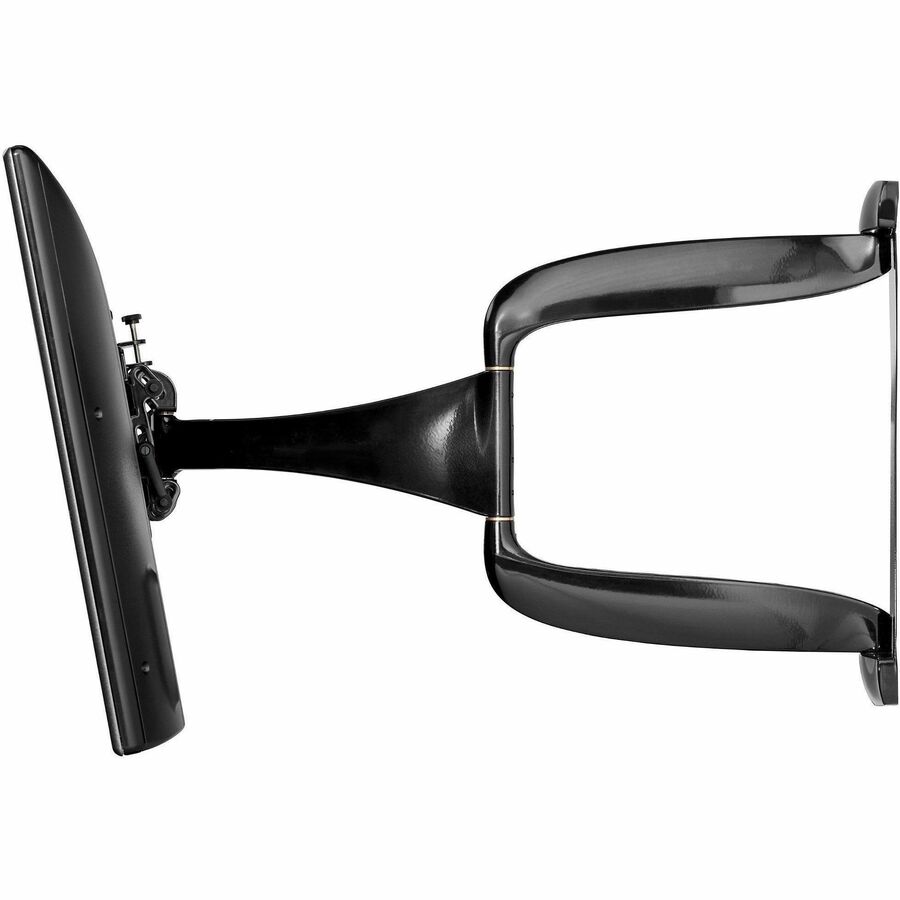

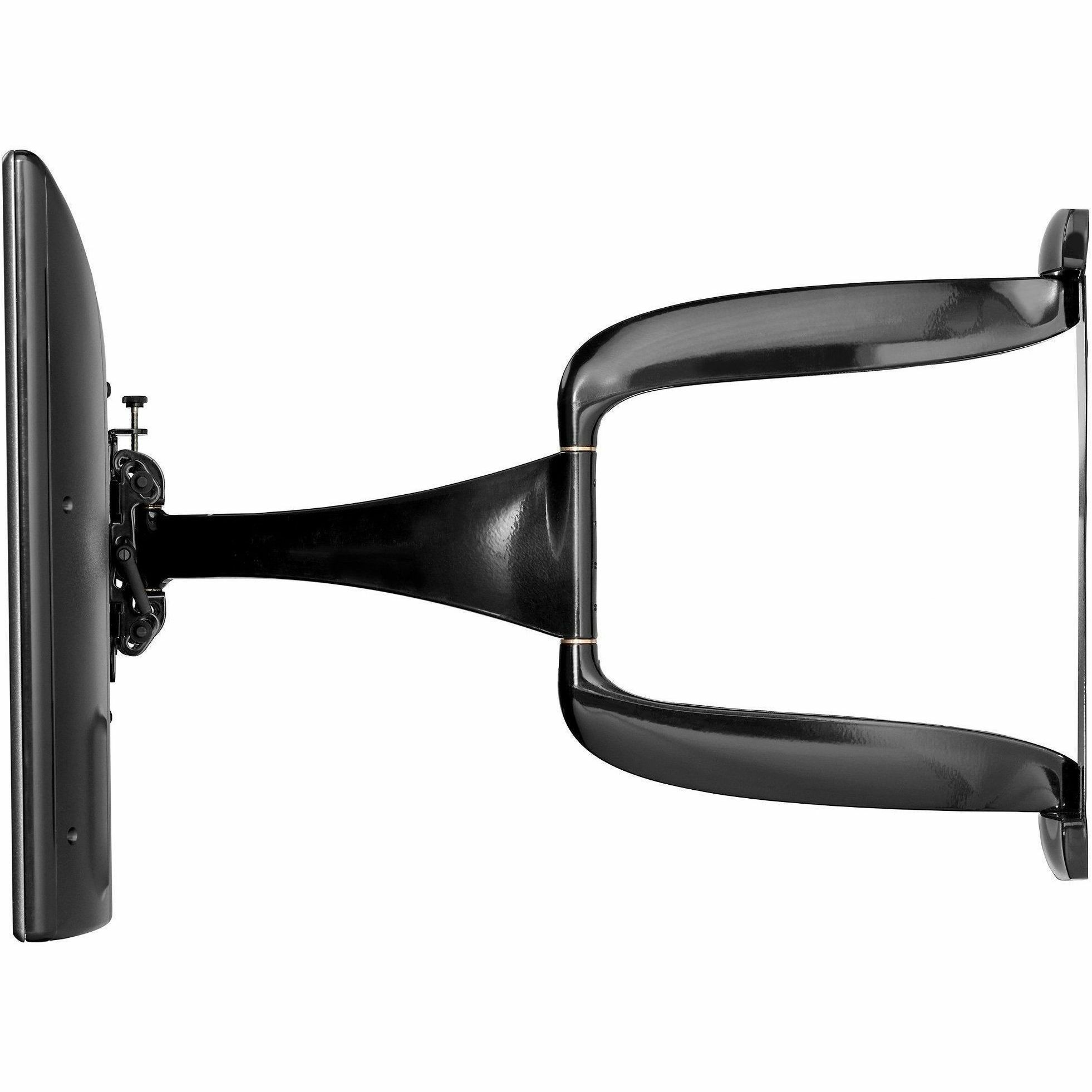

• Maximum tilt angle is 15 degrees, with a specified 90-degree swivel angle.
• Post-installation vertical adjustment allows the display to be raised or lowered by ½ inch.

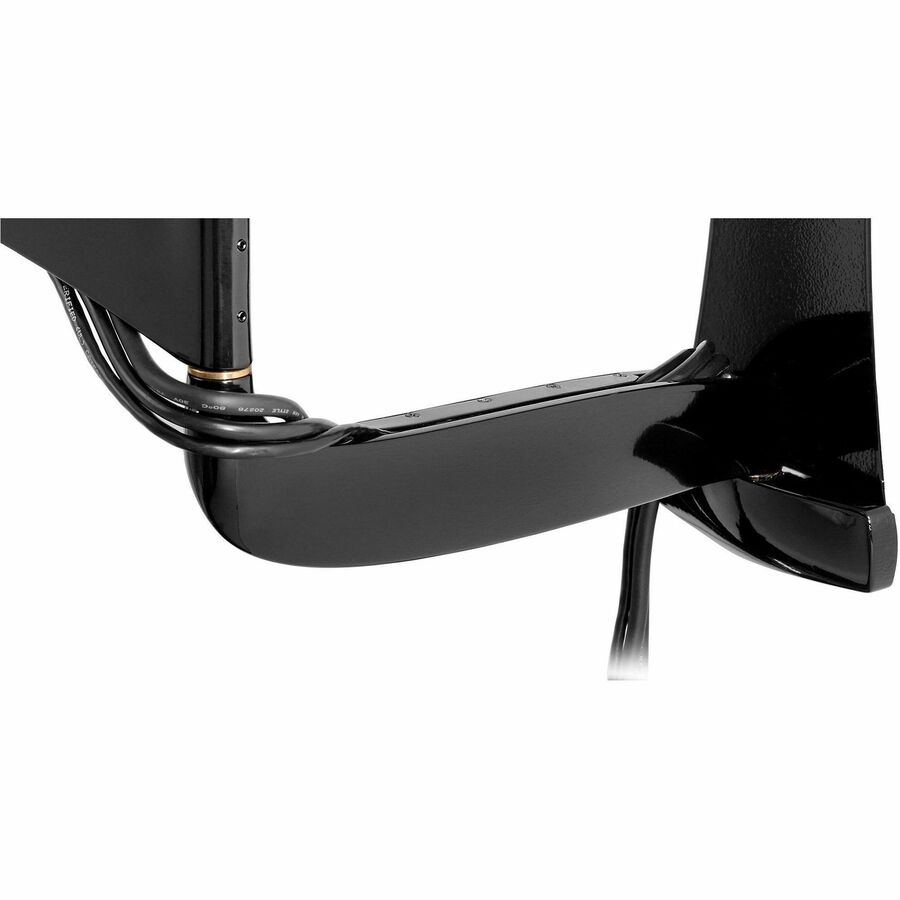

• Internal cable management organizes connected cables within the mounting system.
• Articulating, swivel, tilt, height-adjustment, and wall-mount functions are integrated into one mounting arm.

What Makes It Different

The SUA740P is designed specifically for ultra-thin displays and is described as one of the thinnest wall arm mounts on the market. Its minimum adjustable depth of 1.74 inches reinforces that low-profile design, while its 24.74-inch maximum depth provides substantial positioning range. Unlike a basic fixed mount, it combines articulation with One-Touch tilt, swivel movement, and limited vertical correction after installation. The high-gloss black appearance, fused epoxy finishing, scratch resistance, and internal cable management contribute to a coordinated installation rather than leaving the mounting hardware and cables as visual distractions. The mount is UL Listed and TAA compliant, with RoHS, TAA, VESA, and UL identified among its certifications and standards.

Final Assessment

The Peerless-AV SUA740P is a focused mounting solution for compatible 32- to 43-inch ultra-thin displays. Its 60 lb capacity, four listed VESA patterns, 1.74- to 24.74-inch adjustable depth, and articulating movement provide clear installation parameters and flexible positioning. The One-Touch tilt mechanism and ½-inch post-installation height correction address everyday adjustment needs, while internal cable management and the gloss black, scratch-resistant finish support a clean final presentation. A five-year limited warranty completes the package.
