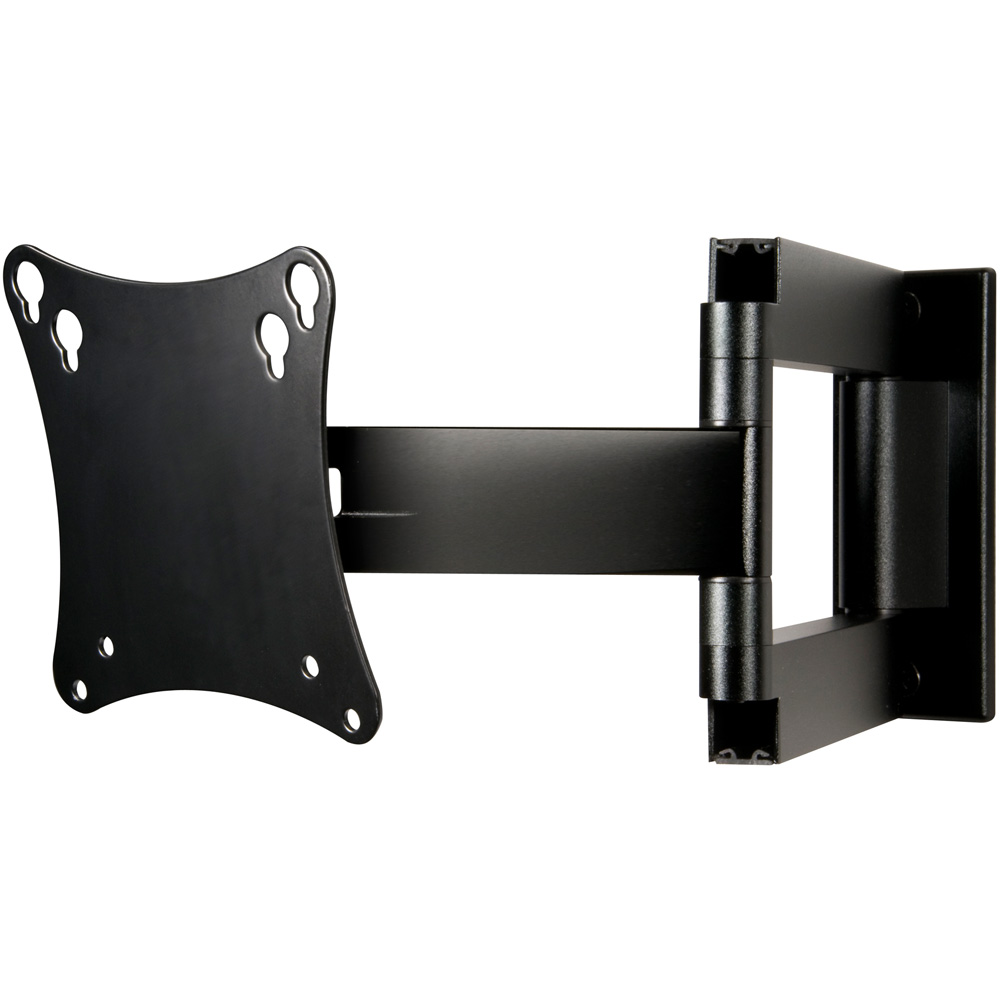

SmartMount Articulating Wall Mount for 10" to 29" Displays

The Peerless-AV SmartMount SA730P is an articulating wall mount designed for displays from 10 to 29 inches and weighing up to 25 lb. Its arm moves the screen from 2.77 inches off the wall to a maximum extension of 16.99 inches, providing a compact retracted position or bringing the display closer when needed. The mount supports landscape and portrait orientation, offers tilt and swivel adjustment, and incorporates cable management within a semi-gloss black, fused-epoxy-finished assembly.

Ideal Use Cases

The SA730P is intended for installations that use a compact display but still require positioning flexibility after mounting. It fits layouts where the display must retract to 2.77 inches from the wall and then extend as far as 16.99 inches for viewing or access. Landscape and portrait support accommodates either screen orientation, while the 25 lb load capacity and 10-to-29-inch screen range clearly define compatible displays. The specified installation format is wall mounting.

Why Choose This Model

This model combines extension, articulation, display orientation flexibility, and cable control in one mount. One-Touch technology provides ±35° of vertical tilt movement, allowing the viewing angle to be adjusted without changing the installation. A 90° swivel specification adds lateral positioning capability. The Hook-and-Hang system is designed so one person can install the display, and integrated cable management protects, contains, and conceals connected cables. A five-year limited warranty supports the completed installation.

Installation and Integration

Assembly is required. The package includes the articulating wall mount, wall and display installation hardware, and installation instructions. The Hook-and-Hang system simplifies the stage in which the display is attached to the mount. The SA730P is VESA mount compatible, with listed 75 x 75 and 100 x 100 mounting patterns and dedicated mounting-pattern compatibility. Before installation, confirm that the display is within the stated screen-size and weight limits and uses a compatible mounting interface. Integrated cable management helps route cables along the mount while preserving its extendable and articulating functions.

Performance Highlights

The arm provides an adjustable depth range from 2.77 to 16.99 inches. This movement allows the display to remain close to the wall when retracted and extend more than 14 inches beyond that position when required. Vertical adjustment is supplied through ±35° One-Touch tilt movement, accompanied by 90° swivel capability. The mount measures 8.06 inches high, 10.01 inches wide, and 16.99 inches deep, with an approximate weight of 3.55 lb. Its construction is listed as anodized aluminum and steel, with a fused epoxy finish and scratch-resistant durability.

What Makes It Different

The SA730P brings several installation-focused features together: single-person display attachment through Hook-and-Hang, tool-free-style viewing adjustment through One-Touch tilt technology, substantial extension, portrait or landscape orientation, and concealed cable routing. Its semi-gloss black finish provides a consistent appearance across the mount assembly. Listed certifications and standards include RoHS, TAA, VESA, UL, and OSHPD. The product is identified as TAA compliant and UL Listed, with environmental compliance under the Restriction of Hazardous Substances directive. Its country of origin is Taiwan.

Final Assessment

The Peerless-AV SmartMount SA730P is a focused mounting solution for 10-to-29-inch displays weighing no more than 25 lb. It is especially relevant when the installation requires a low-profile 2.77-inch retracted position without giving up extension, tilt, swivel, orientation changes, or cable management. The included mounting hardware and instructions support installation, while Hook-and-Hang addresses display attachment. For a compatible VESA display, the combination of ±35° tilt, 90° swivel, 16.99-inch maximum extension, scratch-resistant construction, and a five-year limited warranty provides a clearly specified articulating wall-mount package.
