PULL-OUT SWIVEL MOUNT FOR 32" TO 85" LCD AND PLASMA SCREENS

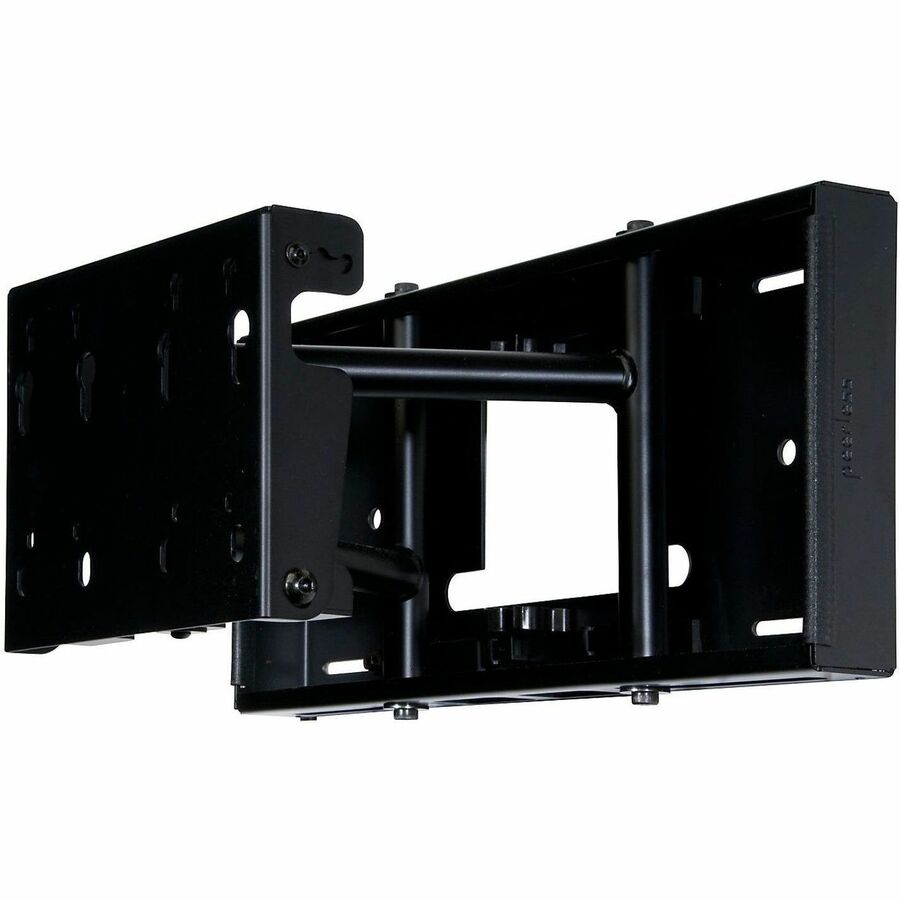

The Peerless-AV SP850 SmartMount pull-out pivot wall mount supports flat-panel displays from 32 to 80 inches weighing up to 150 lb. Its steel construction combines a close-to-wall mounting position with an extending pivot arm, balancing low-profile presentation, rear-panel access, and viewing-angle adjustment. The mount sits 2.31 inches from the wall at its minimum depth, extends to a maximum depth of 10.68 inches, and allows the display to pivot up to 45 degrees.

Ideal Use Cases

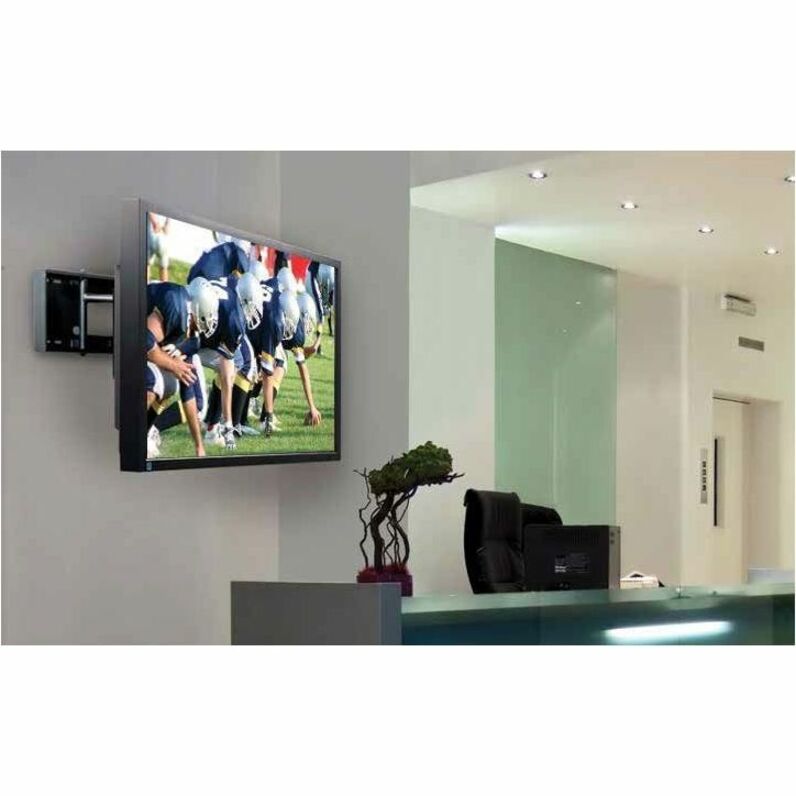

The SP850 is suited to wall-mounted display installations where both a compact closed position and convenient access behind the screen are important. The pull-out arm makes it easier to reach display connections, attached components, and cabling without removing the flat panel from the wall. Its 45-degree pivot capability also supports installations that require the screen to be directed toward a preferred viewing position. Tamper-resistant and theft-resistant features make it applicable where additional physical security is desired.

Why Choose This Model

This model combines characteristics of a flat or tilting wall mount with the movement of a pivot arm. When closed, the display remains only 2.31 inches from the wall. When access or repositioning is needed, the arm smoothly brings the display outward. Built-in cable management helps contain cords and components, supporting a cleaner installation as the mount moves between positions. The 150 lb load capacity accommodates substantial flat-panel displays within the specified 32- to 80-inch size range.

Installation and Integration

The SP850 can be installed on wood-stud, concrete, or cinder-block wall surfaces. It is wall mountable, VESA compatible, and supports 100 x 100 mm and 200 x 100 mm display attachment patterns. Assembly is required. The package includes the wall mount assembly, lock key, installation tool, locking tab, cable management sleeve, and a fastener pack for the listed VESA attachment patterns. A universal adaptor plate is also included with select models. The assembled mount measures 21 inches wide, 9.76 inches high, and 10.68 inches deep, with an approximate weight of 17.60 lb.

Performance Highlights

The mount provides an adjustable depth range from 2.31 to 10.68 inches and up to 45 degrees of pivot. This movement supports viewing-angle adjustment while creating working space behind the display for connection and maintenance access. Sturdy arm construction is designed to guide the display smoothly between its closed and extended positions. The mount carries flat-panel displays up to 150 lb, while its black TGIC polyester powder-coated finish provides a consistent appearance for exposed wall-mount hardware.

What Makes It Different

The defining feature of the SP850 is its combination of a low-profile wall position and pull-out pivot movement. A conventional fixed wall mount can limit access to rear inputs, while this design extends outward without giving up a compact closed depth. The integrated cable-management system works with the movable assembly to keep cords organized. Tamper-resistant and theft-resistant construction, a locking tab, TAA compliance, UL listing, VESA compatibility, and RoHS environmental compliance further distinguish the model.

Final Assessment

The Peerless-AV SP850 is a strong fit for 32- to 80-inch flat-panel displays that require secure wall mounting, up to 150 lb of load support, and greater positioning flexibility than a fixed mount provides. Its 2.31-inch minimum depth preserves a close-to-wall profile, while the 10.68-inch maximum depth and 45-degree pivot improve access and viewing adjustment. Multiple supported wall surfaces, included installation components, cable management, and a five-year limited warranty complete the package.
