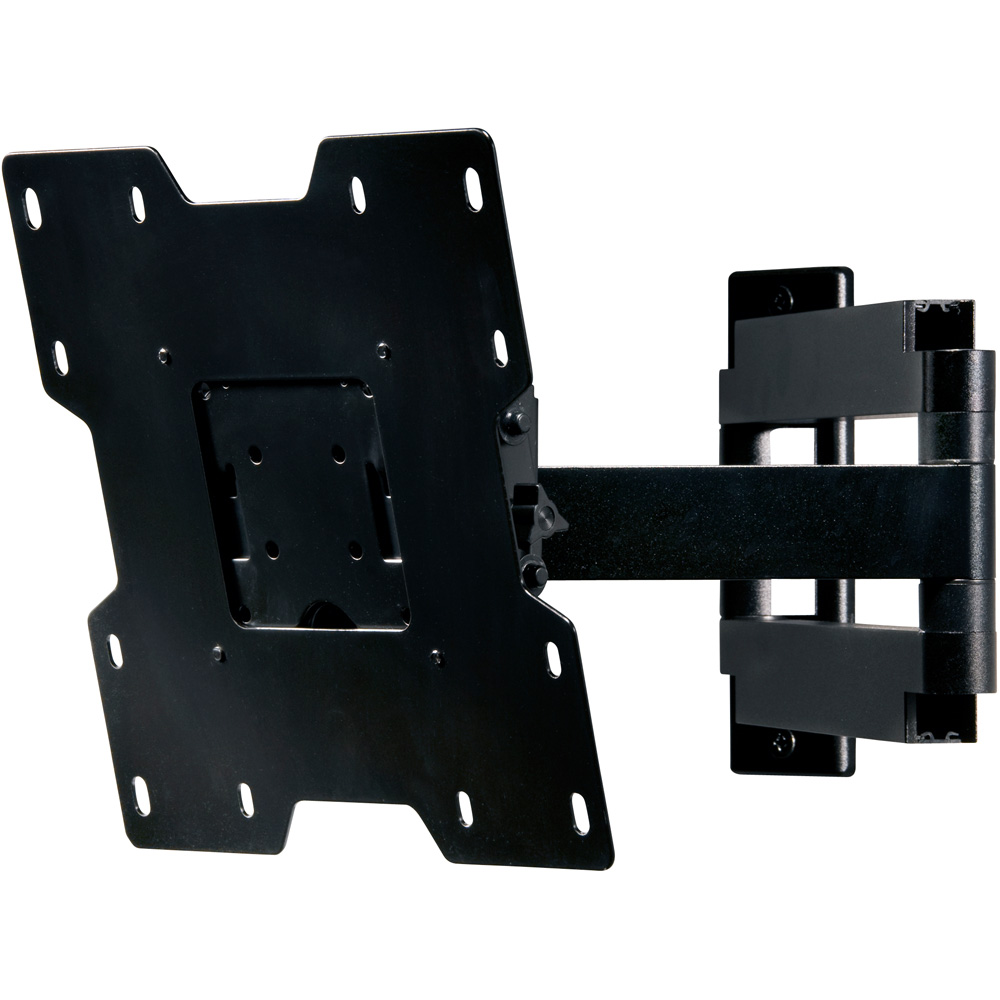

SmartMount Articulating Mount for 22" to 40" TVs and Displays

Ideal Use Cases

The Peerless-AV SmartMount SA740P is an indoor articulating wall mount for displays measuring 22 to 43 inches and weighing up to 80 lb. Its extendable arm, adjustable viewing angles, and landscape or portrait orientation make it suitable for installations where a display must move away from the wall, turn toward the viewer, or sit close to the mounting surface when not extended.

• Indoor display installations requiring adjustable extension, tilt, or swivel
• Landscape or portrait mounting configurations
• Walls constructed with wood studs, concrete, cinder block, or breeze block
• Displays using 100 x 100, 200 x 100, or 200 x 200 VESA mounting patterns

Why Choose This Model

The SA740P combines an 80 lb load capacity with a compact mounting profile and substantial extension. Its adjustable depth ranges from 3.03 to 21.80 inches, allowing the display to remain near the wall or extend outward for a more flexible viewing position. One-Touch tilt technology provides movement from 5 degrees downward to 15 degrees upward, while the specified 90-degree swivel adds horizontal positioning flexibility.

Vertical adjustment supports post-installation leveling, helping correct the display position after it has been attached. The mount also supports both landscape and portrait orientations, giving installers more freedom to match the display configuration to the intended application.

Installation and Integration

The Hook-and-Hang system is designed to let one person install the display. Wall and display installation hardware and installation instructions are included with the mount. Assembly is required.

The wall-mountable design is specified for wood stud, concrete, cinder block, and breeze block applications. It supports dedicated VESA patterns of 100 x 100, 200 x 100, and 200 x 200. Before installation, the display size, weight, mounting pattern, orientation, and wall construction should be checked against these specifications.

Cable management is included among the mount functions, helping route connected cables as the arm extends or retracts. The assembled mount measures 14.32 inches wide by 10.15 inches high, reaches a maximum depth of 21.80 inches, and weighs approximately 7.27 lb.

Performance Highlights

• Supports 22- to 43-inch displays weighing up to 80 lb
• Adjustable depth from 3.03 to 21.80 inches
• One-Touch vertical tilt from 5 degrees downward to 15 degrees upward
• Specified swivel angle of 90 degrees
• Post-installation vertical adjustment for leveling
• Landscape and portrait orientation support
• Extendable wall-mount design with cable management

The combination of extension, tilt, swivel, and height adjustment provides several ways to refine display placement after mounting. The arm can extend to 21.80 inches for repositioning and retract toward the wall when less extension is needed.

What Makes It Different

The SA740P brings several installation and adjustment functions into a single articulating mount. Hook-and-Hang installation support addresses display attachment, while vertical adjustment assists with leveling after installation. One-Touch tilt, extendable positioning, swivel movement, and cable management provide additional control over the completed setup.

The mount is made from anodized aluminum and steel and finished in semi-gloss black with fused epoxy. It is identified as scratch resistant and is listed as RoHS, TAA, VESA, UL, and OSHPD certified or compliant. The product is TAA compliant and manufactured in Taiwan.

Final Assessment

The SmartMount SA740P is a practical choice for compatible indoor displays that require more positioning freedom than a fixed wall mount provides. It supports displays from 22 to 43 inches, carries up to 80 lb, extends as far as 21.80 inches, and accommodates three common VESA patterns. Its leveling adjustment, Hook-and-Hang system, tilt, swivel, landscape or portrait support, and included installation hardware create a well-defined mounting package backed by a five-year limited warranty.
