Outdoor Articulating Wall Mount for 32"-80" Flat Panel Displays

Ideal Use Cases

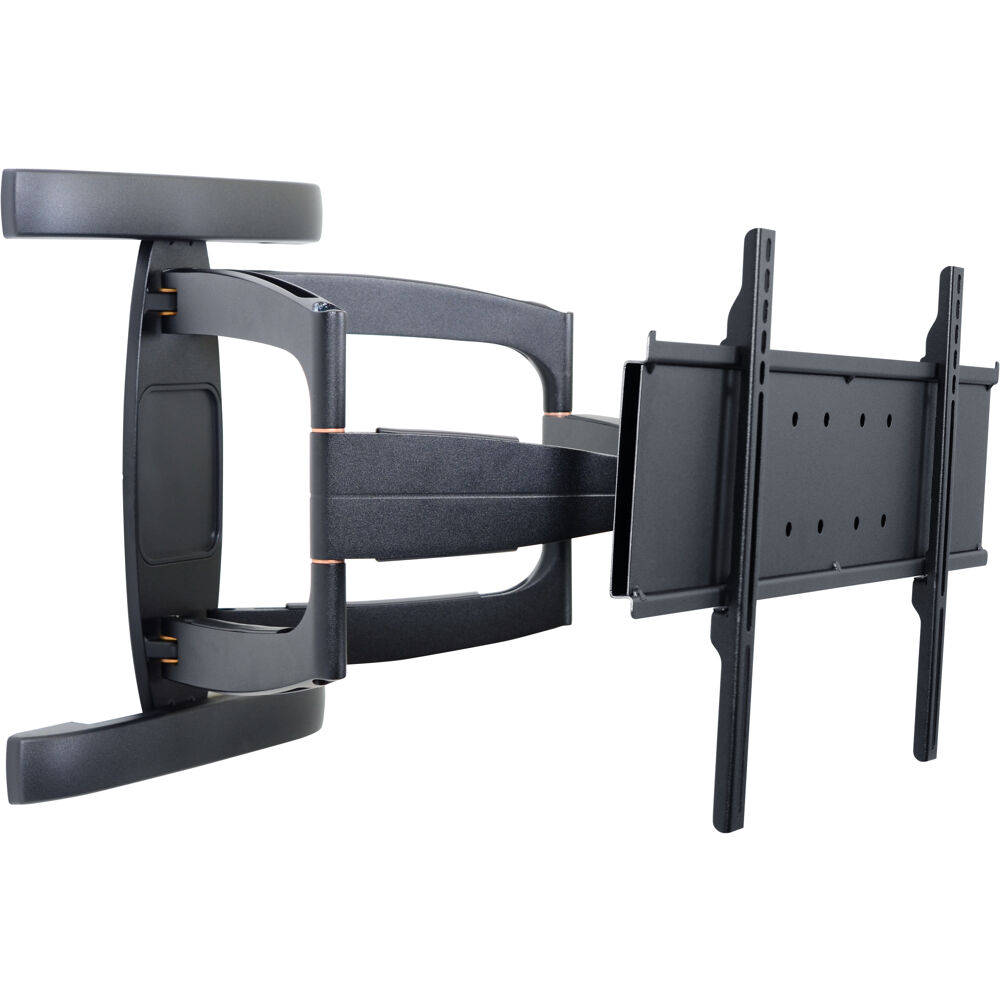

The Peerless-AV ESA763PU is an articulating wall mount for 32-inch to 86-inch indoor or outdoor displays weighing up to 200 lb. Its protective anti-corrosive e-coating is designed to resist damaging temperature-related and outdoor corrosive elements, making the mount suitable for installations exposed to weather or persistent humidity.

Recommended applications include patios, decks, sunrooms, locker rooms, bathrooms, car washes, indoor pools, and water parks. The listed application surfaces also include wood, concrete, and cinder block. This combination of indoor and outdoor suitability makes the ESA763PU useful when a standard indoor display mount does not provide the specified weather, temperature, and corrosion resistance.

Why Choose This Model

The ESA763PU combines a 200 lb maximum load capacity with articulating, tilt, swivel, and cable-management functions. Its adjustable depth ranges from 4.44 inches to 27.94 inches, allowing a display to remain relatively close to the wall or extend outward when access and positioning require it. The listed maximum swivel angle is 90 degrees, while the minimum tilt angle is 5 degrees.

Universal mount-pattern compatibility and VESA compatibility support a broad installation range. The listed mounting pattern is 730 x 405, with a minimum mounting pattern of 100 x 100. These specifications should be compared with the selected display’s mounting interface and weight before installation.

Installation and Integration

This wall-mountable model measures 30.75 inches wide, 19.92 inches high, and 27.94 inches deep. Its approximate weight is 36.70 lb. Assembly is required, and the package contains the outdoor articulating wall mount and mounting hardware. Cable management is included among the mount functions, helping organize connected display cables as the mount extends, tilts, or swivels.

The ESA763PU is listed for indoor and outdoor use and is associated with wood, concrete, and cinder-block applications. Installers should verify the wall structure, display weight, mounting pattern, and selected hardware before assembly. The mount is also specifically listed as compatible with Peerless UV492, UV552, UV652, UV862, XHB432, XHB492, XHB552, and XHB5541 displays.

Performance Highlights

• Supports displays from 32 inches through 86 inches.
• Handles a maximum display load of 200 lb.
• Adjusts from 4.44 inches to 27.94 inches in depth.
• Provides articulating, tilt, swivel, and cable-management functions.
• Features universal mount-pattern compatibility and VESA compatibility.
• Uses a protective anti-corrosive e-coating for demanding indoor and outdoor locations.

The black mount has a powder-coated and electro-coated finish. Its listed durability characteristics include damage resistance, weather resistance, and temperature resistance. These attributes directly address installations where changing conditions, humidity, or outdoor corrosive elements are concerns.

What Makes It Different

The distinguishing feature of the ESA763PU is its combination of articulation and environmental durability. It is not limited to fixed outdoor placement: the mount can extend, tilt, and swivel while supporting displays weighing up to 200 lb. This allows installers to use an adjustable mounting format in patios, decks, pool areas, wash environments, bathrooms, and other listed locations where exposure resistance matters.

The model is UL listed, TAA compliant, and identified with RoHS, TAA, VESA, and UL certifications and standards. Its environmental compliance is listed under the Restriction of Hazardous Substances. The mount is manufactured by Peerless Industries, Inc. and has a listed country of origin of the United States.

Final Assessment

The Peerless-AV ESA763PU is suited to installations requiring a high-capacity articulating mount for a 32-inch to 86-inch display in an indoor, outdoor, or humid environment. Its 200 lb capacity, 4.44-inch to 27.94-inch adjustable depth, universal VESA-compatible mounting interface, cable management, and anti-corrosive coating provide a clearly defined set of capabilities for professional display mounting. A five-year limited warranty accompanies the model.
