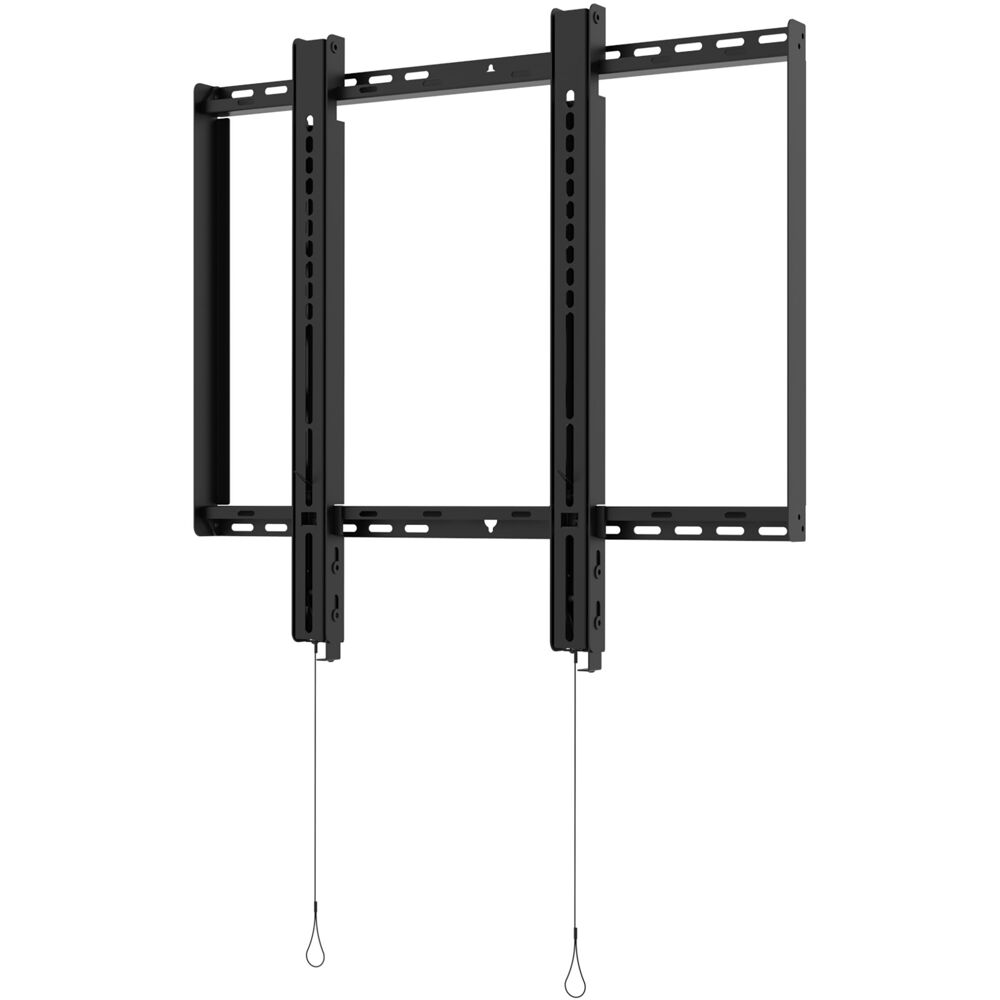

Outdoor Flat Wall Mount for XHB652 and UV862

Ideal Use Cases

The Peerless-AV ESF686 is designed exclusively for mounting one outdoor TV or display on a wall. It supports screens from 65 to 86 inches and a maximum load of 200 lb, making it suitable for the Peerless-AV XHB652 and UV862 outdoor displays. Both landscape and portrait orientations are supported, allowing the mount to accommodate different content and installation requirements.

Listed applications include patios, entryways, restaurants, stadiums, retail spaces, and bars. Its outdoor construction, flat mounting format, and security-focused access system make it especially relevant where a display will remain installed in an exposed or publicly accessible location.

Why Choose This Model

The ESF686 combines a heavy-gauge steel structure with a corrosion-resistant, black powder-coated finish. Stainless steel mounting hardware complements the steel frame, while the weatherproof material selection addresses the demands of outdoor installation. The assembled mount measures 31.08 inches wide, 29.53 inches high, and 2.29 inches deep.

Security and serviceability are integrated into the design. Pull-cord functionality is secured with security screws, limiting access to people equipped with the appropriate tool. Integrated hooks allow the pull cords to be concealed behind the display after installation. The mount is also identified as theft resistant and is backed by a five-year limited warranty.

Installation and Integration

The universal mounting system supports a minimum mounting pattern of 200 x 100 mm and a maximum listed mounting pattern of 700 x 610 mm. VESA compatibility is specified up to 700 x 600 mm, with an overall universal mounting area of 27.6 inches wide by 24 inches high. These pattern specifications provide a clear basis for confirming compatibility before installation.

Pull cords and a kickstand are included to simplify installation and provide access during display servicing. Once work is complete, the pull cords can be placed on the integrated hooks behind the display. Assembly is required, and the supplied security fasteners support the mount’s controlled-access design.

The package contains one outdoor flat wall mount, mounting hardware, security fasteners, a kickstand, and a pull cord. The mount is wall-mountable and intended for a wall surface.

Performance Highlights

The ESF686 supports one display weighing up to 200 lb across its specified 65- to 86-inch screen range. Its flat mounting function works in either landscape or portrait orientation. The mount itself weighs approximately 15.80 lb and uses steel as its primary construction material, with stainless steel hardware.

Outdoor-focused attributes include corrosion resistance, weatherproof construction, and a powder-coated finish. The model is TAA compliant and lists RoHS, TAA, and VESA among its certifications and standards. Its stated environmental compliance is the Restriction of Hazardous Substances directive.

What Makes It Different

This model brings its structural, installation, and access features together in a mount designed specifically for outdoor TVs and displays. Heavy-gauge steel provides the main structure, while the corrosion-resistant coating and stainless steel hardware address outdoor exposure. Compatibility with the Peerless-AV UV862 and XHB652 further defines its intended role.

The kickstand, pull-cord release system, integrated cord hooks, and security screws are practical differentiators within that role. The kickstand and pull cords assist with installation and servicing, while the hooks keep the cords concealed. Security screws prevent the release function from being accessed without the proper tool.

Final Assessment

The Peerless-AV ESF686 is a purpose-built outdoor flat wall mount for one 65- to 86-inch display weighing no more than 200 lb. It combines universal and VESA mounting compatibility with landscape or portrait positioning, weatherproof steel construction, stainless steel hardware, and controlled service access. For XHB652 or UV862 installations, it offers documented compatibility and a five-year limited warranty in a 2.29-inch-deep wall-mountable format.
