SmartMount Supreme Full Service Video Wall Mount - w/ Quick Release

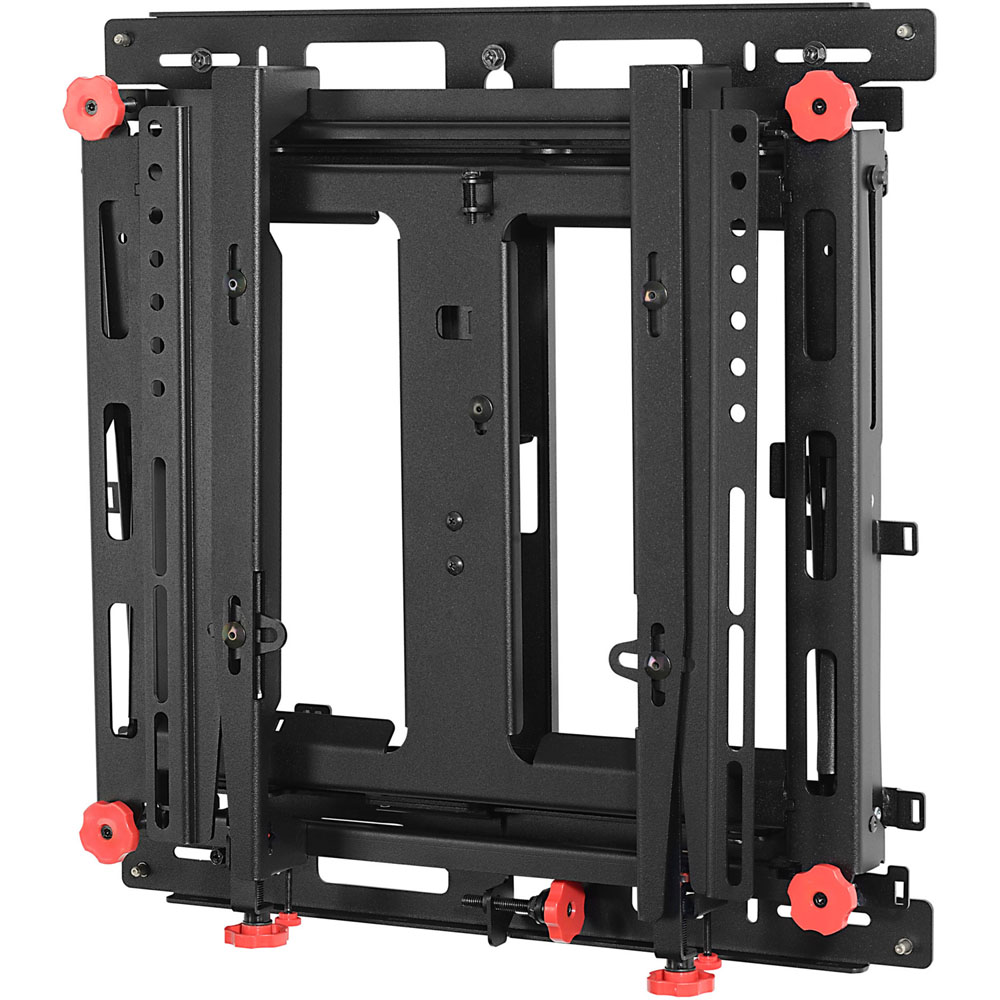

The Peerless-AV SmartMount Supreme DS-VW775-QR is a full-service video wall mount designed for one 46-inch to 60-inch display weighing up to 125 lb. Its quick-release pop-out mechanism provides convenient maintenance access, while tool-less lateral micro-adjustment delivers 1.5 inches of fine-tuning on each of the X, Y, and Z axes. The mount supports landscape and portrait configurations, making it adaptable to different indoor video wall layouts.

Ideal Use Cases

This model is intended for indoor video walls that require accurate display positioning and ready access for maintenance. It is suitable when each display must be individually supported and aligned within a multi-display configuration. The quick-release mechanism allows a selected display to be extended with a gentle press, helping technicians reach the mounted display when service is required. Reusable spacers accommodate both landscape and portrait applications, supporting consistent installation across either orientation.

Why Choose This Model

The DS-VW775-QR combines alignment controls, service access, and substantial display support in one wall-mountable assembly. Its defining feature is 1.5 inches of adjustment along all three axes, providing the fine control needed to position displays within a video wall. Tool-less lateral micro-adjustment further simplifies alignment work. The mount supports displays from 46 inches through 60 inches and carries a maximum load of 125 lb. Its black, textured powder-coated finish provides a neutral appearance behind the installed display.

Installation and Integration

The mount supports one display and can be installed in either landscape or portrait orientation. It is VESA mount compatible and supports 200 x 200, 300 x 200, 300 x 300, 400 x 300, 400 x 400, and 600 x 400 mounting patterns. Its mount-pattern compatibility type is dedicated, and assembly is required. The package includes the Supreme Full Service Video Wall Mount, adaptor rails, and mounting hardware.

For installation planning, the mount measures 21.25 inches wide, 21.46 inches high, and 14.56 inches deep. Its adjustable depth ranges from 3.10 inches to 14.50 inches, allowing the assembly to remain closer to the wall or extend outward for access. The mount itself weighs approximately 34.20 lb and is specified for indoor wall mounting.

Performance Highlights

Alignment and serviceability are central to the DS-VW775-QR design. The X-, Y-, and Z-axis adjustment range lets installers fine-tune display positioning by as much as 1.5 inches on each axis. When maintenance is necessary, a gentle press activates the release mechanism so the display can be quickly extended. This combination supports both initial alignment and ongoing access within a video wall configuration.

• Supports one 46-inch to 60-inch display
• Maximum load capacity of 125 lb
• 1.5-inch fine adjustment on the X, Y, and Z axes
• Quick-release pop-out access for maintenance
• Landscape and portrait orientation support
• Adjustable depth from 3.10 inches to 14.50 inches

What Makes It Different

The Supreme model distinguishes itself through the combination of full-service access and multi-axis micro-adjustment. Rather than providing only fixed display support, it incorporates a press-to-release mechanism for extending an individual display and tool-less adjustment for precise positioning. Reusable spacers can be applied in landscape or portrait configurations. The mount is also identified as tamper resistant and theft resistant. It is TAA compliant, UL listed, VESA compatible, and compliant with the Restriction of Hazardous Substances requirements.

Final Assessment

The Peerless-AV DS-VW775-QR is a focused mounting solution for indoor video walls using 46-inch to 60-inch displays. Its 125 lb capacity, six listed VESA patterns, dual-orientation support, and three-axis fine adjustment provide clearly defined installation capabilities. The quick-release service mechanism and adjustable depth address ongoing maintenance access, while the supplied adaptor rails and mounting hardware provide the core components required for assembly.
