Universal Flat Wall Mount for use with Microsoft Surface Hub

Ideal Use Cases

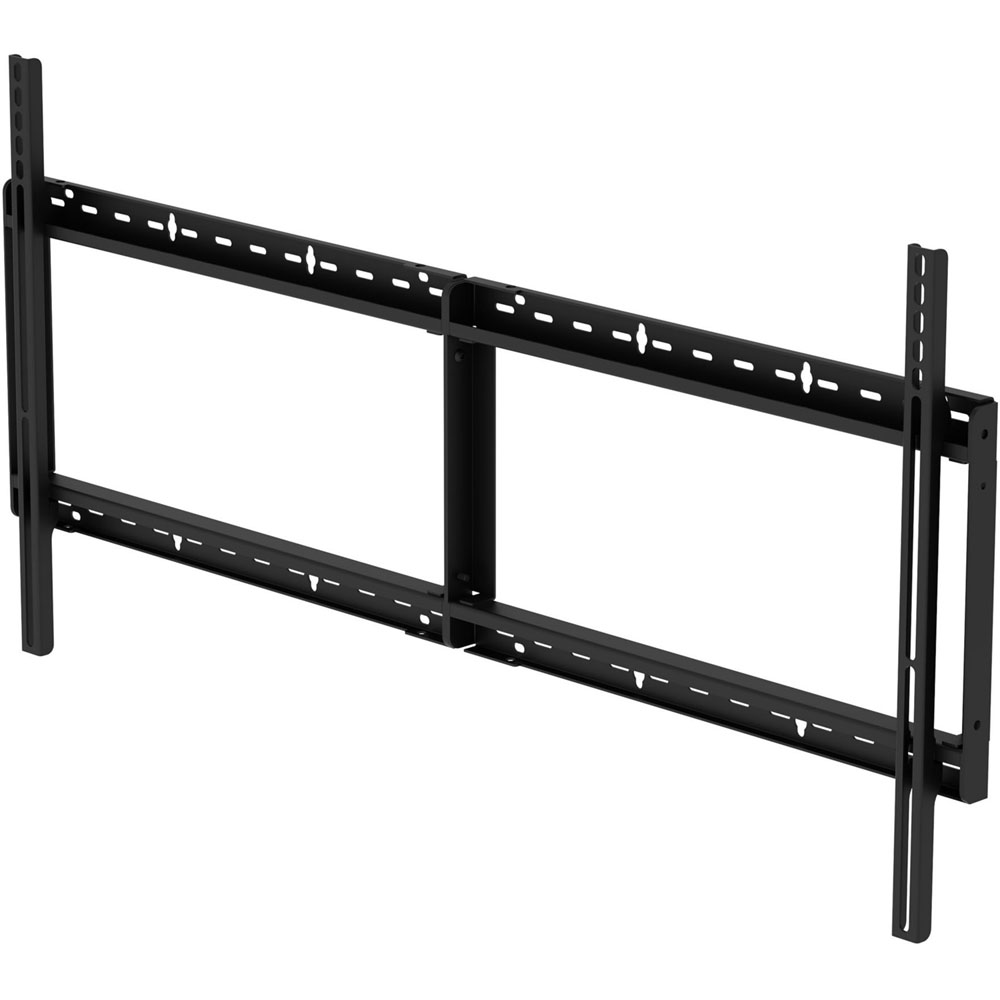

The Peerless-AV SmartMount SF680-HUB is designed specifically to provide a stable wall-mounted foundation for 55-inch and 84-inch Microsoft Surface Hub displays. It supports one display with a maximum load capacity of 350 lb, making it suitable for indoor Surface Hub installations that require a dedicated, low-profile mounting solution. Compatible mounting surfaces include wood stud, concrete, and cinder block walls. Its black finish and 2.13-inch depth keep the mounting structure close to the wall while accommodating the large display formats specified for the Surface Hub.

Why Choose This Model

This model combines broad mounting-location flexibility with hardware intended for demanding display installations. The wall plate provides mounting locations for 16-inch, 20-inch, 24-inch, 32-inch, 40-inch, and 48-inch stud centers, helping installers center the display across a range of wall constructions. The mount is VESA compatible, with a listed 1200 x 600 mounting pattern and a minimum mounting pattern of 100 x 100. Anti-theft security hardware is included to help deter tampering and theft. The scratch-resistant, powder-coated fused epoxy finish supports durability in indoor environments.

Installation and Integration

The SF680-HUB uses Peerless-AV’s Hook-and-Hang™ system, which allows the display to be installed by one person. Its open wall plate design maintains access to the wall behind the display, expanding the available options for electrical connections and cable management. Wall and display installation hardware is supplied, along with installation instructions and anti-theft security hardware. Assembly is required. The mount measures 51.15 inches wide, 24.87 inches high, and 2.13 inches deep. Installers should match the included mounting provisions to the applicable wall surface and the specified Microsoft Surface Hub model.

Performance Highlights

The mount supports a single display weighing up to 350 lb and covers the specified 55-inch-to-84-inch screen range. Its low-profile wall-mountable form factor positions the installation within a depth of 2.13 inches. Cable-management functionality and the open plate layout allow routing and connection work to remain accessible during integration. Support for multiple stud-center positions gives the installer several placement choices without changing the mount’s intended flat-wall configuration. The product is listed as scratch resistant and uses a black powder-coated fused epoxy finish.

What Makes It Different

Unlike a general-purpose display bracket, the SF680-HUB is identified specifically for Microsoft Surface Hub installations and is compatible with both the 55-inch and 84-inch models. Its combination of a 350 lb load rating, multiple stud-center mounting locations, open wall access, security hardware, and the Hook-and-Hang installation system addresses the physical and integration requirements described for these displays. The mount is TAA compliant and UL listed, with RoHS, TAA, VESA, and UL included among its certifications and standards. Peerless-AV also provides a five-year limited warranty.

Final Assessment

The SmartMount SF680-HUB is a purpose-built indoor flat wall mount for organizations installing a compatible Microsoft Surface Hub. Its strongest practical advantages are its support for both specified Surface Hub sizes, 350 lb load capacity, flexible stud-center placement, low-profile construction, and accessible cable-routing area. Included installation and security hardware consolidate the core mounting components into one package. For installations requiring a black, VESA-compatible mount for wood stud, concrete, or cinder block walls, the SF680-HUB provides a clearly documented fit.
