Tile Wall Mount

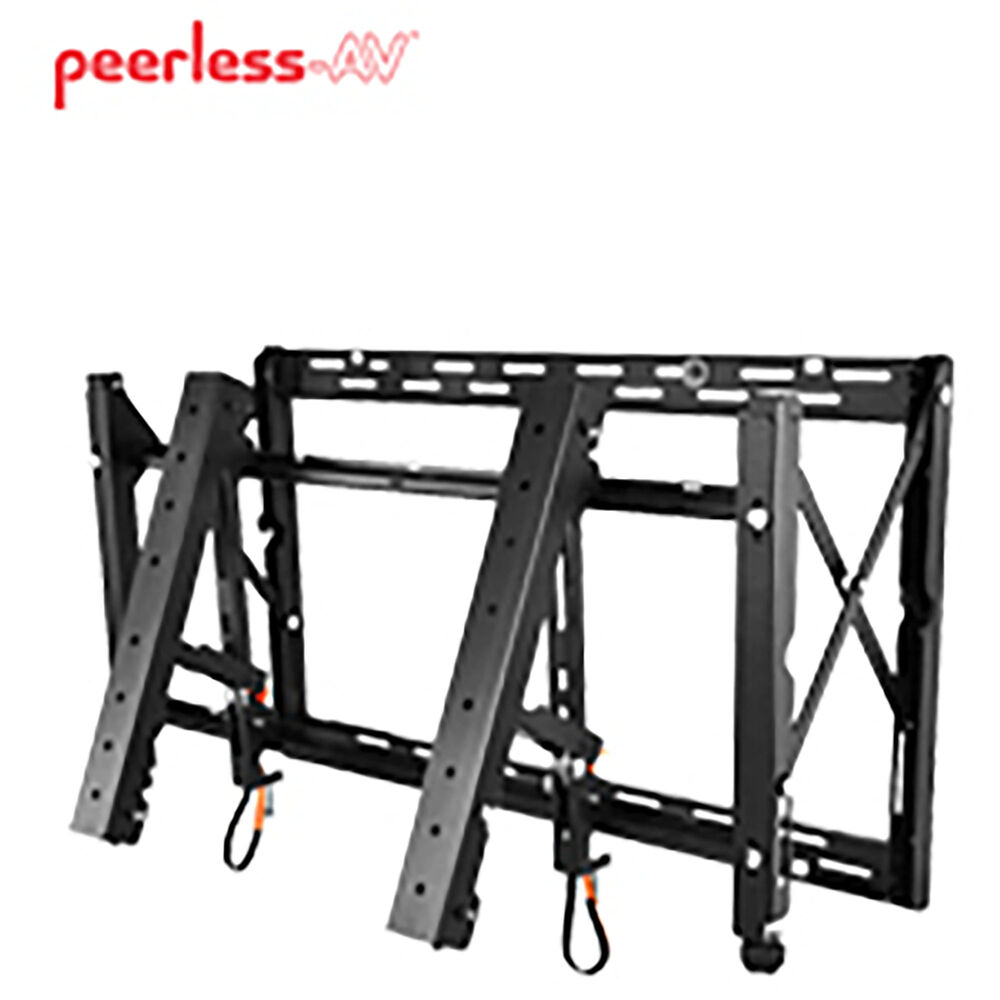

The Peerless-AV SmartMount DS-VW765-LAND is a full-service wall mount designed for one landscape-oriented video wall display from 40 to 65 inches. It supports up to 125 lb and combines a manual pop-out format with easy display access and no-tool-required micro-adjustments. A universal, VESA-compatible mounting range from 100 x 100 to 700 x 400 supports the listed display sizes, while the adjustable depth runs from 3 to 3.83 inches. The black steel mount has a scratch-resistant finish and is intended for wall-mounted video wall applications where installation, adjustment, and ongoing serviceability are priorities.

Ideal Use Cases

This model fits video wall projects using 40- to 65-inch displays in landscape orientation. Each mount supports one display and can serve as an individual mounting element within the required video wall configuration. Its full-service construction is especially useful when a display must remain accessible after installation. The 125 lb load capacity covers compatible displays within the stated size range, subject to the display meeting the mount’s weight and mounting-pattern requirements.

Why Choose This Model

The DS-VW765-LAND is designed to make video wall installation and maintenance more manageable. Custom wall plate spacers reduce the need for tedious configuration calculations, while no-tool-required micro-adjustments allow the display position to be refined without additional tools. The manual pop-out design provides access to an installed display for servicing. These features directly address recurring video wall tasks: configuring the mounting arrangement, positioning individual displays, and reaching equipment after the wall has been assembled.

Its universal mounting-pattern compatibility also gives installers a defined range from 100 x 100 through 700 x 400. VESA compatibility, a 125 lb capacity, and support for 40- to 65-inch displays provide clear parameters for selecting a compatible display.

Installation and Integration

The mount is wall mountable and requires assembly. The package includes the full-service video wall mount, wall mount assembly, mounting attachment rails, and fasteners. Its listed dimensions are 35 inches wide, 20 inches high, and 3.83 inches deep, with an approximate weight of 33 lb. Adjustable depth spans 3 to 3.83 inches, allowing the installed position to remain within a compact stated range.

The mount installs in landscape orientation and uses a universal VESA-compatible pattern. Its steel construction and black finish suit a video wall installation without introducing a separate visible color. The product is manufactured in the United States and is listed as TAA compliant and UL listed. Listed certifications and standards include RoHS, TAA, VESA, UL, and OSHPD.

Performance Highlights

• Supports one landscape-oriented video wall display.
• Compatible with displays from 40 to 65 inches.
• Maximum supported load capacity of 125 lb.
• Universal mounting patterns from 100 x 100 to 700 x 400.
• VESA mount compatible.
• Manual pop-out format for access to the installed display.
• No-tool-required micro-adjustments for display positioning.
• Adjustable depth from 3 to 3.83 inches.
• Black steel construction with listed scratch resistance.

The combination of load capacity, display-size support, mounting-pattern range, and adjustment features defines this model’s role in a video wall system. Its specifications focus on physical display support and service access rather than electronic processing or connectivity.

What Makes It Different

The distinguishing feature is the full-service approach. The display can be accessed through the manual pop-out design, reducing the difficulty of reaching an individual display after installation. No-tool micro-adjustments address positioning without requiring a separate tool step, and the custom wall plate spacer concept assists with configuration work. Together, these features support quicker installation and more direct maintenance than a fixed-access mounting format would provide.

The mount also combines a broad universal mounting-pattern range with documented VESA compatibility, steel construction, a 125 lb capacity, and a five-year limited warranty. Environmental compliance is listed under the Restriction of Hazardous Substances standard.

Final Assessment

The Peerless-AV SmartMount DS-VW765-LAND is a focused choice for mounting one 40- to 65-inch landscape display within a video wall configuration. Its 125 lb capacity, universal 100 x 100 to 700 x 400 mounting range, manual pop-out access, custom wall plate spacers, and no-tool micro-adjustments are its central advantages. For installations that match its display size, load, orientation, and VESA requirements, it provides a service-oriented mounting platform backed by a five-year limited warranty.
